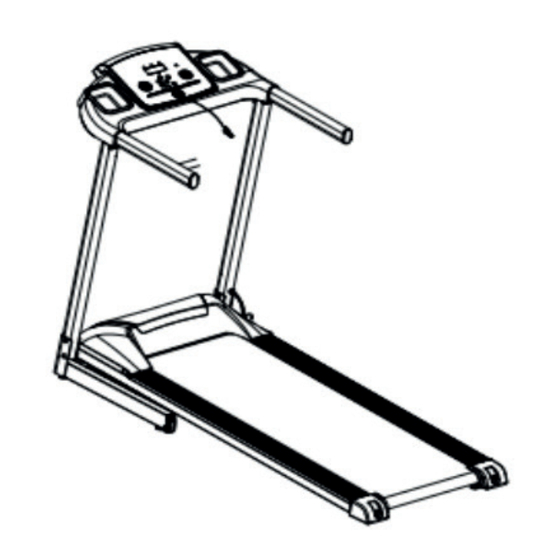

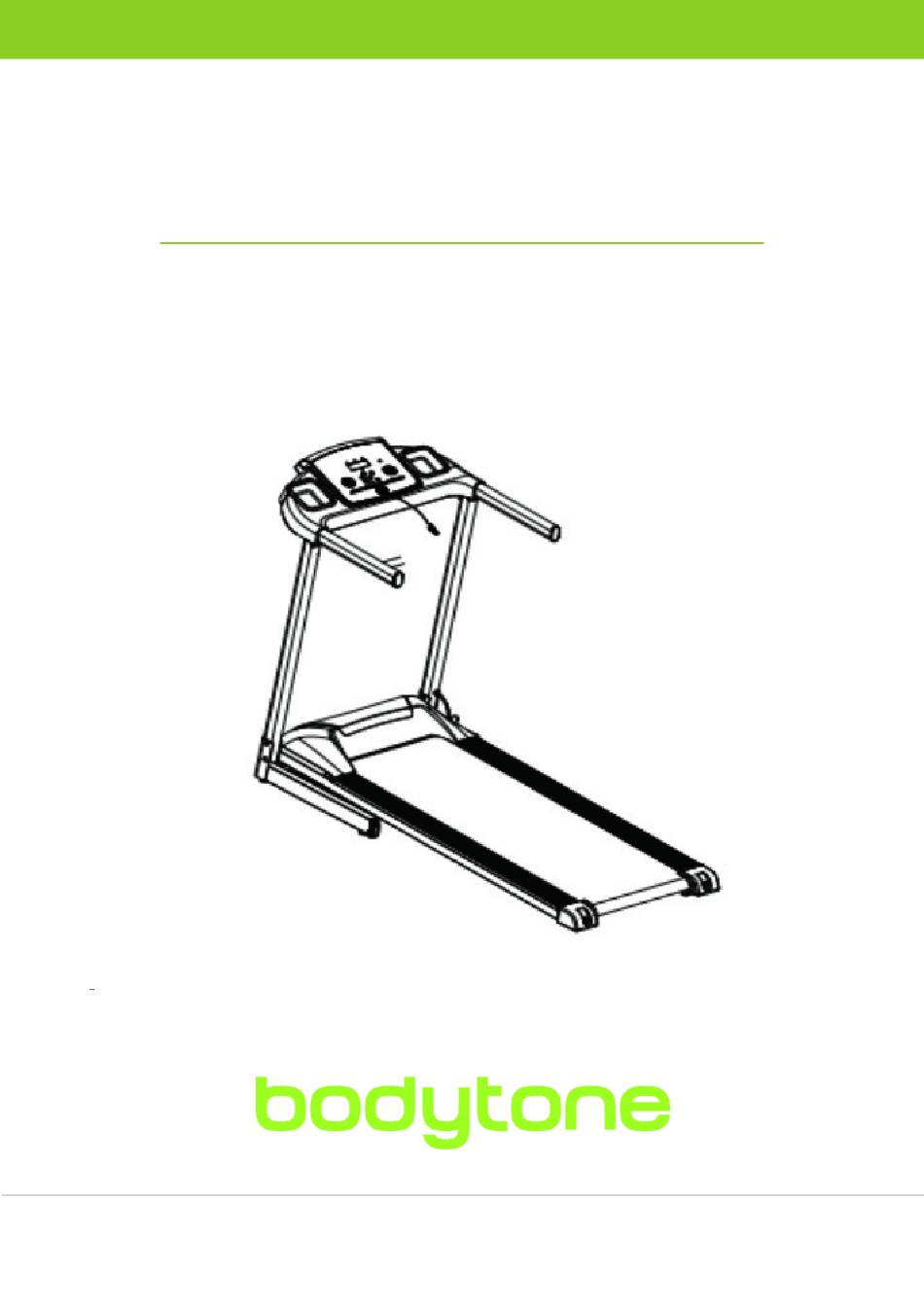

- Page 1 USER MANUAL ACTIVE RUN 200 CONNECT...
- Page 2 CONTENT 1. Product Introduction 2. Security Considerations 3. Installation Steps 4. Sports Tips and Guiding Principle 5. Product Instructions 6. Product Maintenance WARNING Read this manual before using the equipment.
- Page 3 Name of the Product Motorized Treadmill Number of the Model Active Run 200 Connect Console Safety Key Vertical Treadmill Nº Technical Parameters Career Area 1200 x 400 mm Expand Size 1632 x 665 x 1147 mm Voltage/Frequency AC220V (50~60 Hz) Speed 0.8 -12 Km/h...
- Page 4 Items Number List Internal hexagonal nut Horizontal pipe 6mm M8x50 upward Internal hexagonal nut Reparation of 6mm M8x40 U pipes Internal hexagonal nut Fixed Upright 6mm SM8x65 U-shaped tube cap Handrail cover 5mm/6mm inner hexagon wrench Multifunctional screwdriver 13# 15# Opening key 30ml 8x65 functional support...
- Page 5 2. SAFETY NOTICES AND WARNINGS NOTICE: Please read the instruction book carefully before use and note the following safety issues. 1. The treadmill is suitable for placing in the room to avoid moisture. It cannot be splashed by water and cannot avoid any foreign material. 2.
- Page 6 6. Power must be turned off before moving the treadmill. 7. Non-professionals are not allowed to disassemble the machine, otherwise serious results may occur. 8. This treadmill can only be used on the 20 amp circuit. 9. When the machine starts, only one person can exercise on it. 10.
- Page 7 18. During the exercise process, if you feel pain, such as waist pain, leg and foot numbness, dizziness, heartbeat that is different from normal times, or abnormal tightness, please stop using it immediately and consult to your doctor. 19. Do not allow children to use this product and keep them away from the product. If not observed, there may be a risk of injury.
- Page 8 16. Do not remove or insert the plug with wet hands. Otherwise, it may cause electric shock or injury. 17. Pull out the plug from the socket when not in use. Otherwise, dust and moisture will degrade the insulation and increase the chances of electrical leaks and fires.. GROUNDING INSTRUMENT This product must be grounded.
- Page 9 3. INSTALLATION STEPS When installing, first simply fix all the screws to the frame and stand it upright. STEP 1 Lift the vertical supports of the tape and fix it with 2 M8*40 screws with 2 M8 nuts and 4 M8*20 screws. One on each side of the ribbon as shown in the picture.
- Page 10 4. PRE-EXERCISE TIPS HEATING Please warm up for 5 to 10 minutes before using this machine each time. BREATHING When you exercise, you cannot hold your breath, you usually inhale with your nose when trying to perform actions and exhale with your mouth. Inhalation must be coordinated with exhalation.
- Page 11 STRETCHING EXERCISE 1. DOWNWARD STRETCH: Bend your knees slightly and slowly bend your body downward. Relax your back and shoulders, touch your legs and toes as closely as possible with your hands. Hold for 10 to 15 seconds and then relax.
- Page 12 5. PRODUCT INSTRUCTION CONSOLE SPEED: Sounded 0.8-12.0 KM/H. The LCD screen will display the numbers 3,2,1 and then the treadmill will start. Settings and data are displayed on the LCD screen. TIME Manual model: Setting time from 0 to 100 minutes or "end" is displayed on the LCD screen.
- Page 13 'START' KEY: Start the treadmill whenever the power and secure grip of the key compete. 'STOP' KEY: Pressing it later. STOP the running treadmill. SPEED: '+' this sign to increase speed. '-' this sign indicates that the speed will decrease. If you press it over 0.5 continue with the + or - sign, the speed will automatically increase or decrease.
- Page 14 6. PRODUCT MAINTENANCE Correct lubrication of the treadmill with silicone oil or Teflon is very important. It should be done regularly depending on each person, even before its first use. LUBRICANT: The running belt should be lubricated with specially configured methyl silicone oil after use for a period of time.
- Page 15 3. Running belt tension adjustment All treadmill belts must be adjusted before leaving the factory and after installation; However, after a period of use, they may become loose. For example: when users are running, pause and slip may occur, if that happens, please adjust the belt and bolts synchronously from left and right side clockwise and with semicircle as unit;...
- Page 16 7. FREQUENTLY ASKED QUESTIONS Fault Code Principal Reason Solution The cable from the 1. Check that the connection computer to the lower cable between the computer control board was not and the control board is connected properly securely connected. 2. Make sure the IC on the control board is inserted well.
