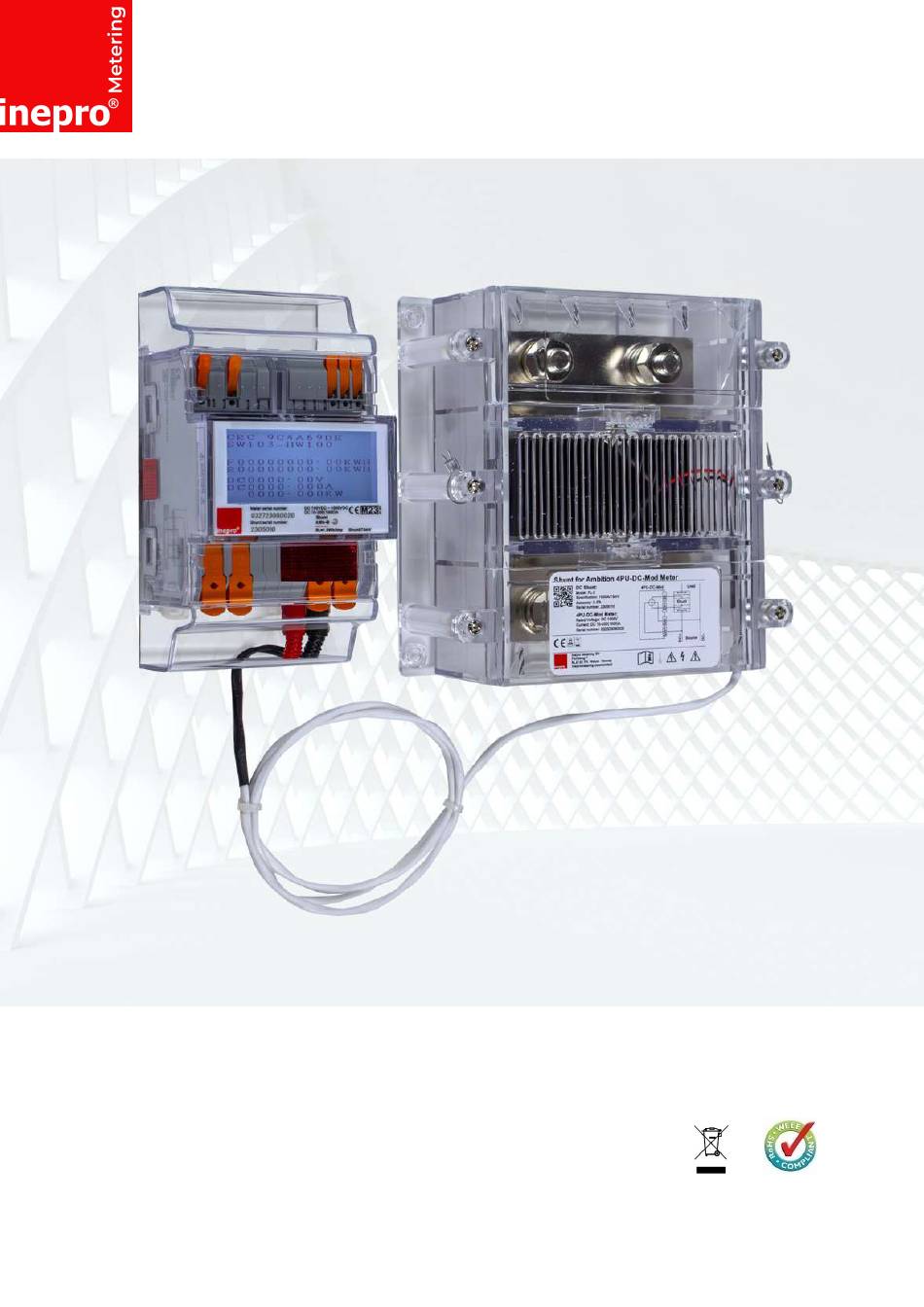

- Page 1 User manual – Ambition 4PU-DC-Mod Ambition 4PU-DC-Mod Meter 1000VDC/1000A User manual | Versie 1.4 © 2024 inepro Metering B.V. All rights reserved...
- Page 2 6.4 LCD DISPLAY OF THE METER 6.5 E RROR CODE 7 MODBUS RS485 REGISTER MAP Subject to change without notice inepro Metering | Pondweg 7 | 2153 PK Nieuw-Vennep | The Netherlands | +31 (0)252 744044 | info@ineprometering.com | www.ineprometering.com...
- Page 3 Metering BV. Any duplication is a violation of the law and subject to criminal and civil penalties. All rights reserved, particularly for pending or approved patent awards or registered trademarks. Subject to change without notice inepro Metering | Pondweg 7 | 2153 PK Nieuw-Vennep | The Netherlands | +31 (0)252 744044 | info@ineprometering.com | www.ineprometering.com...
- Page 4 Therefore, NEVER open an energy meter or break the seal of the device. The limited warranty is 3 years after production date. Subject to change without notice inepro Metering | Pondweg 7 | 2153 PK Nieuw-Vennep | The Netherlands | +31 (0)252 744044 | info@ineprometering.com | www.ineprometering.com...
- Page 5 User Manual Ambition 4PU-DC-Mod Version 1.4 3 Certificates Subject to change without notice inepro Metering | Pondweg 7 | 2153 PK Nieuw-Vennep | The Netherlands | +31 (0)252 744044 | info@ineprometering.com | www.ineprometering.com...
- Page 6 Height without protection cover 92 mm Height 140 mm Width 72 mm Depth 63 mm Weight 260 gr Subject to change without notice inepro Metering | Pondweg 7 | 2153 PK Nieuw-Vennep | The Netherlands | +31 (0)252 744044 | info@ineprometering.com | www.ineprometering.com...
- Page 7 Shunt connection is used for current measurement. The shunt will be delivered with the meter. Do not disconnect the shunt from the meter. The meter and shunt are a set. Subject to change without notice inepro Metering | Pondweg 7 | 2153 PK Nieuw-Vennep | The Netherlands | +31 (0)252 744044 | info@ineprometering.com | www.ineprometering.com...
- Page 8 The temperature rises when passing the rated current, not more than 120℃. Attachment: FL-2 1000A/75mV schematic diagram Subject to change without notice inepro Metering | Pondweg 7 | 2153 PK Nieuw-Vennep | The Netherlands | +31 (0)252 744044 | info@ineprometering.com | www.ineprometering.com...
- Page 9 User Manual Ambition 4PU-DC-Mod Version 1.4 Subject to change without notice inepro Metering | Pondweg 7 | 2153 PK Nieuw-Vennep | The Netherlands | +31 (0)252 744044 | info@ineprometering.com | www.ineprometering.com...
- Page 10 Total forward kWh & total reverse kWh Bottom indicates: Indicate the DC voltage, current & power Subject to change without notice inepro Metering | Pondweg 7 | 2153 PK Nieuw-Vennep | The Netherlands | +31 (0)252 744044 | info@ineprometering.com | www.ineprometering.com...
- Page 11 The error code value is a 16bit bitfield value, during faultless operation the error code should have value 0000. Error definitions: 0001 = firmware CRC error Subject to change without notice inepro Metering | Pondweg 7 | 2153 PK Nieuw-Vennep | The Netherlands | +31 (0)252 744044 | info@ineprometering.com | www.ineprometering.com...
- Page 12 Parity 0001 03 - Odd Command 01 10 4011 0001 02 0002 (new Parity: None) Subject to change without notice inepro Metering | Pondweg 7 | 2153 PK Nieuw-Vennep | The Netherlands | +31 (0)252 744044 | info@ineprometering.com | www.ineprometering.com...
