STREET AERO S-RDA-LED-02-E1 Installation Manual

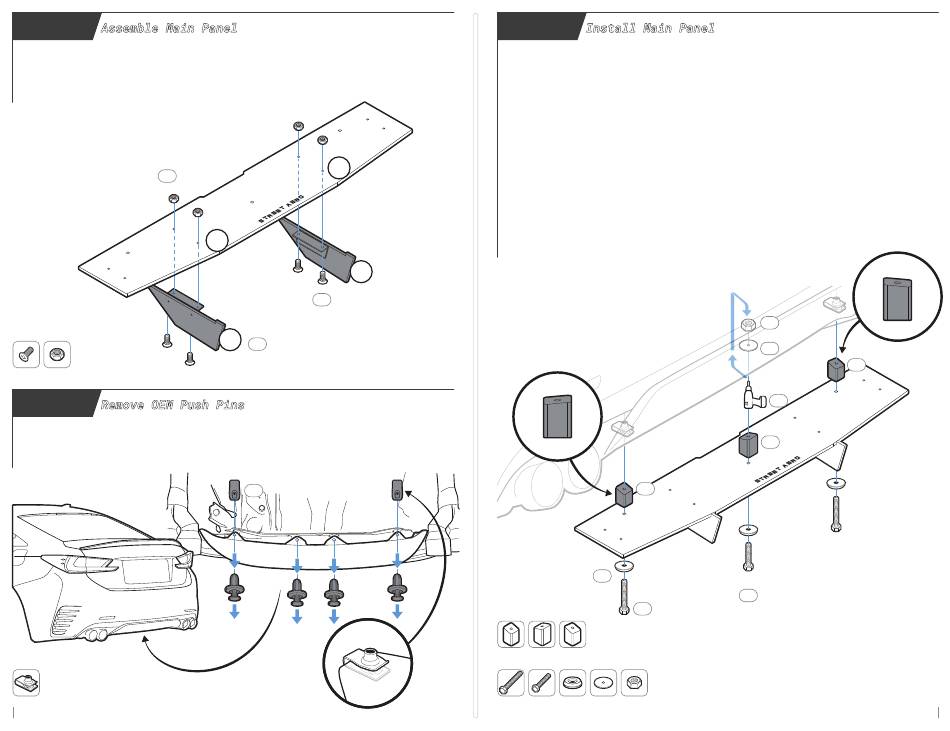

STEP: 1
Carefully place Fin 1 and Fin 2 onto the Main Panel
(Match the number on the Fin to the number on the Main Panel)
Secure with Black Bolt and Black Nut
Black Nut
x4
Black Bolt Black Nut
STEP: 2
Remove the Push Pins located under the bumper near the center
Place Threaded Clip inside the bumper on the outer push pin holes
Threaded
Clip
1
2
1
2
Black Bolt
x4
e1
Main Fin V4
1
x2
Threaded
Clip
x2
Threaded Clip
STEP: 3
Align the assembled Main Panel to the bumper by placing Mounting Bracket LS-7 and LS-9
to its mounting position
NOTE: Insert procided M6 70mm Bolt through the Main Panel and Mounting Bracket and into the Threaded Clip
from STEP:2 to get the alignment
NOTE: DO NOT screw bolt into Threaded Clip you will need to remove the Main Panel to pre-drill the center
mounting location
Mark and pre-drill through the bumper where Mounting Bracket LS-8 will be mounted to
NOTE: Main Panel and mounting Bracket may need to be removed before pre-drilling
Re-align and mount the Main Panel to the bumper by securing Mounting Bracket LS-7 and
LS-9 with M6 70mm Bolt, Finishing Washer to the Threaded Clip
Place Mounting Bracket LS-8 back to its mounting location and secure it to the Main
Panel and bumper with M6 55mm Bolt, Finishing Washer, Washer, and Nut
NOTE: Reach under the bumper to place Washer and Nut inside the bumper
LS-7
LS-7
x1
Finishing
Washer
x3
M6
70mm Bolt
x2
LS-7 LS-8 LS-9
M6 M6 Finishing
Washer Nut
70mm Bolt 55mm Bolt Washer
Nut
x1
Washer
x1 LS-9
LS-9
x1
Pre-Drill
x1
LS-8
x1
M6
70mm Bolt
M6
55mm Bolt
x1
