STREET AERO S-SSA-FRD-012-CD-S75.5-S Installation Manual

STEP: 1

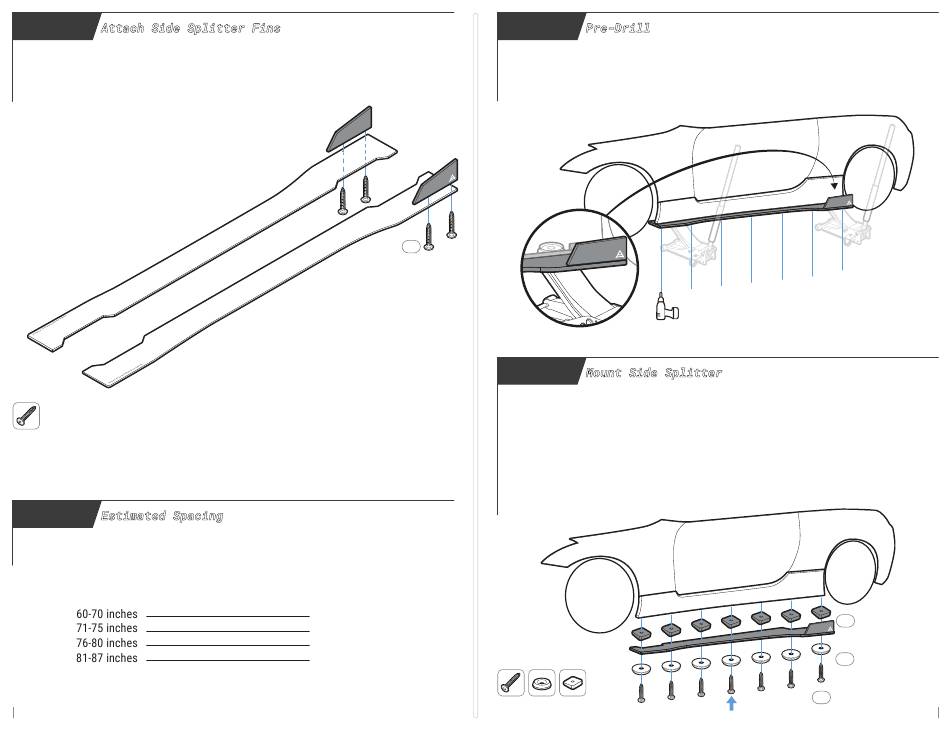

Carefully place Side Splitter Fin onto the Side Splitter
(Logo should face outwards)
Secure with Black Screw
Black
Screw
DIAGRAM
Use Diagram chart below for the recommended spacing of the screws/bolts
NOTE: Spacing may differ based on your side skirt
Side Splitter Size
1
Black
Screw
x4
Estimated Spacing
8 inches
8.5 inches
9.25 inches
9.8 inches
STEP: 2
Align the Side Splitter to a desired location
Pre-drill the side skirt and Side Splitter with 3/32" or smaller bit size
NOTE: Keep the Side Splitter as leveled as possible while drilling
Pre drill holes
approximately spaced apart
STEP: 3
Align Mounting Bracket S-3 on top of the Side Splitter where the drilled holes are
Secure the Side Splitter to the side skirt with provided Finishing Washer and Screw/Bolt
NOTE: Insert the Screw/Bolt through the Finishing Washer, Side Splitter, and Mounting Bracket S-3
NOTE: Align Mounting Bracket S-3 before Screwing into the Side Skirt
Use extra hardware if needed
Repeat for the other side
Finishing
Screw S-3
Washer
S-3
x16
Finishing
Washer
x16
Screw
x16
Start Mounting Here
