STREET AERO S-RDA-SUB-01-E1 Installation Manual

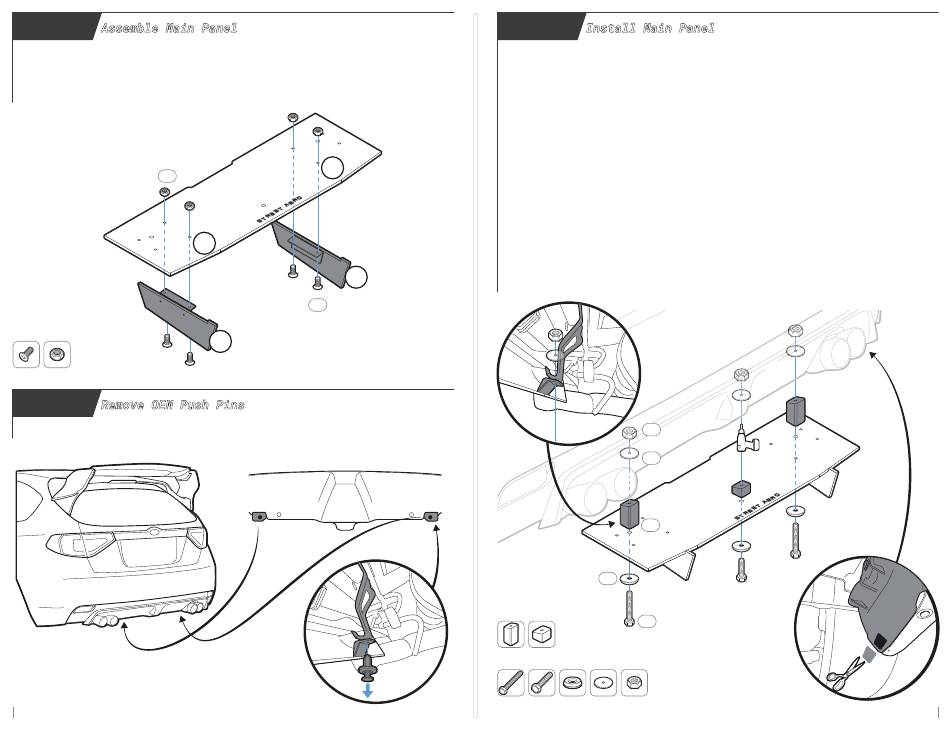

STEP: 1
Carefully place Fin 1 and Fin 2 onto the Main Panel
(Match the number on the Fin to the number on the Main Panel)
Secure with Black Bolt and Black Nut
Black Nut
x4
Black Bolt Black Nut
STEP: 2
Remove the Push Pins located under the bumper near the exhaust
1
2
1
2
Black Bolt
x4
1
OEM Push Pins
STEP: 3
Use the OEM holes from STEP:2 to align the Main Panel and Mounting Bracket SU-7 to
the bumper
When the Main Panel is aligned place Mounting Bracket SU-8 to its mounting location
then mark and pre-drill where it will be mounted to the bumper
NOTE: Use the hole on top of SU-8 to mark the drill location
NOTE: Mounting Bracket and Main Panel may need to be removed before pre-drilling
Mount the Main Panel by Securing Mounting Bracket SU-7 with M6 70mm Bolt, Finishing
Washer, Washer and Nut
NOTE: Reach under the bumper to place the Washer and Nut inside the bumper ontop of the OEM hole from STEP:2
Place Mounting Bracket SU-8 back to its mounting location and secure it to the Main
Panel and bumper with M6 40mm Bolt, Finishing Washer, Washer, and Nut
NOTE: Reach under the bumper to place the Washer and Nut inside the bumper
Remove or Cut a small section out of the Splash Guard located on the Left and Right Side
of the bumper (this will allow you to reach inside the bumper to mount the Side Panel)
Nut
x3
Washer
SU-7 OEM Mounting
x3
SU-7
x2
Finishing
Washer
x3
M6
70mm Bolt
SU-7 SU-8
x2
M6 M6 Finishing
Washer Nut
70mm Bolt 40mm Bolt Washer
SU-7
Pre-Drill
SU-8
M6
70mm Bolt
M6
40mm Bolt
Remove/Cut Splash Guard
2
