STREET AERO S-RDA-SUB-02-E1 Installation Manual

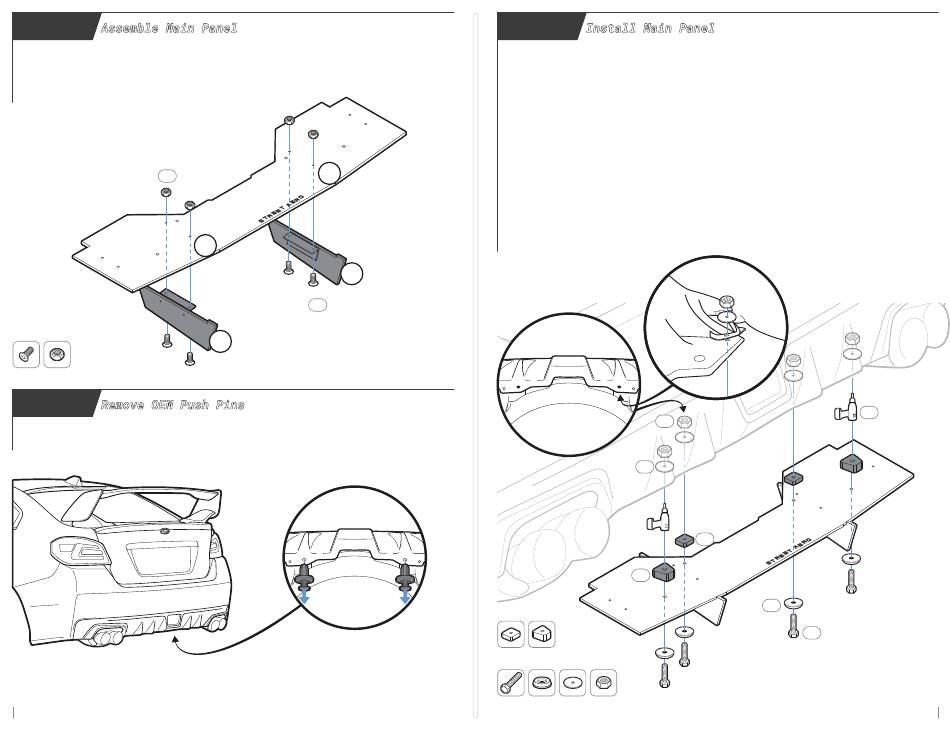

STEP: 1
Carefully place Fin 1 and Fin 2 onto the Main Panel
(Match the number on the Fin to the number on the Main Panel)
Secure with Black Bolt and Black Nut
Black Nut
x4
Black Bolt Black Nut
STEP: 2
Remove the Push Pins located under the bumper near the exhaust
NOTE: We also recommend removing the Splash Guard to get access behind the bumper
1
2
1
2
Black Bolt
x4
1
Remove
OEM Push Pins
STEP: 3
Align the Main Panel to the bumper by placing the M6 40mm Bolt through Mounting Bracket
SU-1 and into the OEM Mounting Hole from STEP:2
When the Main Panel is aligned and centered to the bumper mark and pre-drill where
Mounting Bracket SU-2 will be mounted to the bumper
NOTE: Use the hole on the Main Panel to find the mounting location for Mounting Bracket SU-2
NOTE: Main Panel may need to be removed before pre-drilling
Mount the Main Panel to the bumper by securing Mounting Bracket SU-1 to the OEM
mounting location with M6 40mm Bolt, Finishing Washer, Washer, and Nut
NOTE: Reach under the bumper to place the Washer and Nut inside the bumper ontop of the OEM hole from STEP:2
Continue mounting the Main Panel by securing Mounting Bracket SU-2 to the mounting
location with M6 40mm Bolt, Finishing Washer, Washer, and Nut
NOTE: Reach under the bumper to place the Washer and Nut inside the bumper
Nut
x4
Washer
OEM Mounting
x4
SU-2
x2
SU-1 SU-2
M6 Finishing
Washer Nut
40mm Bolt Washer
Pre-Drill
Inside Bumper
x2
SU-1 SU-2
SU-1
x2
Finishing
Washer
x4
M6
40mm Bolt
x4
2
