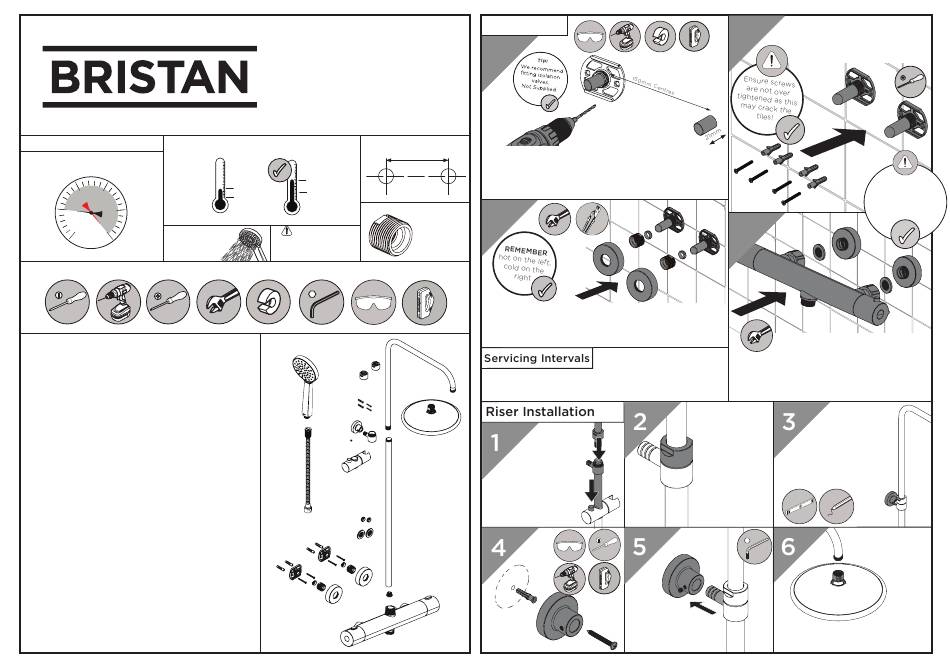

Bristan ZING2 ZI SHXDIVSMFF C Installation Instructions & User Manual

Specifications
Cold Water Supply
Working Pressures
Min: 1.0 bar Max: 5.0 bar
2.0 3.0
1.0 4.0
Min: 5°C Max: 25°C
0 5.0
Pressure
Factory pre-set
BAR
38°C
Maximum Static Pressure: 10.0 bar
Tools You'll Need
Flat Head Screwdriver Drill Cross Head Screwdriver
Prior to Installation
All products manufactured and supplied by Bristan are safe to use
provided that they are installed, operated and receive regular
maintenance in accordance with these instructions.
This product needs to be installed in accordance with, and meet the
requirements of the Water Supply (Water Fittings) Regulations 1999
and current by-laws. For full Installation Requirements & Notes (IRN)
please visit wras.co.uk/directory.
Isolation valves must be fitted to the inlet water supplies to ensure ease
of future maintenance. Before installing this product the water supply
must be thoroughly flushed in order to remove any swarf, solder etc.
Full access must be made available for future maintenance/
servicing purposes.
Before drilling into walls, check that there are no hidden electrical
wires, cables or water supply pipes. This can be checked with the
aid of an electronic detector.
If power tools are used do not forget to:
- Wear eye protection
- Unplug equipment after use
This product must not be modified in any way
as this will invalidate the guarantee.
If in doubt, contact a registered plumber, your Local Water
Authority or the Secretary of the Institute of Plumbing,
address as follows:-
The Institute of Plumbing,
64 Station Lane,
Hornchurch,
Essex,
RM12 6NB, Tel: 01708 472791
Installation Instructions
& User Guide
Please leave these instructions
with the end user
Product Code: ZI SHXDIVSMFF C (D1)
Inlet Water Temperature Inlet Dimensions
Hot Water Supply
65°C
25°C
60°C
5°C
60-65°C Recommended
IMPORTANT
The inlet hot water must
be at least 10°C above the
required blend temperature.
Spanner Pipe Cutter Hexagonal Keys Safety Glasses
Pack Contents
x2
x2
x1
x2
x1
x1
x1
x1
x1
x2
x2
x4
x2 x2
x2
x4 x2
Installation
1
Ensure pipework is level and exactly 150mm distance apart –
150mm
measure between the centre of each pipe. Place the backplates
Centres
over the pipes against the tiled surface, marking the screw
holes, as well as where the pipe needs to be cut. Drill holes for
backplates using a 5mm drill bit. Use a pipe cutter to make a
clean straight cut to the pipework.
Inlet Connections
3
3/4" BSP
Threaded
Connection
Slide olives onto pipes and then connect the threaded connectors
to the backplates. Grip the back plate with pipe pliers whilst
creating olive connection using adjustable spanner on the
Detector
threaded connector – otherwise tiling can be cracked. Then,
thread over the cover shrouds and screw back to the tiles.
x1
To reduce the build up of limescale and ensure this shower works to
its maximum performance, we recommend this shower is serviced
every 6-12 months depending on the hardness of your water.
x1
Slide the bracket
x1
onto the riser rail,
then push the riser
extension into the
riser rail.
Press & hold knob
on the bracket to
slide up or down.
Hole size
5.5mm
x1
x1
Secure the
bracket to
the wall.
Apply a small amount of suitable sealant
2
around the pipework where it protrudes
through the tiles, before then securing
backplates to the tiled surface using
wall plugs and screws provided.
4
Attach the shower body to the
wall mount connectors, ensuring filter washers are
in place. Ensure a cloth is placed over the chrome
shower nuts before tightening with spanner to avoid
scratching the surface. Turn water supplies on and
check for leaks.
Tighten nut to
secure riser.
To adjust the
height unscrew
the nut and move
the pole to the
desired height.
Tighten nut again
to secure in place.
3mm
Secure the riser
bracket and riser
To adjust height of head, slide the riser to
rail.
desired height (see step 2).
IMPORTANT
Pipework must not
protude past the olive
by more than 5mm
Using a spirit level
to ensure the riser is
positioned correctly
and vertical to the wall,
use the assembled riser
to mark the desired
position of the bracket.
Attach the fixed head.
