E-mail: info@comhoma.com
www.comhoma.com
READ THIS MANUAL
Do not use this product until you read and understand the
instructions in this manual.
KEEP THIS MANUAL FOR FUTURE REFERENCE.
TIPS: Some accessories are placed under the seat base.

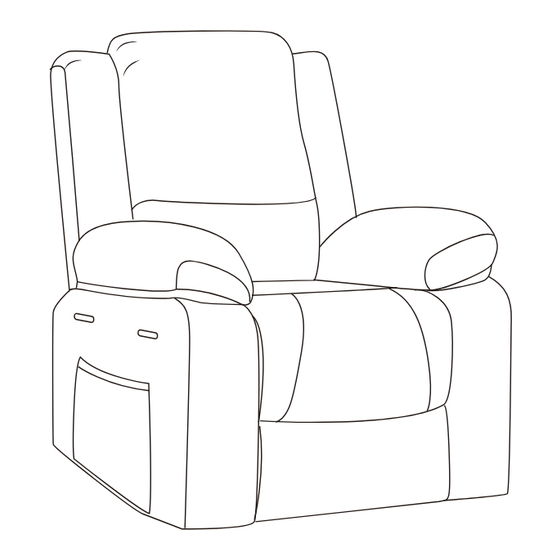

H7165 Recliner
Installation Video QR
If you have any inquiries regarding the item,
please reach out to us using the contact
information provided on the left. We strive
to resolve your concerns within 24 hours
(excluding weekends and holidays).
Version 23.12.22
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for COMHOMA H7165
Summary of Contents for COMHOMA H7165

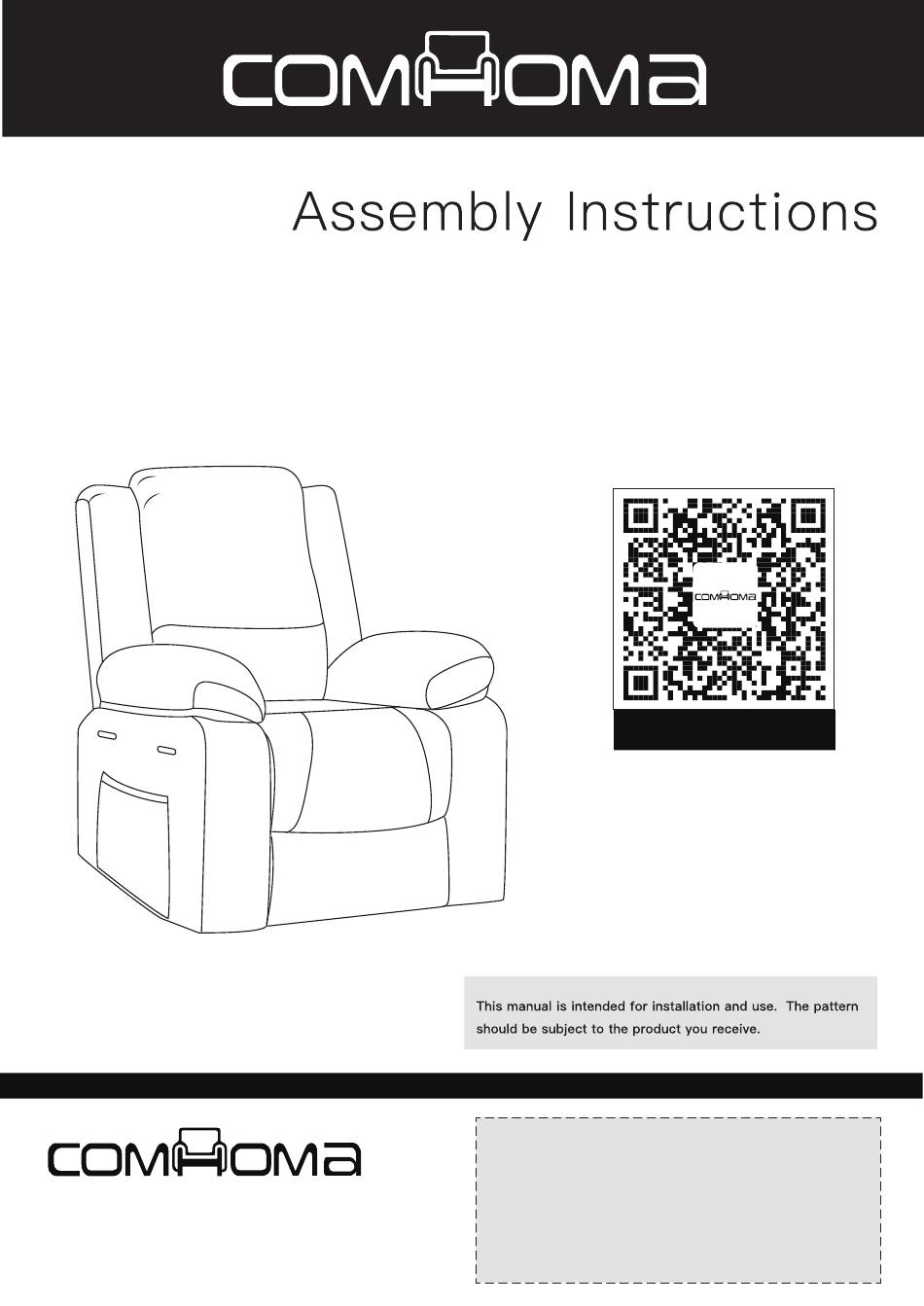

- Page 1 Do not use this product until you read and understand the instructions in this manual. KEEP THIS MANUAL FOR FUTURE REFERENCE. TIPS: Some accessories are placed under the seat base. H7165 Recliner Installation Video QR Version 23.12.22 If you have any inquiries regarding the item, please reach out to us using the contact information provided on the left.
- Page 2 If you have any questions regarding this product, feel free to email us at info@comhoma.com for further assistance. Happy sitting! The COMHOMA Team CALL US FIRST！！！ DO NOT RETURN TO STORE For immediate help with assembly or product information， please call us for assistance.
- Page 3 care. Or with the chair. ➊...
- Page 4 * Note: Some accessories are placed under the the seat base. Please take out the backrest ear part and inner spring cushion under the chair base to ensure proper installation. Backrest ＊1pc Seat Cushion ＊1pc �� �� �� Inner Spring Cushion＊1pc ��...
- Page 5 ASSEMBLY INSTRUCTIONS CAUTION: At least two adults are required to safely assemble this recliner chair. Other lifting attempts may risk back safety due to large and heavy part(s). Invert the box. Please untie the seat cushion �� from the Packaging box. ��...
- Page 6 Expand the armrests on the seat cushion ��. Left armrest �� �� BOTH TOGETHER * Apply force with hands Right armrest �� �� BOTH TOGETHER * Apply force with hands * NOTE: Hold the handles on the armrest with both hands, pull it out horizontally until you hear two clicks, now the armrest is extended.
- Page 7 Install the inner spring cushion into the seat cushion ��. �� �� �� * NOTE: The inner spring cushion you received has been vacuum-packed. Open the plastic bag，take out the inner spring cushion，let it breathe to the normal state. �� Unzip the seat cushion cover.
- Page 8 Flip the seat cushion cover. �� �� Stick the seat cushion cover on the seat cushion. ➏...
- Page 9 Install the armrest insert into the armrest on the seat cushion ��. �� �� �� �� �� Insert the armrest insert into Unzip up the armrest cover. the armrest cover. �� Stick the armrest cover to zip up the armrest cover. the armrest.
- Page 10 Insert metal bolts of the backrest �� �� to the seat cushion �� as shown. Ensure they are installed correctly in place. * Note: The backrest you received has been vacuum-packed. Open the plastic bag and take it out, let it breathe to the normal state.
- Page 11 Unstick the Velcro of the seat base and the backrest. Then connect the cables. The method of connecting the cables. �� �� �� Connect �� with �� and �� with wire from the seat ��. Connect �� with wire from the seat ��. ➒...
- Page 12 Seat Backrest Connect the same color wires from the backrest and seat cushion. Connect �� to the wire on the backrest. �� Remote Control About Install Cables: 1. Insert each cable into the port shown above. Some of the connectors have a guide pin for alignment.
- Page 13 A. Recline & Legrest 1. Power. Plug the power cord into a power source. Recline 2. Recline the backrest and raise the legrest. & Press once the Recline & Legrest button to recline Legrest and lift the legrest to the desired position. 3.
- Page 14 B. Lift and Lower The Chair 1. Lift the chair from the initial state (Back upright, footrest closed). Lift 2. Long press the Lift button until the chair reaches a desired height. 3. Press the RST button to lower the chair from a lift position.
-
Page 15: Massage Operation
C. Massage Operation INTENSITY：Change intensity（HIGH or LOW） during all modes. POWER :Turn on/off remote control INTENSITY : Control massage Press the TIMER key, the function （High, Middle, Low） TIME unit's control time will switch HEAT MODE between 10 /20 /30min. HEAT : Turn on/off heat Choose M1/M2/M3/M4/M5 LUMBAR... - Page 16 HOW TO RETRACT THE ARMREST? �� �� �� 2. Remove the armrest insert from 1. Remove the cup holders, and unstick the armrest cover. the armrest cover. 3. Grab the seat bottom and pull it 4. Push the armrest closer to the seat out forcefully outward and push cushion and retract it.
- Page 17 �� �� closed * Remember to store the remote control and hand control safely in the seat’s side pocket when not in use. * Fabric will fade in direct sunlight. Minimize exposure to direct sunlight to extend the life of your furniture. �...
- Page 18 As all action products contain moving parts, handle all items with care. * Only move the recliner when it’s in the “initial position”. Never attempt to move the recliner when it’s in any reclining position. Always use the armrests to move the recliner.
-
Page 19: Improper Usage
IMPROPER USAGE DO NOT stand up when the footrest is in the upright position. DO NOT stand up from your recliner chair with uneven weight. DO NOT stand up from your recliner chair with only one arm. �... - Page 20 Avoid using sharp objects such as a knife to cut open packing as you may accidentally damage the upholstery. If you have any inquiries regarding the item, E-mail: info@comhoma.com please reach out to us using the contact information provided on the left. We strive www.comhoma.com...
