Spitzer LIGHTING PGCS Installation Manual

PGCS
Parking Garage Canopy Square
KEY TECHNICAL DATA
INPUT VOLTAGE 120-277V
CONTROL 0-10V dimming driver, bi-level microwave
motion sensor w/daylight harvester
WORKING TEMP. -40°F ~ 104°F
PRE. INSTALLATION
•Carefully remove the fixture from the carton.
•Before beginning assembly, installation, or operation of product, make sure all parts are present.
Compare parts with package contents list and diagram on previous page. If any part is missing or
damaged, do not attempt to assemble, install or operate the product. Contact customer service for
replacement parts.
• Tools required for assembly (Not Included): screwdriver, phillips screwdriver, pliers, electrical tape,
wire cutters, safety glasses, ladder, wire stripper.
WARNINGS
• To prevent personal injury or product damage only licensed electricians should install
• To avoid electric shock or component damage disconnect power before attempting installation or
servicing
• This product must be installed in accordance with the national electric code (NEC) and all
applicable federal, state and local electric codes and safety standards
• Disconnect product and allow cooling prior to servicing
• Any alteration or modification of this product is expressly forbidden as it may cause serious
personal injury, death, property damage and/or product malfunction
• To prevent product malfunction and/or electrical shock this product must be properly grounded
• This luminaire is designed to operate in ambient temperatures ranging from -22°F to 104°F and to
be horizontally mounted with the LEDs facing down

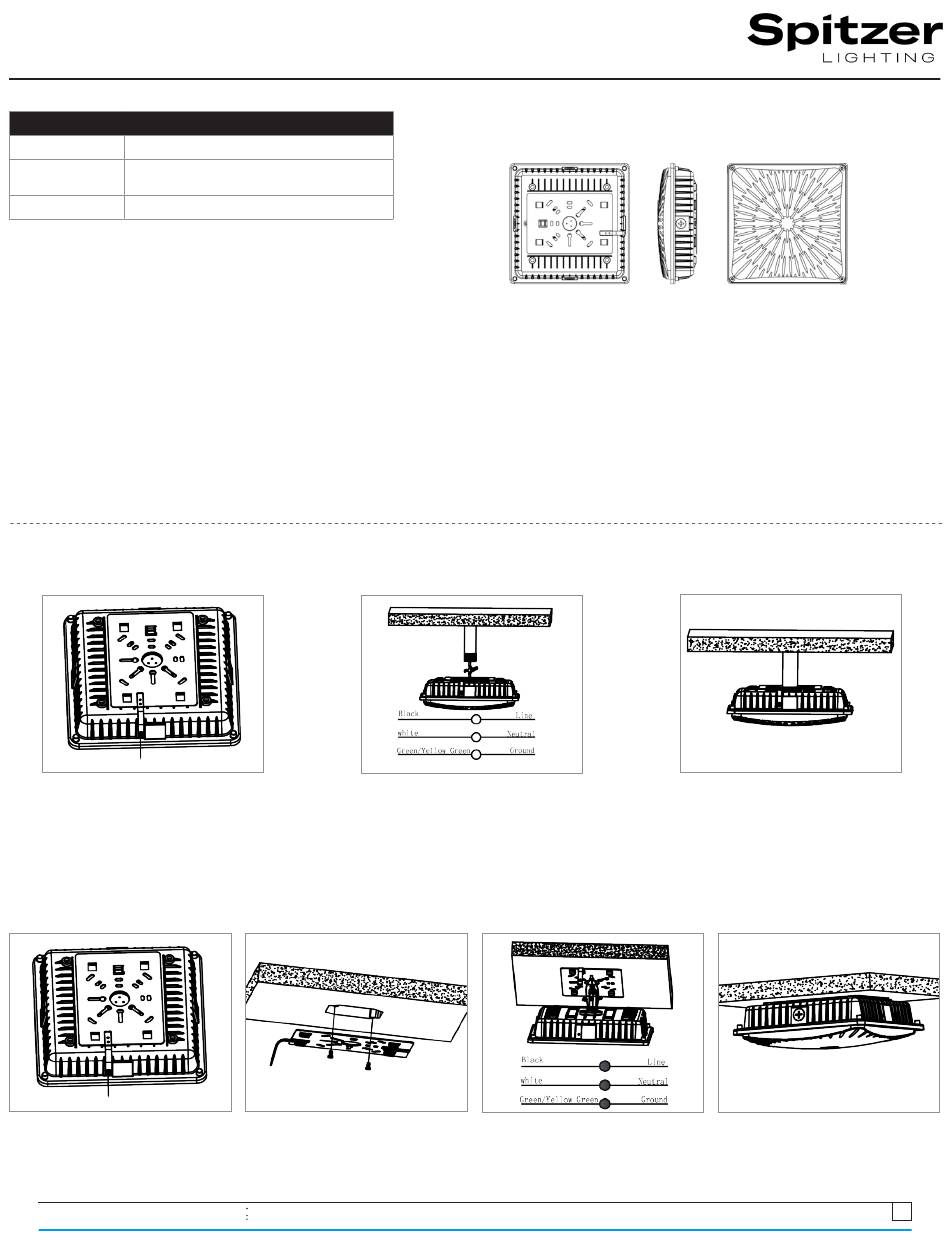

PENDANT INSTALLATION W/
→Before beginning installation, turn off the circuit breaker
→STEP 1
Loosen the screw on the side of the light,
removing the bracket from the canopy light
by pulling it slightly out, just leaving the
ring on the bracket.
SURFACE MOUNT INSTALLATION W/J-BOX
→Before beginning installation, turn off the circuit breaker
→STEP 1
Loosen the screw on side of the light, removing
the bracket from canopy light by pulling it slightly
out, just leaving the ring on the bracket.
702 Interchange Blvd, Newark DE 19711
CONDUIT
3/4"
→STEP 2
Connect the wires threaded from conduit
and canopy, black wire for lime, white for
neutral, yellow and green for ground.
→STEP 2
Fix the bracket on J-box, and put the wire through
the central hole for wiring
www.spitzerlighting.com
SAFETY INFORMATION
BE SURE THE POWER IS OFF! RISK OF ELECTRICAL SHOCK: Always use the switch to
power off. The electrical system you want to connect the device to must be grounded.
Read the instructions before using or powering this device. The safety instructions
must remain with the unit in case of transfer. Any damage to the device linked to an
inappropriate use is excluded from support by the warranty. Before connecting, make
sure that the current and voltage are compatible with this device. We highly recommend
that all installations are made by QUALIFIED ELECTRICIAN. We are NOT responsible by
any means for the use or misuse of the following information. We are NOT responsible in
whole or part for any harm or damage that may or may not be caused. We reserve the right
to revise the components of any product, due to part availability or change ETL, CUL, UL
standards without assuming any obligation or liability to modify any products previously
manufactured and without notice. These instructions do not cover all details of variations
in equipment, nor do they provide every possible contingency to be met. Turn off / unplug
power when installing or service device.
→STEP 3
Attach the canopy light with the bracket by
putting the ring on clips again. Connect the black
wire for line, white for neutral, yellow and green
for ground.
Installation Manual
→STEP 3
Screw the conduit into the hole on top of
canopy light installation done.
→STEP 4
Slide the canopy lights into the bracket, and
secure the screw on side of the light to prevent
the light from sliding out from the bracket.
Installation done.
