Spitzer LIGHTING PKLH Installation Manual

PKLH
High Powered Parking Lot Light
KEY TECHNICAL DATA
INPUT VOLTAGE 120-277 / 277-480V
CONTROL 0-10V dimming optional
WORKING TEMP. -22°F ~ 113°F
SAFETY INFORMATION
BE SURE THE POWER IS OFF! RISK OF ELECTRICAL SHOCK: Always use the switch to
power off. The electrical system you want to connect the device to must be grounded.
Read the instructions before using or powering this device. The safety instructions
must remain with the unit in case of transfer. Any damage to the device linked to an
inappropriate use is excluded from support by the warranty. Before connecting, make
sure that the current and voltage are compatible with this device. We highly recommend
that all installations are made by QUALIFIED ELECTRICIAN. We are NOT responsible by
any means for the use or misuse of the following information. We are NOT responsible in
whole or part for any harm or damage that may or may not be caused. We reserve the right
to revise the components of any product, due to part availability or change ETL, CUL, UL
standards without assuming any obligation or liability to modify any products previously
manufactured and without notice. These instructions do not cover all details of variations
in equipment, nor do they provide every possible contingency to be met. Turn off / unplug
power when installing or service device.
PRE. INSTALLATION
•Carefully remove the fixture from the carton.
•Before beginning assembly, installation, or operation of product, make sure all parts are present.
Compare parts with package contents list and diagram on previous page. If any part is missing or
damaged, do not attempt to assemble, install or operate the product. Contact customer service for
replacement parts.
• Tools required for assembly (Not Included): screwdriver, phillips screwdriver, pliers, electrical tape,
wire cutters, safety glasses, ladder, wire stripper.

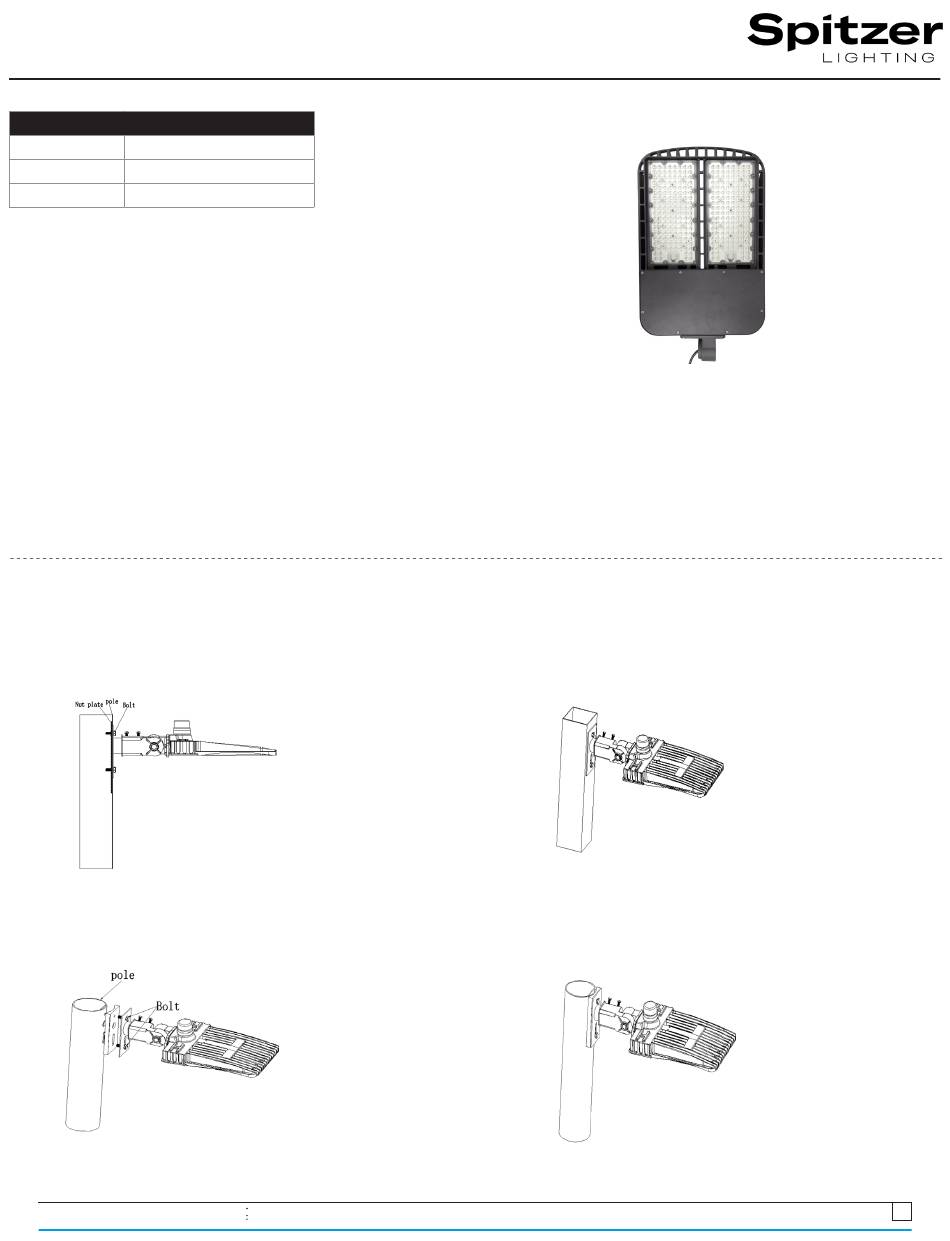

SLIP FITTER INSTALLATION
→Before beginning installation, turn off the circuit breaker
Square Pole
Round Pole
702 Interchange Blvd, Newark DE 19711
→STEP 1
Drill holes on the
square pole corre-
sponding to the holes
on the square bar
adapter, and use the
bolt and nut plate to
fix the fixture to the
adapter tightly.
→STEP 1
Drill holes on the round
pole corresponding to
the holes on the round
bar adapter, and use
the bolt and nut plate
to fix the fixture to the
adapter tightly.
www.spitzerlighting.com
WARNINGS
• This product must be installed according to the instructions. And installed by a person
familiar with the product, production and product hazards
• Avoid fire and electric shock . When installing the lighting fixtures, you need to
understand the electrical characteristics. If you are not sure, do not attempt to install.
Please contact an electrician
• Make sure you understand the structural features and dimensions of lighting before
installation
• Do not drill holes or change internal lines when the product is installed
Installation Manual
→STEP 2
Connect the AC wire of
the fixture and tighten
the water-proof gasket
and cover plate on the
square bar adapter by
screws, then power on.
→STEP 2
Connect the AC wire of
the fixture and tighten
the water-proof gasket
and cover plate on the
square bar adapter by
screws, then power on.
