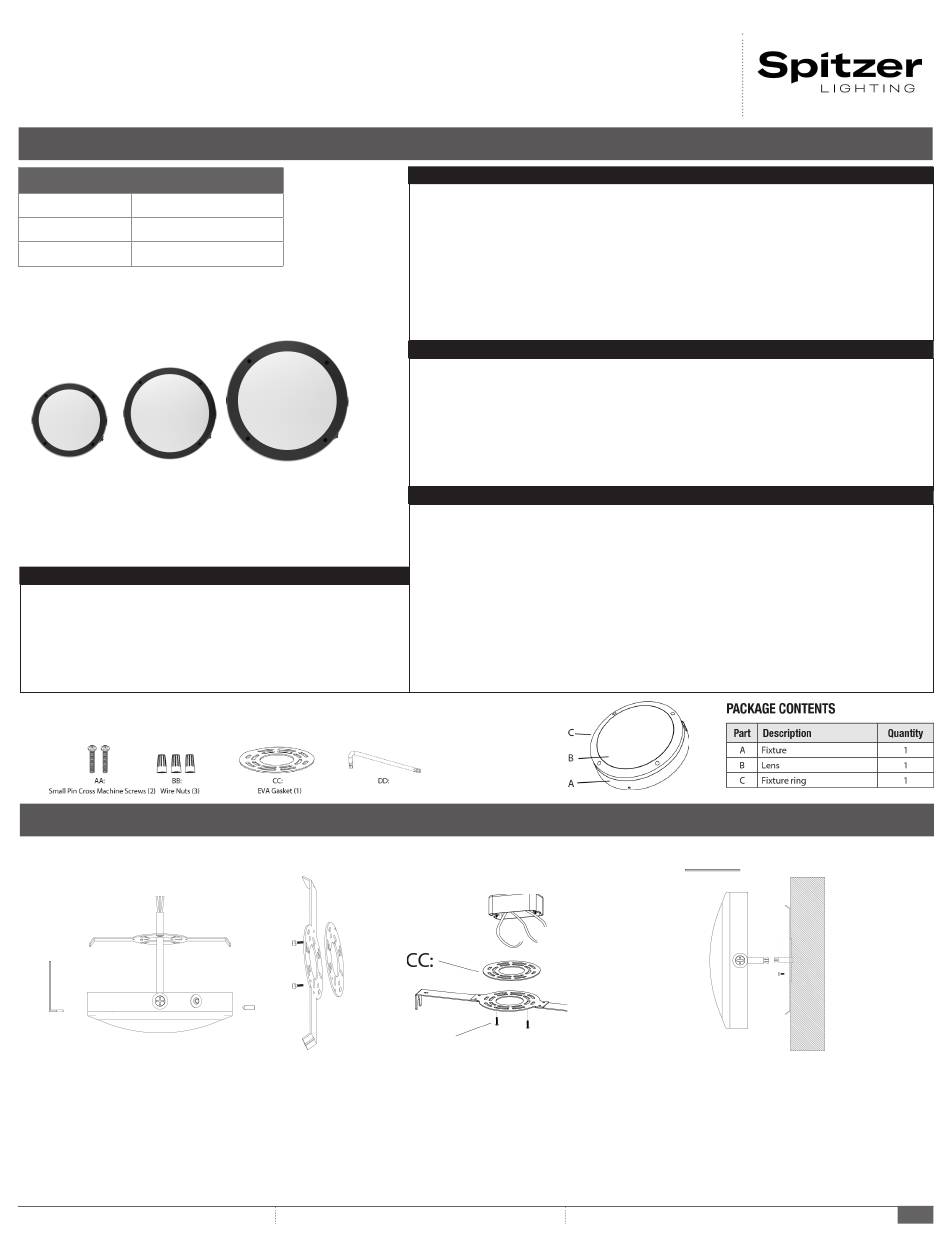

Spitzer LIGHTING DEFENDER Series Installation Manual

DEFENDER SERIES
OPEN STYLE VANDAL RESISTANT LUMINAIRE
PRODUCT PARAMETER
INPUT VOLTAGE 100 - 277V
DIE-CAST ALUMINUM
MATERIAL
WORKING TEMP
-40°F-131°F / 32°F-122°F(EM)
PRE - INSTALLATION
•Carefully remove the fixture from the carton.
•Before beginning assembly, installation, or operation of product, make sure all parts
are present. Compare parts with package contents list and diagram on previous page.
If any part is missing or damaged, do not attempt to assemble, install or operate the
product. Contact customer service for replacement parts.
• Tools required for assembly (Not Included): screwdriver, phillips screwdriver, pliers,
electrical tape, wire cutters, safety glasses, ladder, wire stripper.
Hardware Included
WALL MOUNT INSTALLATION (Caution: Before beginning installation turn off the circuit breaker and light switch)
STEP 1
Removing screws to take
out the mounting bracket.
www.spitzerlighting.com
I N S T A L L A T I O N M A N U A L
BE SURE THE POWER IS OFF! RISK OF ELECTRICAL SHOCK: Always use the switch to power off. Do not perform
any operations while this unit is powered on. The electrical system you want to connect the device to must be
grounded. Read the instructions before using or powering this device. The safety instructions must remain with the
unit in case of transfer. Any damage to the device linked to an inappropriate use is excluded from support by the
warranty. Before connecting, make sure that the current and voltage are compatible with this device. We highly
recommend that all installations are made by QUALIFIED ELECTRICIAN. We are NOT responsible by any means for
the use or misuse of the following information. We are NOT responsible in whole or part for any harm or damage that
may or may not be caused. We reserve the right to revise the components of any product, due to part availability or
change ETL, CUL, UL standards without assuming any obligation or liability to modify any products previously
manufactured and without notice. These instructions do not cover all details of variations in equipment, nor do they
provide every possible contingency to be met. Turn off / unplug power when installing or service device.
WARNING: Read all safety precautions and installation instructions carefully before installing or servicing this
fixture. Failure to comply with these instructions could result in a potentially fatal electric shock, fire, and/or
property damage.
• Turn off the electrical power at the fuse or circuit breaker box before installing or servicing any part of this fixture
• If replacing a fixture, remove existing fixture and make a sketch of wiring configuration (by color) or mark wires
with masking tape for identification
• Remove the lamp bas and diffuser from the carton and check that all parts are included. Be careful not to misplace
any of screws or parts needed for installing the fixture
• Diffuser is fragile. Carefully set aside in a safe location to avoid damage until ready to be installed.
WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance
could void the user authority to operate the equipment.
NOTES: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
STEP 2
Stick EVA gasket to the
mounting bracket, fasten it
to the J-box.
702 Interchange Blvd., Newark, DE 19711
SAFETY INFORMATION
WARNING
FCC WARNING
STEP 3
Hanging the fixture to
mounting bracket and lock
the screws.
Specification is subject to change without notice
1/2
