Spitzer LIGHTING PTM Installation Manual

PTM
Modern Luminaire
KEY TECHNICAL DATA
INPUT VOLTAGE
120- 277 / 347 - 480V
CONTROL
TYPE 3 / TYPE 5
WORKING TEMP.
-40°F ~ 122°F
SAFETY INFORMATION
BE SURE THE POWER IS OFF! RISK OF ELECTRICAL SHOCK: Always use the switch to
power off. The electrical system you want to connect the device to must be grounded.
Read the instructions before using or powering this device. The safety instructions
must remain with the unit in case of transfer. Any damage to the device linked to an
inappropriate use is excluded from support by the warranty. Before connecting, make
sure that the current and voltage are compatible with this device. We highly recommend
that all installations are made by QUALIFIED ELECTRICIAN. We are NOT responsible by
any means for the use or misuse of the following information. We are NOT responsible in
whole or part for any harm or damage that may or may not be caused. We reserve the right
to revise the components of any product, due to part availability or change ETL, CUL, UL
standards without assuming any obligation or liability to modify any products previously
manufactured and without notice. These instructions do not cover all details of variations
in equipment, nor do they provide every possible contingency to be met. Turn off / unplug
power when installing or service device.
LIGHT DEPENDENT CONTROL
*optional
This light includes an integrated photocell which activates the light during low
illumination (at dusk) and deactivates the light when illuminated (at dawn). The
integrated photocell is a 7 pin base.

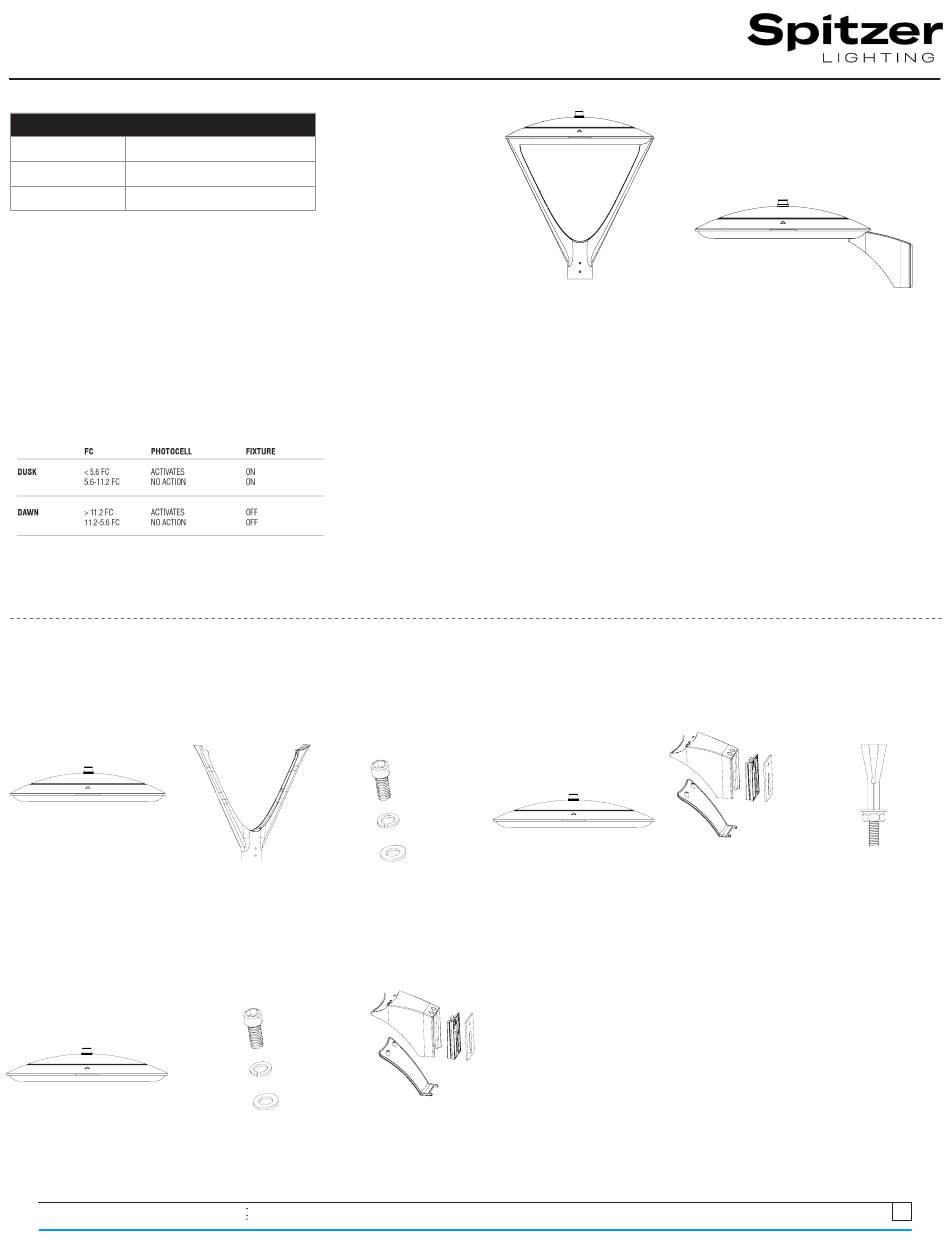

PRE-INSTALLATION
→Before beginning installation, turn off the circuit breaker
→POST TOP MOUNT (PM)
The main body of LED (1)
→POLE MOUNT (AM)
The main body of LED (1)
702 Interchange Blvd, Newark DE 19711
Mounting Screws
Mounting Bracket (1)
(in the bracket)
Mounting Screws
(in the bracket)
www.spitzerlighting.com
Post Top Mount
PRE. INSTALLATION
•Carefully remove the fixture from the carton.
•Before beginning assembly, installation, or operation of product, make sure all parts are present.
Compare parts with package contents list and diagram on previous page. If any part is missing or
damaged, do not attempt to assemble, install or operate the product. Contact customer service for
replacement parts.
• Tools required for assembly (Not Included): screwdriver, phillips screwdriver, pliers, electrical tape,
wire cutters, safety glasses, ladder, wire stripper.
WARNINGS
• To reduce the risk of electrical shock or other personal injury, ensure the power is turned
off at the breaker box before making any electrical connections
• For outdoor use only
• Must be connected to 100-277 volt, 60Hz power source
• Fixture should be mounted to a grounded junction box marked for use in wet locations
• Suitable for wall mount
• NOT suitable for ground locations
• Utility light should be installed by a qualified electrician or person experienced with
household wiring. The electrical system, and method of electrical connection of the
fixture, must be in wiring. The electrical system, and method of the National Electric Code
and local building codes
→WALL MOUNT (AM)
The main body of LED (1)
Mounting Bracket (1)
PM
Wall/Pole Mount
Mounting Bracket (1)
Installation Manual
AM
Expansion Bolts
(not included)
1
