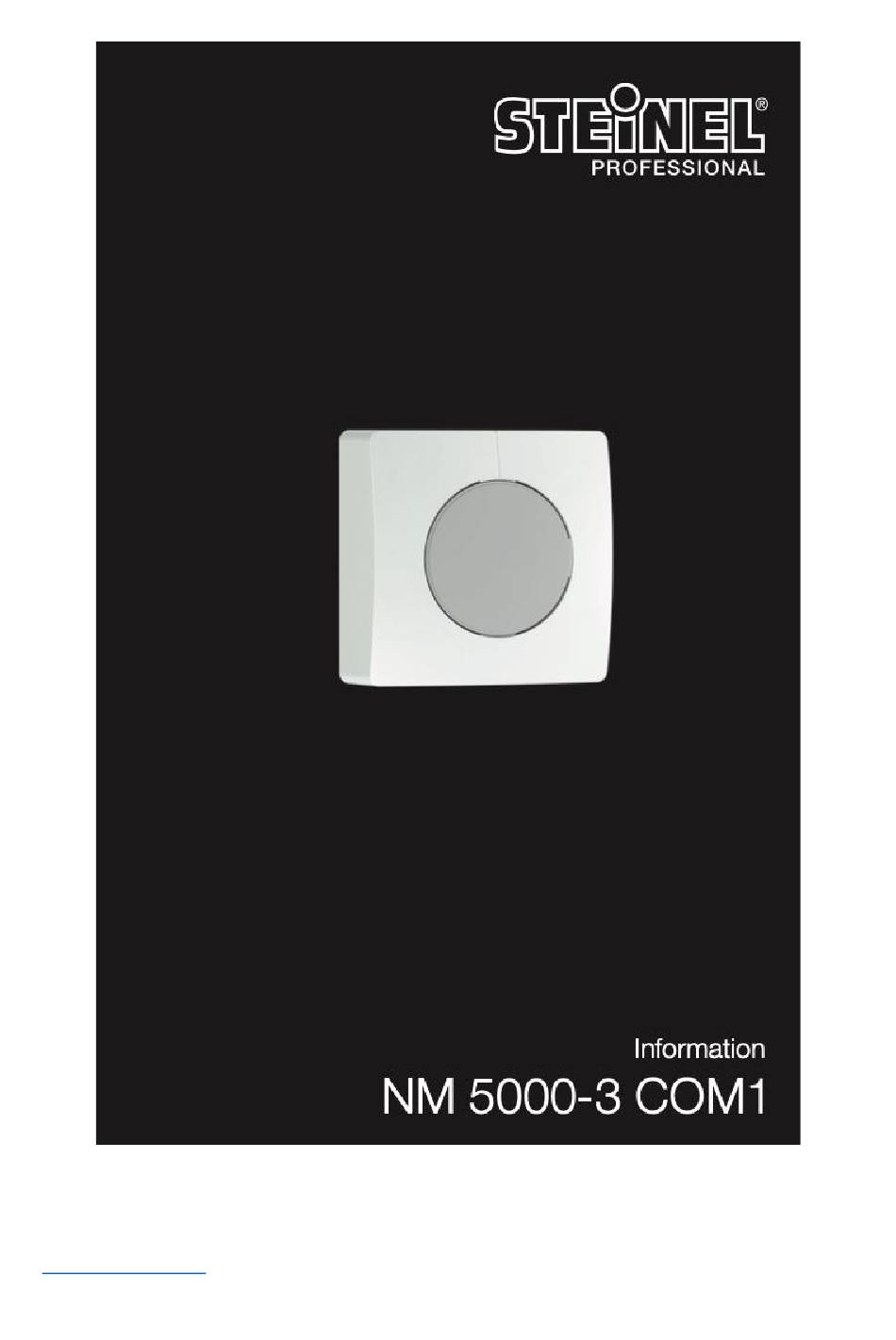

- Page 1 STEINEL U.K. LTD. 25, Manasty Road – Axis Park – Orton Southgate GB-Peterborough Cambs PE2 6UP Tel.: +44/1733/366-700 – Fax: 00353 1 8612061 Info@sockettool.ie...
-
Page 10: About This Document
The NightMatic 5000-3 is suitable for ceiling and wall mounting indoors and outdoors. The NM 5000-3 COM1 photo-cell controller measures ambient brightness and automatically switches the light ON at dusk and automatically switches it OFF again in line with various setting options. -
Page 11: Electrical Installation
4. Electrical installation The mounting location should be selected so that daylight can fall onto the light sensor. An optional corner wall mount (product no. 648015 black or 035174 white) is available for mounting the NM 5000-3 COM1. The supply lead consists of three wires: L = phase conductor (usually black, brown, or grey) N = neutral conductor (usually blue) PE = protective-earth conductor (green/yellow) -
Page 12: Function Operation
5. Mounting • Check all components for damage. • Do not use the product if it is damaged. • Select an appropriate mounting location, considering the reach and motion detection. Installation procedure (Fig. 5.1) • Switch OFF the power supply. •... - Page 13 Night economy mode setting The load connected can be switched OFF automatically at night to save even more electricity. The night economy mode always ends in the early hours of the morning between approx. 4 and 5 a.m. The economy time can be infinitely adjusted at the control inside the unit from 0 to approx.
-
Page 14: Accessories (Optional)
Warranty Declaration. We guarantee that your STEINEL Professional sensor product will remain in perfect condition and in proper working order for 5 years. We guarantee that this product is free from material-, manufacturing- and design flaws. -
Page 15: Technical Specifications
For information on making claims under the terms of the warranty, please go to www.steinel-professional.de/garantie If you have a warranty claim or would like to ask any questions regarding your product, you are welcome to call us at any time on our Service Hotline at 01733 366700. - Page 16 10. Troubleshooting Malfunction Cause Solution NightMatic 5000-3 COM1 -fuse faulty, not switched -new fuse, turn ON power without power ON, break in wiring switch, check wiring with voltage tester -short circuit -check connections Light does not switch ON -load faulty -change load -no power supply -see „NightMatic 5000-3...
