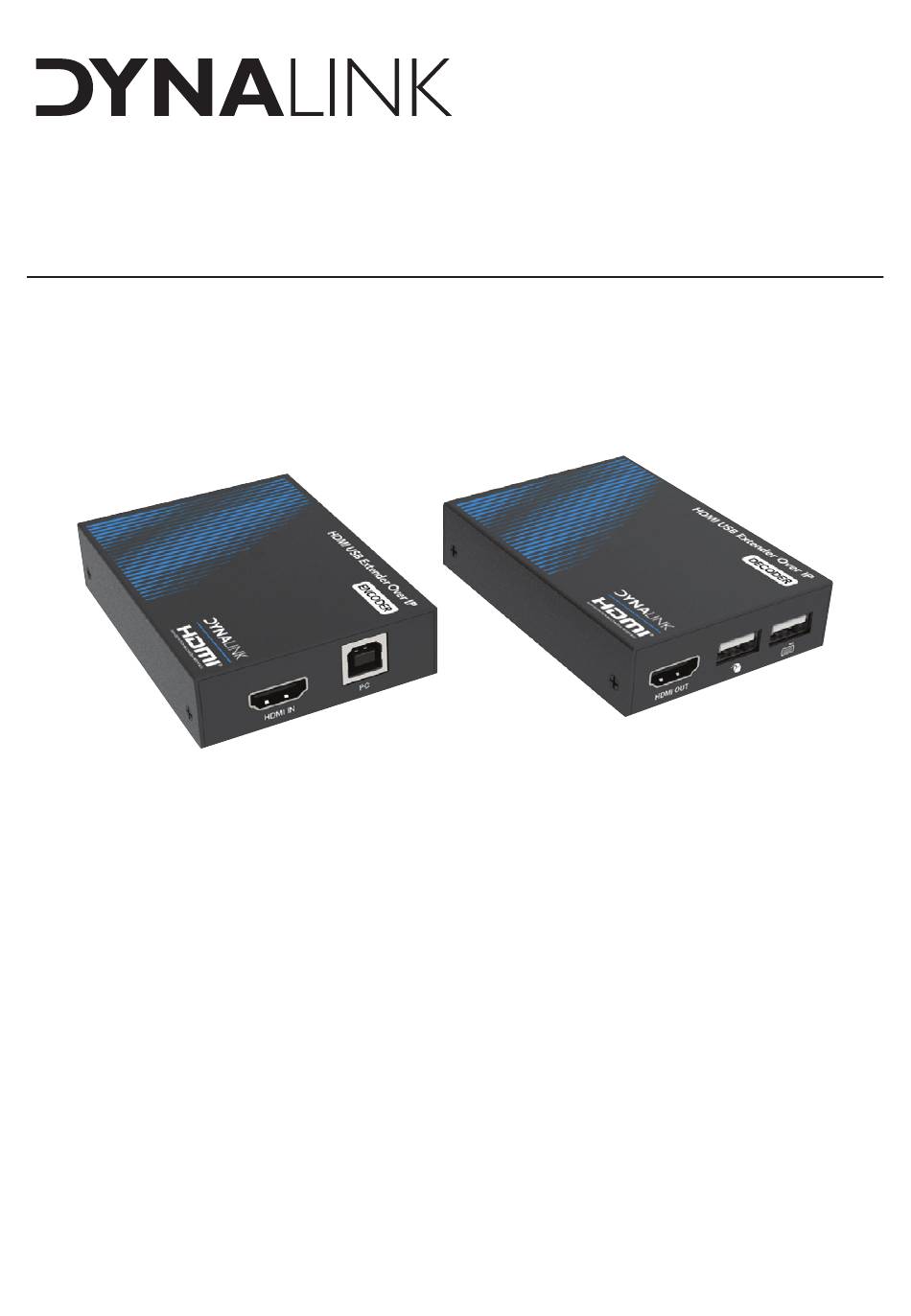

HDMI over IP Extender (150m)
Operating Instructions
A 3110
Features
•
HDCP 1.4 compliant
•
Support 6.75Gbps video bandwidth
•
Input video resolution is up to 1920×1200@60Hz YCbCr 4:4:4;
•
Output video resolution is up to 1080P@60Hz YCbCr 4:4:4
•
Extend transmission distance up to 150m/492ft between encoder and
decoder via a single Cat5e/6 cable
•
Adopt standard H.265 encoding / decoding
•
Support 1Gbps standard IP swticher / router / hub
•
Support one-way IR control signal transmission
•
With USB KVM function to control remote PC
•
Compact design for easy and flexible installation
A 3110 - Encoder
A 3111 - Decoder
Manual revision date: 15/8/23
A 3111
Advertisement
Related Manuals for Dynalink A 3110
Summary of Contents for Dynalink A 3110
- Page 1 A 3110 - Encoder A 3111 - Decoder HDMI over IP Extender (150m) Operating Instructions A 3110 A 3111 Features • HDCP 1.4 compliant • Support 6.75Gbps video bandwidth • Input video resolution is up to 1920×1200@60Hz YCbCr 4:4:4; •...
-
Page 2: Box Contents
A 3110 + A 3111 HDMI over IP Extender Overview HDMI over IP Extender adopts standard H.265 encoding / decoding. It can distribute one HD content to one HD display device or to multiple HD dis- play devices over a standard 1Gbps network switcher, and extends distance up to 150m between encoder and decoder via a Cat5e/6 cable. - Page 3 A 3110 + A 3111 HDMI over IP Extender Colour Depth 8-bit,10-bit,12-bit Colour Space RGB, YCbCr 4:4:4, YCbCr 4:2:2 ESD Protection Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge) Connection Encoder Inputs: 1×HDMI IN (Type A, 19-pin female) Outputs: 1×LAN (RJ45 connector)
- Page 4 A 3110 + A 3111 HDMI over IP Extender Operation Controls and Functions - Encoder Name Function Description 5V DC 5V 1A input port for power supply The LAN port is connected to decoder’s LAN port or connected to switcher / router / hub...
- Page 5 A 3110 + A 3111 HDMI over IP Extender Operation Controls and Functions - Decoder Name Function Description 5V DC 5V 1A input port for power supply The LAN port is connected to encoder’s LAN port or connected to switcher / router / hub with CAT cable.
-
Page 6: Ir Pin Definition
A 3110 + A 3111 HDMI over IP Extender IR Pin Definition IR Receiver and Blaster pin’s definition as below: Application Diagram - Figure 1 (USB KVM) - Page 7 A 3110 + A 3111 HDMI over IP Extender Application Diagram - Figure 2 NOTE: Sum of Cat5e/6 cable runs must be equal or less than 150m. Endcoder to switch plus switch to decoders must be equal or less than...
- Page 8 A 3110 + A 3111 HDMI over IP Extender Altronic Distributors warrants this product for one year from date of purchase from Altronics or its resellers to the consumer. If this item is part of an installation or another product, please contact the installer or supplier for your warranty.
