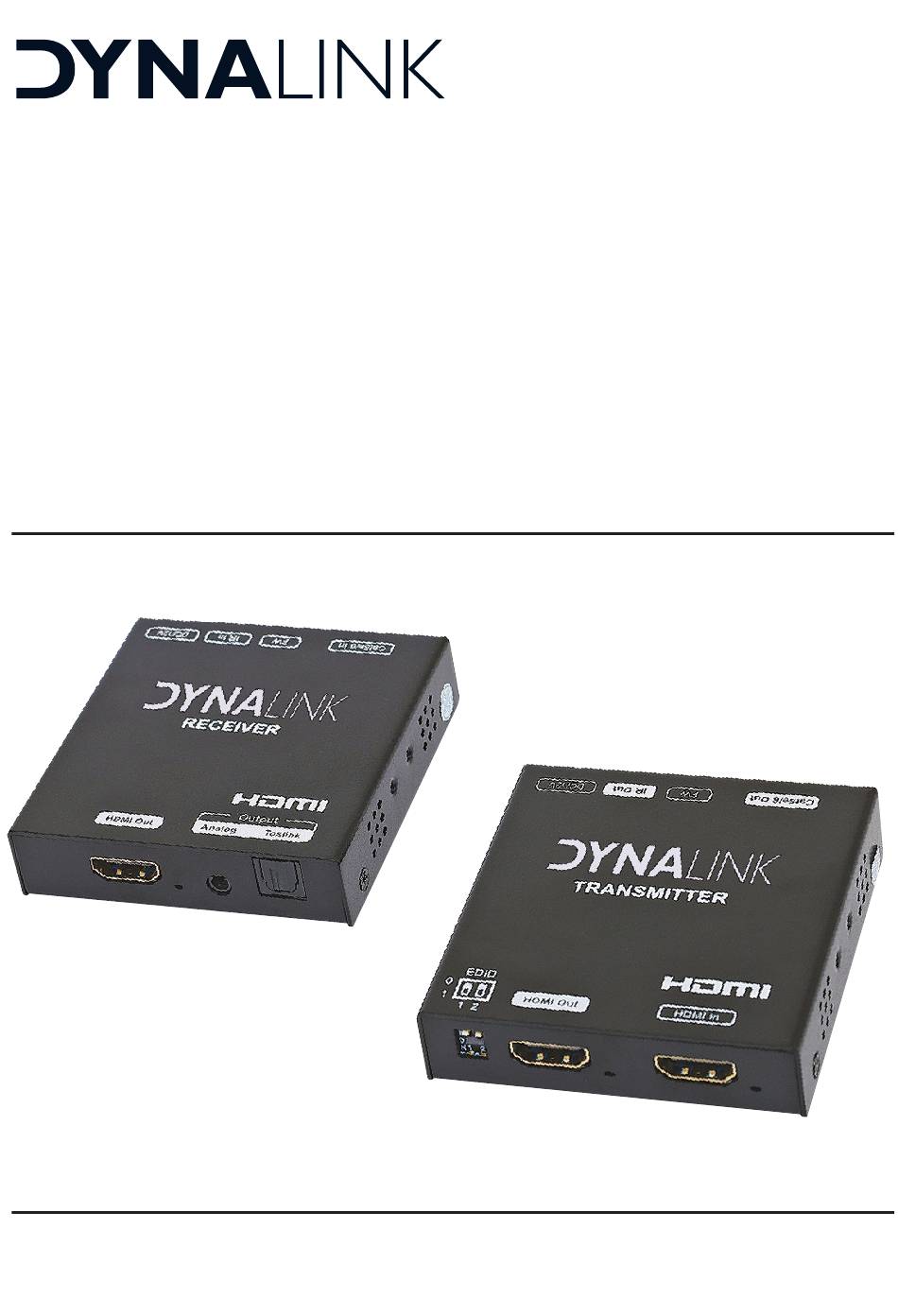

- Page 1 A 3242A Operating Instructions HDMI & One Way Infra-Red Cat6 Extender UTP Balun...
-
Page 2: Package Contents
A 3242A HDMI & One Way Infra-Red Cat6 Extender UTP Balun Overview This HDMI & One Way Infra-Red Cat6 Extender UTP Balun is designed to extend HDMI signals over distances up to 70m across economical UTP cabling. Maximum resolution of 4K @ 60Hz 4:4:4 is achieved when used with Cat6/6a/7 type cables. -
Page 3: Specifications
A 3242A HDMI & One Way Infra-Red Cat6 Extender UTP Balun Specifications Operating Temperature Range -5°C to +40°C Operating Humidity Range 5 to 90% RH (no condensation) 2 x HDMI (1 x HDMI input, 1 x HDMI loop output) 1 x DC Power Socket... -
Page 4: Operation Controls And Functions
A 3242A HDMI & One Way Infra-Red Cat6 Extender UTP Balun Operation Controls and Functions Transmitter Panel EDID Switch Firmware Update Port HDMI Loop Out Port IR Out Port HDMI Input Port DC 12V Power Input Cat5e/6 Output Port Note: The transmitter has default EDID and copy EDID functions. -
Page 5: Connection Steps
A 3242A HDMI & One Way Infra-Red Cat6 Extender UTP Balun Receiver Panel HDMI Out Port Firmware Update Port Analog Stereo Out Port IR Input Port Toslink Out Port DC 12V Power Input Cat5e/6 Input Port Connection Steps 1. Connect a single source, such as a Blu-Ray player or gaming console, to the HDMI input on the transmitter. -
Page 6: Connection Diagram
A 3242A HDMI & One Way Infra-Red Cat6 Extender UTP Balun Connection Diagram Note: Only one power supply is required per system. Power from either end.
