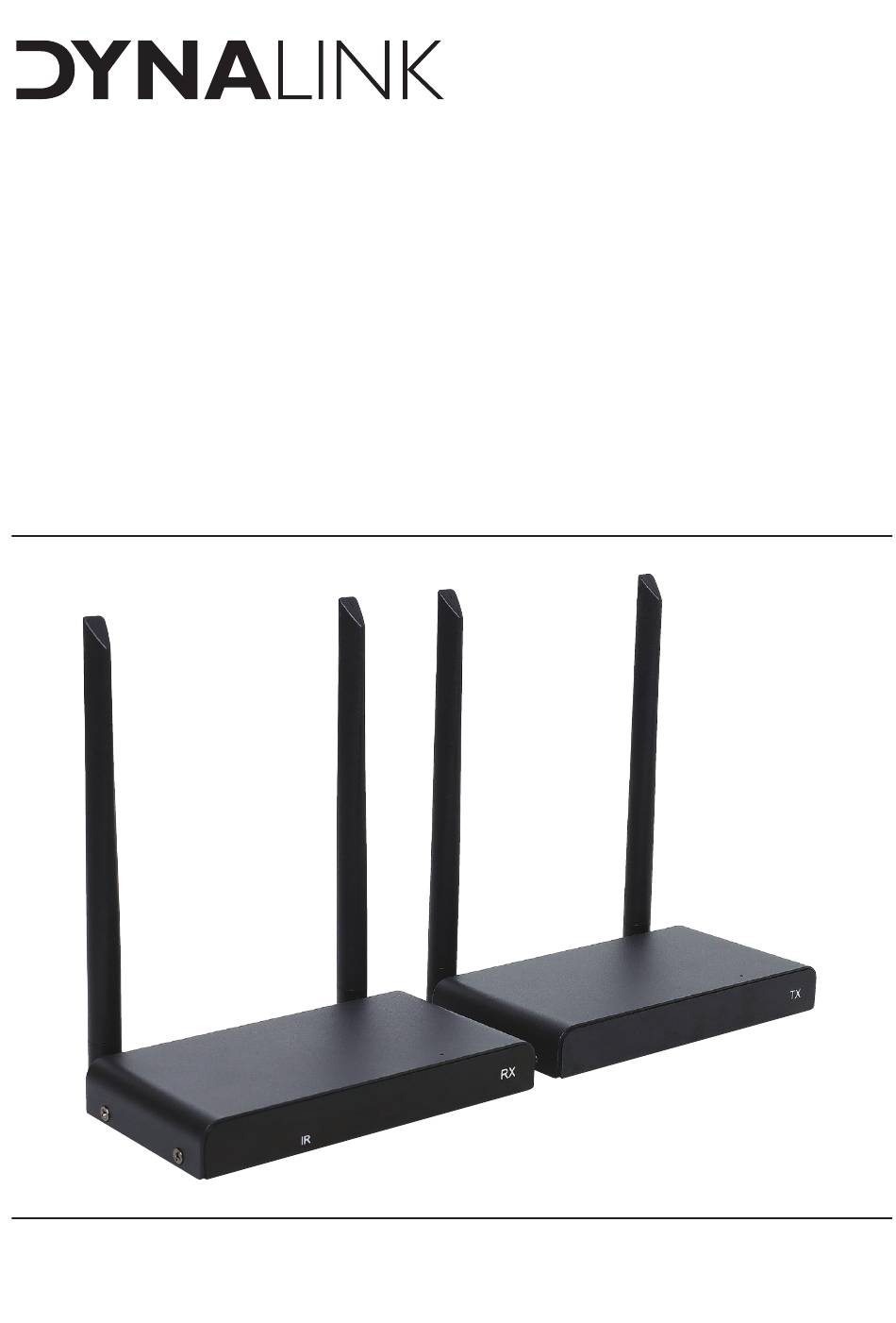

- Page 1 A 3605 Operating Instructions HDMI 4K Wireless Sender System...
-
Page 2: Package Contents
A 3605 HDMI 4K Wireless Sender System Overview This 4K wireless HDMI extender system supports 4K 60Hz resolutions with super smooth playback and low latency. You can now watch TV in your bedroom, study or any other room without messy cables. You can... -
Page 3: Specifications
A 3605 HDMI 4K Wireless Sender System Specifications System Video Resolution 4K60; 4K30; 4K24; 1080P60/50/30/24;1080i60/50; 720P/60/50/30 480P Audio Stereo, 44.1KHz Wireless standard IEEE 802.11b/g/n/ac, 2.4G/5GHz, 2T2R Latency About 100ms latency HDMI Version HDMI 2.0 with HDCP2.2 Platform supported Any devices that support HDMI Port Distance ≈150m in the clear line of sight... -
Page 4: Safety Instructions
A 3605 HDMI 4K Wireless Sender System Safety Instructions Please read these instructions thoroughly before you use the device and keep them for future reference. Only for indoor use. This product is not a toy. Keep out of reach of children. -
Page 5: Transmitter Overview
A 3605 HDMI 4K Wireless Sender System Transmitter Overview 3 4 5 1. HDMI in: Connect to the video source. 2. HDMI out: Connect to display for Pass-through. 3. Micro USB: Connect to USB of video source for KVM function. -
Page 6: Receiver Overview
A 3605 HDMI 4K Wireless Sender System Receiver Overview 3 4 5 1. HDMI out: Connect with display. 2. USB: Connect with mouse & keyboard for USB KVM, you can also connect with touch panel USB port for touch panel back control. -
Page 7: Connecting The Transmitter
A 3605 HDMI 4K Wireless Sender System Operation & Pairing A standard wireless HDMI extender kit includes one transmitter and one receiver, which are paired before shipment. Normally you don’t need to pair them again. However, if you buy additional receiver, you need to follow the instruction below to pair the new receiver with the transmitter. -
Page 8: Connecting The Receiver
A 3605 HDMI 4K Wireless Sender System Connecting the receiver 1. Connect the power adapter to the connector marked “5V” and insert the plug into the wall socket. 2. Place the receiver in the room (bedroom, study or other room) where you want to connect the second TV or projector. - Page 9 A 3605 HDMI 4K Wireless Sender System One TX to multiple RX mode. When you connect TX and RX by following above step, the TX and RX will connect automatically The HDMI extender also supports multicast function, which means video transmission from one transmitter is streamed to a group of receivers simultaneously.
- Page 10 A 3605 HDMI 4K Wireless Sender System Connecting Infra-Red Return The 4K wireless HDMI extender has a Built in “infrared return” that en- ables continued operation of the connected HDMI sources from another room.For example,operate your HDMI source downstairs from your bedroom (location of second TV).
- Page 11 A 3605 HDMI 4K Wireless Sender System Connecting the USB extension. In addition to an infrared return feature, the 4K wireless HDMI extender also features a built-in USB extension function. This helps you to contin- ue to operate connected HDMI sources, such as a Media Center PC or laptop, from another room, using a mouse and/or keyboard.
-
Page 12: Troubleshooting
A 3605 HDMI 4K Wireless Sender System Troubleshooting Q1. No (or poor) image and sound on TV or projector Move the HD transmitter and the HD receiver in the same room to test if the connection works well, and please make sure all of below setting are correct. - Page 13 A 3605 HDMI 4K Wireless Sender System Troubleshooting (continued). Q2. No or bad connection between the HD transmitter and HD receiver 1. Move the HD transmitter and/or the HD receiver from the immediate vicinity of the connected HDMI sources and Wi-Fi equipment. These may affect the range.
- Page 14 A 3605 HDMI 4K Wireless Sender System...
- Page 15 A 3605 HDMI 4K Wireless Sender System...
- Page 16 A 3605 HDMI 4K Wireless Sender System Altronic Distributors warrants this product for one year from date of purchase from Altronics or its resellers to the consumer. If this item is part of an installation or another product, please contact the installer or supplier for your warranty.
