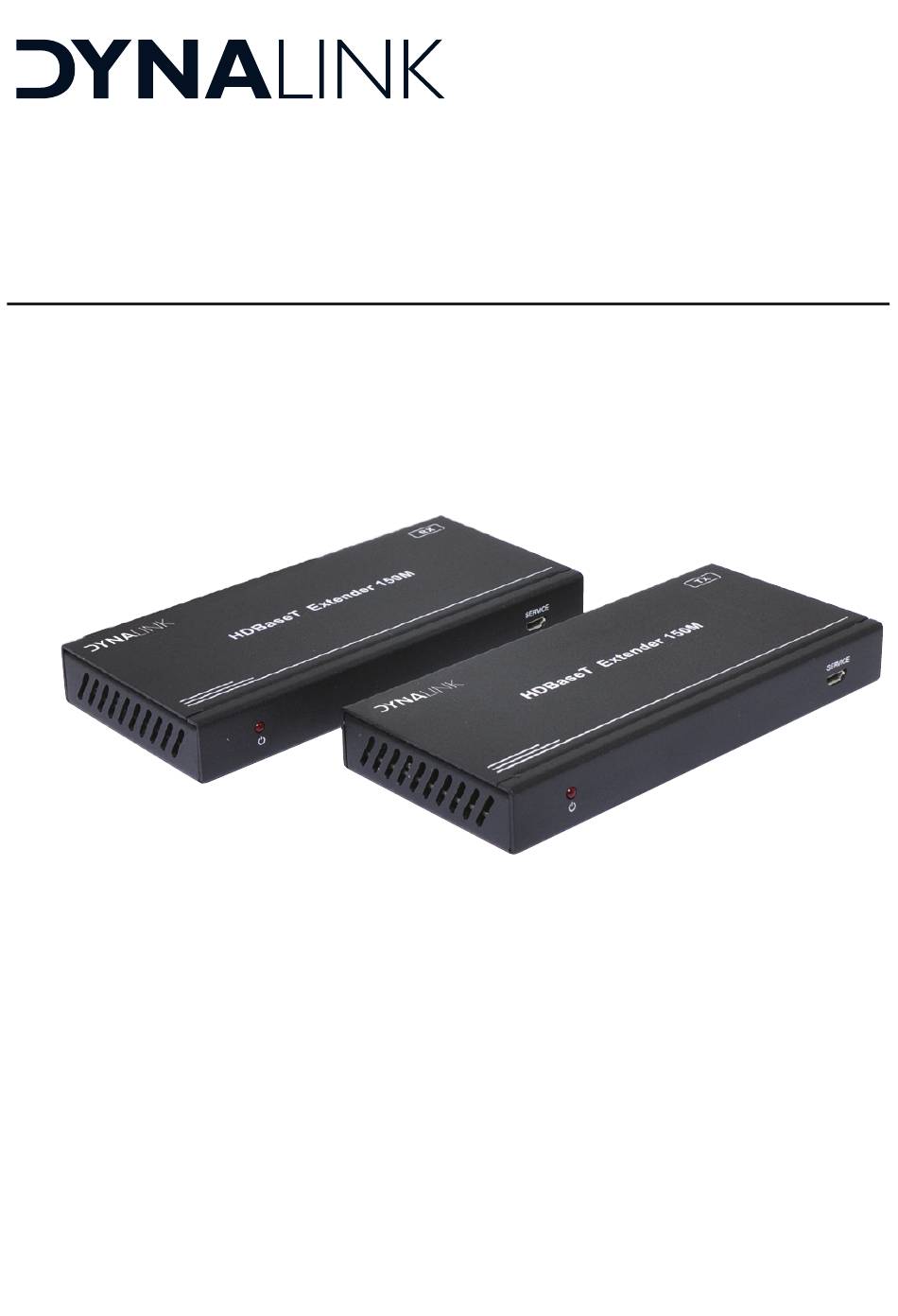

A 3218C
HDMI over HDBaseT Extender with IR
Operating Instructions
• Compact design for easy and flexible installation
• HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant.
• Supports 18Gbps video bandwidth.
• Single Cat5e/6 cable transmission: 120m @ 4K2K, 150m @ 1080p.
• HDMI loop output on transmitter
• Analogue 3.5mm stereo output on receiver
• Bi-directional IR control (two targets and two emitters included)
• RS232 pass-through
• CEC pass-through
• HDR, HDR10+, Dolby Vision and HLG support
• Supports PoC (Power over Cable)
Advertisement
Table of Contents
Related Manuals for Dynalink A 3218C
Summary of Contents for Dynalink A 3218C
- Page 1 A 3218C HDMI over HDBaseT Extender with IR Operating Instructions • Compact design for easy and flexible installation • HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant. • Supports 18Gbps video bandwidth. • Single Cat5e/6 cable transmission: 120m @ 4K2K, 150m @ 1080p.
-
Page 2: Package Contents
A 3218C HDMI over HDBaseT Extender with IR Overview This 18Gbps HDMI Extender can extend high definition video / audio signal, RS-232, bi-directional IR, and the distance is up to 492ft / 150 meters between transmitter and receiver via a single CAT cable. It supports resolution up to 4K2K@60Hz 4:4:4, 18Gbps and HDCP 2.2. -
Page 3: Specifications
A 3218C HDMI over HDBaseT Extender with IR Specifications Technical HDCP Compliance HDCP 2.2 / HDCP 1.4 Video Bandwidth 18Gbps Video Resolution 4K2K 50/60Hz 4:4:4 4K2K 50/60Hz 4:2:2 4K2K 50/60Hz 4:2:0 4K2K 30Hz 4:4:4 1080p, 1080i, 720p, 720i, 480p, 480i... - Page 4 A 3218C HDMI over HDBaseT Extender with IR Specifications Mechanical Housing Metal Enclosure Colour Black Dimensions Transmitter / Receiver: 140mm [W] x 65mm [D] x 18mm [H] Weight Transmitter: 160g, Receiver: 155g Power Supply Input: AC 100 - 240V 50/60Hz...
-
Page 5: Operation Controls And Functions
A 3218C HDMI over HDBaseT Extender with IR Operation Controls and Functions Transmitter Panel Name Function Description Power LED Red LED indicates that the transmitter is powered on. SERVICE port Firmware update port. DC 24V DC 24V/1A power supply input port. - Page 6 A 3218C HDMI over HDBaseT Extender with IR HDMI IN HDMI source input. IR IN IR input port for receiving the signal of IR remote. IR OUT IR output port for control of source de- vice. This IR output signal is from the IR IN port of receiver.
- Page 7 A 3218C HDMI over HDBaseT Extender with IR Connection Signal • Illuminating: Transmitter and Receiver Indicator lamp are in good connection status. • Flashing: Transmitter and Receiver are in poor connection status. • Dark: Transmitter and Receiver are not connected.
-
Page 8: Application Diagram
A 3218C HDMI over HDBaseT Extender with IR Application Diagram...
