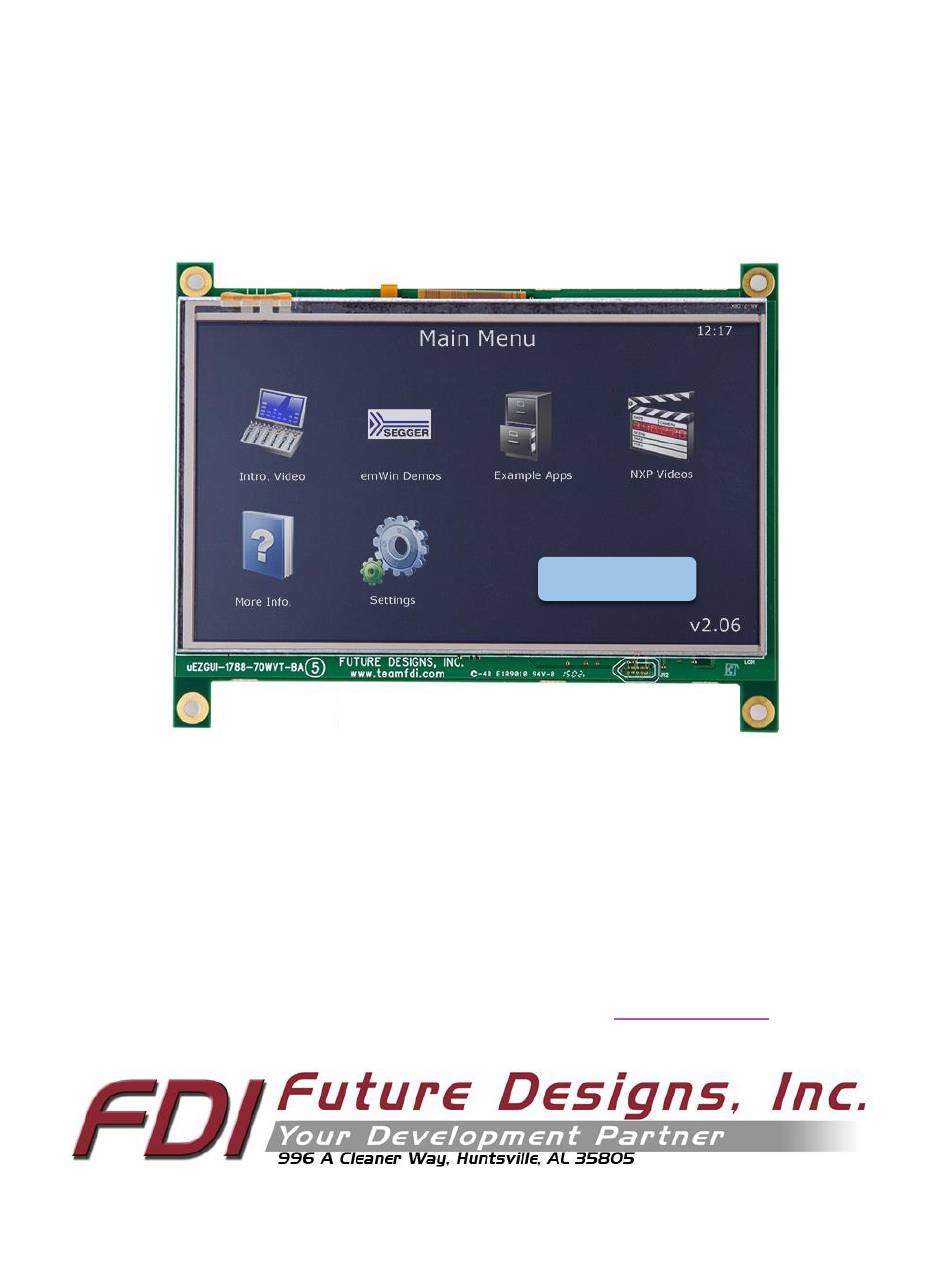

µEZ® GUI User's Manual
Covers the following products:
UEZGUI-1788-70WVT (Dev Kit)
UEZGUI-1788-70WVT-BA (Board Assembly)
Example Display Images
shown for Reference Only
NOTICE: At FDI we are constantly improving our documentation. Please get the latest version of this
document in the documentation tab of the product page at
www.TeamFDI.com
Copyright ©2016, Future Designs, Inc., All Rights Reserved
Advertisement
Table of Contents
Related Manuals for FDI UEZGUI-1788-70WVT
Summary of Contents for FDI UEZGUI-1788-70WVT
- Page 1 UEZGUI-1788-70WVT-BA (Board Assembly) Example Display Images shown for Reference Only NOTICE: At FDI we are constantly improving our documentation. Please get the latest version of this document in the documentation tab of the product page at www.TeamFDI.com Copyright ©2016, Future Designs, Inc., All Rights Reserved...
-
Page 2: Table Of Contents
µ E Z G U I U s e r ’ s M a n u a l P a g e Table of Contents Introduction _______________________________________________________________________ 5 Block Diagram ______________________________________________________________________ 5 Kit Contents (FDI PN: UEZGUI-1788-70WVT) ______________________________________________ 5 Useful links ________________________________________________________________________ 6 Functional Description _______________________________________________________________ 6 Startup procedure __________________________________________________________________ 7 Demonstration Software Main Menu ___________________________________________________ 8... - Page 3 µ E Z G U I U s e r ’ s M a n u a l P a g e 21. Dimension comparison between 70WVE and 70WVT models _______________________________ 24 3/20/2024 Revision 8 Copyright ©2024, Future Designs, Inc...
- Page 4 Information in this document is provided solely to enable the use of Future Designs products. FDI assumes no liability whatsoever, including infringement of any patent or copyright. FDI reserves the right to make changes to these specifications at any time, without notice. No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the express written permission of Future Designs, Inc.
-
Page 5: Introduction
2. Block Diagram Figure 1 – UEZGUI-1788-70WVT-BA Block Diagram 3. Kit Contents (FDI PN: UEZGUI-1788-70WVT) • UEZGUI-1788-70WVT-BA Resistive Touch Screen Kit with LCD • Segger Mini-JTAG Debugger and JTAG cable • FDI JTAG Adapter Board •... -
Page 6: Useful Links
µ E Z G U I U s e r ’ s M a n u a l P a g e 4. Useful links Complete Users Manuals, Schematics, and documentation are available on the Micro-SD card provided with the µEZ GUI and are also available from the following websites (please refer to the websites for the latest updates): •... -
Page 7: Startup Procedure
µ E Z G U I U s e r ’ s M a n u a l P a g e 6. Startup procedure The µEZ GUI kit comes with a pre-installed Micro SD card that contains files required for the slide show and videos to run. -
Page 8: Demonstration Software Main Menu
µ E Z G U I U s e r ’ s M a n u a l P a g e 7. Demonstration Software Main Menu Note: The Demonstration Software is subject to change at any time. The Main Menu has the following options: Example Apps Selecting the Example Apps icon will load the Example Applications Screen with the following options: •... -
Page 9: Settings
µ E Z G U I U s e r ’ s M a n u a l P a g e Select the slideshow to view by touching the menu entry for it on the touch screen. The slide show will auto- play by default. -
Page 10: Setting Up A Slideshow
11. µEZ Project Maker FDI has provided a project maker to help create new projects for EZ GUI hardware. It is available for download at https://sourceforge.net/projects/uez/. To create a new project, download the application, run the executable file, and follow the onscreen instructions. It will create a demo project using an emWin example GUI that will provide basic peripheral functionality. -
Page 11: Software
µ E Z G U I U s e r ’ s M a n u a l P a g e | 11 and programmed onto EZ GUI hardware using the included J-Link debugger, with no extra project configuration necessary. -
Page 12: Board Layout
Input / Output Devices • SDRAM and DDR Memory 13. Board Layout The following figures illustrate the layout of the various components of the UEZGUI-1788-70WVT-BA kit. They are for reference only and are subject to change. Figure –UEZGUI-1788-70WVT Component View... -
Page 13: I/O Connector Descriptions
14. I/O Connector Descriptions J5 - JTAG Connector The UEZGUI-1788-70WVT-BA uses a reduced size JTAG connector based on a 2mm Header. This smaller connector provides 100% of the functionality of the standard 20-pin JTAG connector, but utilizes 70% less board space. The connector is a standard part available from most major vendors. - Page 14 J2 - MicroSD Socket When connected to the USB Host port on a PC, the UEZGUI-1788-70WVT-BA will appear as a USB Flash Drive to the PC, allowing the user to read and write files directly to the MicroSD card. The unit uses a MicroSD Socket for flexible mass storage capability.
- Page 15 µ E Z G U I U s e r ’ s M a n u a l P a g e | 15 WARNING: The microSD card must only be removed using the spring loaded “push-pull” mechanism on the microSD socket.
-
Page 16: J3 - Isp Connector (Not Loaded)
J3 - ISP Connector (not loaded) The UEZGUI-1788-70WVT-BA is laid out with an ISP programming header. This header is designed to be utilized with the USB-ICP-LPC2K programmer from FDI. However the connector on the UEZGUI-1788-70WVT- BA is not directly compatible with the one used on the USB-ICP. This connector is a 1.25mm Hirose male, shrouded connector. -
Page 17: J11 - Alternate Power And Communication
P1 – USB mini-AB port The UEZGUI-1788-70WVT-BA has a mini-AB USB connector for host or device mode. By using a USB OTG adapter (with a mini-A plug) it will short the ID pin 4 to ground. This can be used for host mode detection in the application. -
Page 18: J4 & J5 - Expansion Connectors
| 18 J4 & J5 - Expansion Connectors The UEZGUI-1788-70WVT-BA includes two expansion connectors that provide a wide variety of capabilities for user expansion, ranging from 10/100 Ethernet to USB Host, etc. Please note: When using I/O signals on the µEZ GUI Expansion Connectors (J4 & J5) to connect via the customers Expansion Board to external connectors or signals, it is the customer’s responsibility to provide adequate ESD protection and filtering to... - Page 19 µ E Z G U I U s e r ’ s M a n u a l P a g e | 19 Pin Name Pin Description P0[8] -General purpose digital Input/Output pin. I2STX_WS - I2S Transmit word select. It is driven by the master and received by the slave. Corresponds to the signal WS in the I2S-bus specification.
- Page 20 µ E Z G U I U s e r ’ s M a n u a l P a g e | 20 Pin Name Pin Description P1[4] - General purpose digital Input/Output pin. P1.4_ENET_TXEN ENET_TX_EN - Ethernet transmit data enable (RMII/MII interface) P1[1] - General purpose digital Input/Output pin.
-
Page 21: J4 & J5 - Expansion Connector Cable Details
µ E Z G U I U s e r ’ s M a n u a l P a g e | 21 Pin Name Pin Description P1[3] – General Purpose digital Input/Output P1.3_MCICMD-PWM0.2 MCICMD – Command line for SD/MMC interface PWM0[2]-Pulse Width Modulator 0, output 2 P0[1] –... -
Page 22: Schematics
18 hrs 18. ESD Warning The UEZGUI-1788-70WVT-BA kit is shipped in a protective anti-static package. The kit must not be subjected to high electrostatic potentials. Damage may occur to the boards that will not be covered under warranty. General practice for working with static sensitive devices should be followed when working with the kit. -
Page 23: Mechanical Details
Expansion Board from the µEZ GUI unit. • The UEZGUI-1788-70WVT may also optionally be powered via the following connectors; o Alternate Power/Communication Connector, J11, with a maximum of 2A 5V input o Expansion Connector(s) J4 and/or J5 – refer to the expansion connector section for details 20. - Page 24 µ E Z G U I U s e r ’ s M a n u a l P a g e | 24 Dimension comparison between 70WVE and 70WVT models Figure – UEZGUI-1788-70WVE Dimensions and Stack-up 3/20/2024 Revision 8 Copyright ©2024, Future Designs, Inc...
- Page 25 µ E Z G U I U s e r ’ s M a n u a l P a g e | 25 Figure – UEZGUI-1788-70WVT Dimensions and Stack-up 3/20/2024 Revision 8 Copyright ©2024, Future Designs, Inc...
