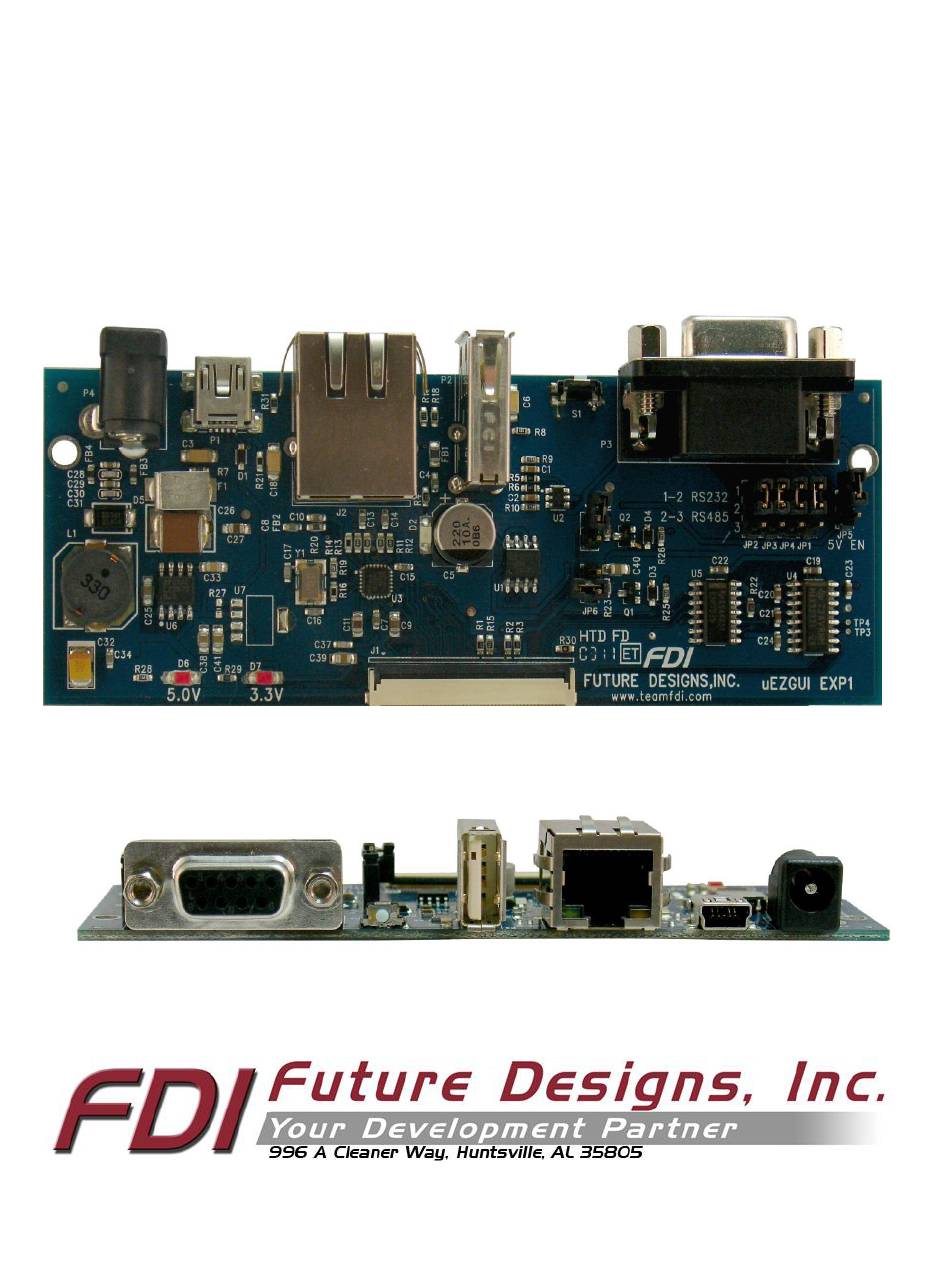

- Page 1 µEZGUI User’s Manual Covers the following products: uEZGUI-EXP1 Copyright ©2014, Future Designs, Inc., All Rights Reserved...
- Page 2 Example Connections to the uEZGUI Boards ________________________________________ 5 Information in this document is provided solely to enable the use of Future Designs products. FDI assumes no liability whatsoever, including infringement of any patent or copyright. FDI reserves the right to make changes to these specifications at any time, without notice.
- Page 3 10/100 Ethernet to USB Host, etc. The part number used for the FPC connector is OMRON XF2M-5015-1A. The table below provides the pin out and signal used on the uEZGUI-EXP1: (see the corresponding uEZGUI schematics for the up-to-date listings of all pin capabilities)
- Page 4 Unused Unused Unused Unused Unused USB1H_PPWR USB_PPWR1 – Port Power enable signal for USB port 1. (USB Host port on uEZGUI-EXP1) Output USB1H_OVC USB_OVC – Overcurrent detection (USB Host port on uEZGUI-EXP1) Input USB1H_PWRD USB_PWRD – 5V power detection (USB Host port on uEZGUI-EXP1)
- Page 5 USB Device – P1 The UEZGUI-EXP1 Board includes one USB Device Interface allowing the unit to be connected to a USB Host, such as a PC. Through this connection, the uEZGUI represents a peripheral to the USB Host. The operational mode of the port is dependent on the software utilized (i.e.
- Page 6 USB Host – P2 The uEZGUI-EXP1 Board includes one USB Host Port allowing the unit to interface to various USB peripherals such as a USB Flash Drive (Thumb Drive). The operational mode of this port is dependent on the software utilized (i.e. driver...
- Page 7 Serial Port – P3 The uEZGUI-EXP1 Board includes one female DB9 Serial Port Connector. This connector may operate in either RS232 or RS485 (Full-duplex) interface levels depending on jumper settings of JP1 through JP4. Jumpers JP1 – JP4 select the operating mode of the serial port;...
- Page 8 OEM Housing...
