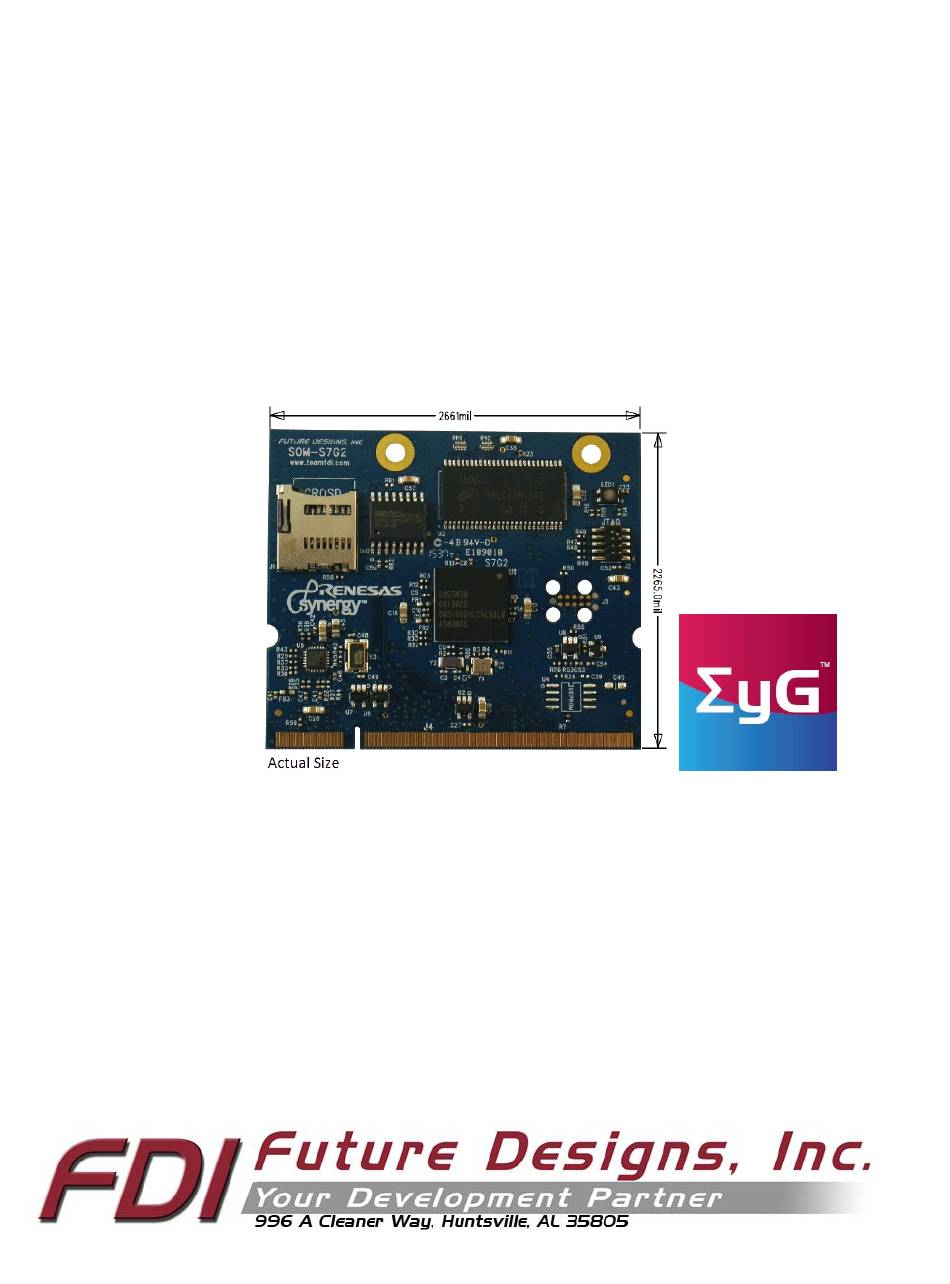

- Page 1 User’s Manual S YG-S7G2-SOM Copyright ©2015, Future Designs, Inc., All Rights Reserved...
-
Page 2: Important Legal Information
Important Legal Information Information in this document is provided solely to enable the use of Future Designs, Inc. (FDI) products. FDI assumes no liability whatsoever, including infringement of any patent or copyright. FDI reserves the right to make changes to these specifications at any time, without notice. No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the express written permission of Future Designs, Inc. -
Page 3: Table Of Contents
ΣYG-S7G2-SOM User’s Manual Table of Contents Important Legal Information ............................ 2 ΣyG-S7G2 System on Module (SOM) Overview ..................... 4 1.1 Introduction .............................. 4 1.2 ESD Warning .............................. 4 1.3 Renesas Synergy S7G2 Microcontoller Block Diagram ................ 5 1.4 ΣyG-S7G2 SOM System Block Diagram ..................... 6 1.5 Requirements .............................. 7 1.6 ... -
Page 4: Σyg-S7G2 System On Module (Som) Overview
SODIMM. The ΣyG-S7G2 SOM uses an industry standard 200- pin SODIMM interface and is compatible with FDI’s ΣyG Modular Development LCD Kits. It can also be used for custom platform development or customer applications. -
Page 5: Renesas Synergy S7G2 Microcontoller Block Diagram
ΣYG-S7G2-SOM User’s Manual 1.3 Renesas Synergy S7G2 Microcontoller Block Diagram Figure 1: S7G2 System Block Diagram Copyright ©2015, 11/18/2015 Future Designs, Inc Page 5 of 17 ... -
Page 6: Σyg-S7G2 Som System Block Diagram
ΣYG-S7G2-SOM User’s Manual 1.4 ΣyG-S7G2 SOM System Block Diagram Figure 2: ΣYG-S7G2 Kit Block Diagram (4.3” display shown) Copyright ©2015, 11/18/2015 Future Designs, Inc Page 6 of 17 ... -
Page 7: Requirements
ΣYG-S7G2-SOM User’s Manual 1.5 Requirements The ΣyG-S7G2 SOM requires a development kit such as the ΣyG-S7G2 Modular Development Kit. Each yG development kit includes: • ΣyG-S7G2 System on Module (SOM) • Renesas Synergy Software Platform • Carrier Board • 5 VDC, 2.3A North American Power Supply •... -
Page 8: Tag Connect J7
ΣYG-S7G2-SOM User’s Manual Figure 3: ARM Mini JTAG 2.2 Tag Connect J7 Use the Tag Connect 10-pin cable to program and JTAG the ΣyG-S7G2 SOM using a Segger J-Link device. Cable: http://www.tag-connect.com/tc2050-arm2010 Cable: http://www.tag-connect.com/TC2050-IDC-NL Figure 4: Tag-Connect JTAG Copyright ©2015, 11/18/2015 Future Designs, Inc... -
Page 9: Microsd Socket J1
ΣYG-S7G2-SOM User’s Manual 2.3 MicroSD Socket J1 The ΣyG-S7G2 SOM utilizes a microSD for flexible mass storage. MicroSD flash cards are common, cost effective, and provides a large amount of user-changeable memory. Pin Number Description DAT2/RSV CD_DAT3/CS# CMD/SDI CLK/SCLK DAT0/SDO DAT1/RSV The microSD card must be removed using the spring loaded “push-pull”... -
Page 10: Inserting The Microsd Card Into The Microsd Socket
ΣYG-S7G2-SOM User’s Manual 2.3.1 : Inserting the microSD card into the microSD socket First, prepare to insert the microSD card into the Next, partially insert the card into the socket. socket by positioning it with its text facing up. Position the ridge, or “lip”, of the card furthest from the socket. -
Page 11: Removing The Microsd Card From The Microsd Socket
ΣYG-S7G2-SOM User’s Manual 2.3.2 : Removing the microSD card from the microSD socket Begin to remove the microSD card by gently Once the microSD card is ejected, it will pushing the card into the socket. The socket partially extend out from the socket. will “click”... -
Page 12: 200-Pin Somdimm Connector Details J4
ΣYG-S7G2-SOM User’s Manual 2.5 200-pin SOMDIMM Connector Details J4 SOMDIMM Signal Name Application Details SOMDIMM Connection Details ETH_TXP Ethernet Transmit Positive Output from KSZ8041 Ethernet PHY ETH_RXP Ethernet Receive Positive Output from KSZ8041 Ethernet PHY ETH_TXN Ethernet Transmit Negative Input to KSZ8041 Ethernet PHY ETH_RXN Ethernet Receive Negative... - Page 13 ΣYG-S7G2-SOM User’s Manual SOMDIMM Signal Name Application Details SOMDIMM Connection Details GPIO51_SPCK GPIO55 GPIO56_MOSI GPIO57_TXD GPIO / Serial Transmit Data – For Connected to S7G2 Port 0 bit 10 RS232 GPIO58_RXD GPIO / Serial Receive Data – For Connected to S7G2 Port 0 bit 11 RS232 Not connected DO NOT USE!
- Page 14 ΣYG-S7G2-SOM User’s Manual SOMDIMM Signal Name Application Details SOMDIMM Connection Details Not connected Unused Not connected Unused Not connected Unused Not connected Unused Not connected Unused Not connected Unused Not connected Unused 5.0V Power 5.0V Power Not connected Unused GPIO116 GPIO Connected to S7G2 Port 2 bit 14 / VOL_UD...
- Page 15 ΣYG-S7G2-SOM User’s Manual SOMDIMM Signal Name Application Details SOMDIMM Connection Details GPIO160_MD Not connected Unused GPIO162_NMI Not connected Unused Ground Ground 3.3V 3.3V Power Ground Not connected Unused Not connected Unused Not connected Unused Not connected Unused Not connected Unused Not connected Unused...
-
Page 16: Σyg-S7G2 System On Module Board Layout
ΣYG-S7G2-SOM User’s Manual ΣyG-S7G2 System on Module Board Layout 3.1 Schematics Visit this link for schematics of the SYG-S7G2-SOM: http://www.teamfdi.com/wp- content/uploads/SYG-S7G2-SOM.pdf 3.2 Mechanicals Figure 5: S7G2 Top Figure 6: S7G2 Bottom Copyright ©2015, 11/18/2015 Future Designs, Inc Page 16 of 17 ... -
Page 17: Support
ΣYG-S7G2-SOM User’s Manual Support 4.1 Where to Get Help Online technical support is available at http://www.teamfdi.com/support/. 4.2 Useful Links Future Designs, Inc. Forums: http://www.teamfdi.com/?post_type=forum SYG-S7G2-SOM Product Page: http://www.teamfdi.com/product-details/syg-s7g2-som/ Renesas Synergy: https://synergybeta.renesas.com/ SEGGER J-Link LITE: https://www.segger.com/jlink-lite-cortexm.html ...
