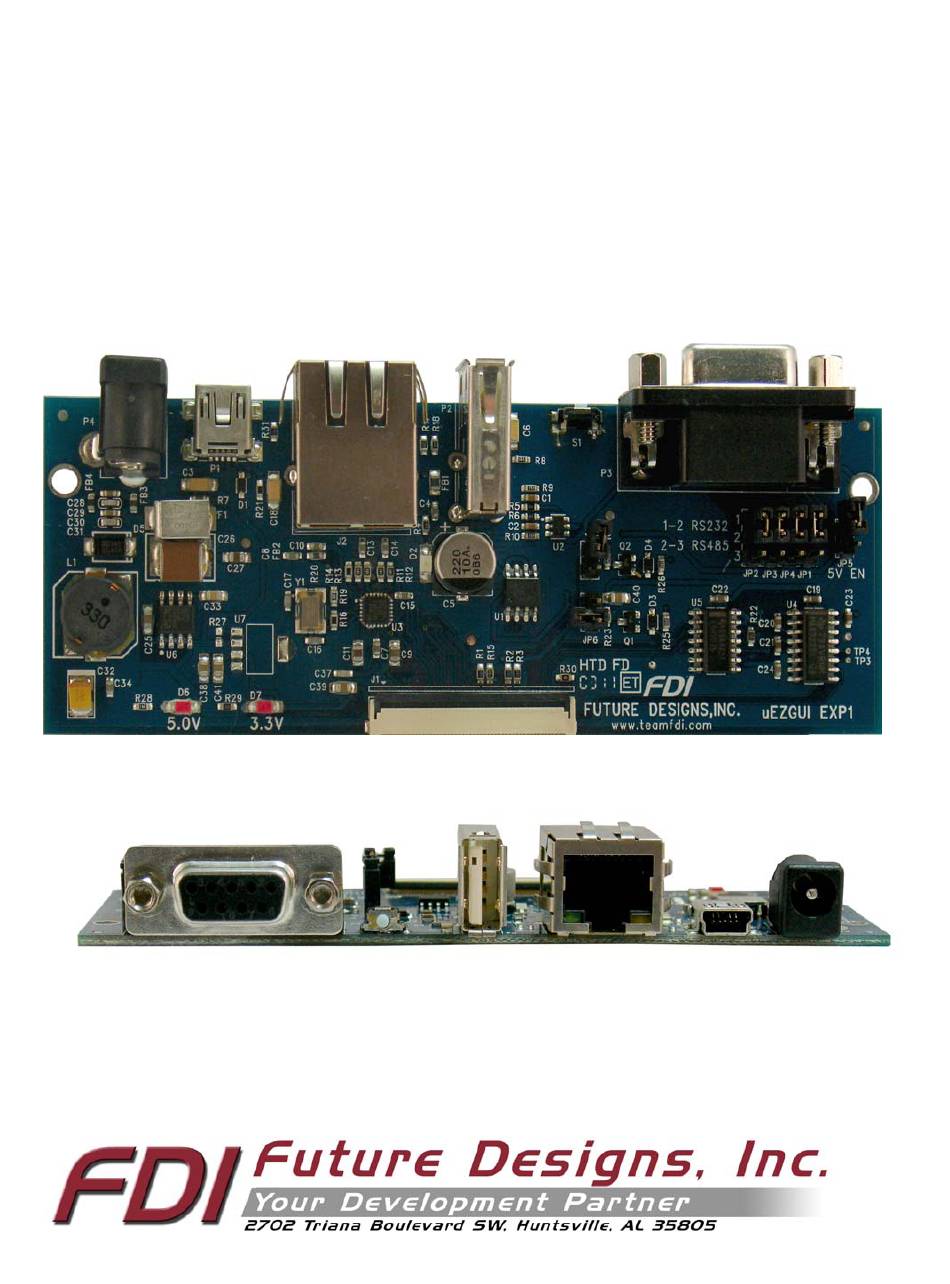

- Page 1 User’s Manual Copyright ©2010, Future Designs, Inc., All Rights Reserved ...
-
Page 2: Table Of Contents
Introduction _________________________________________________________________ 3 Functional Description _________________________________________________________ 3 Expansion Board Capabilities ____________________________________________________ 3 Expansion Connector __________________________________________________________ 3 Expansion Connector Cable Details _______________________________________________ 7 DC Power Input – P4 ___________________________________________________________ 8 Serial Port – P3 _______________________________________________________________ 8 USB Device – P1 ______________________________________________________________ 9 USB Host – P2 ________________________________________________________________ 9 Ethernet – J2 ________________________________________________________________ 10 Connecting to the uEZGUI Boards _______________________________________________ 10 Information in this document is provided solely to enable the use of Future Designs products. FDI assumes no liability whatsoever, including infringement of any patent or copyright. FDI reserves the right to make changes to these specifications at any time, without notice. No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the express written permission of Future Designs, Inc. 2702 Triana Blvd, Huntsville, AL 35805. For more information on FDI or our products please visit www.teamfdi.com. NOTE: The inclusion of vendor software products in this kit does not imply an endorsement of the product by Future Designs, Inc. 2011 Future Designs, Inc. All rights reserved. uEZ® is a registered trademark of Future Designs, Inc. ... -
Page 3: Introduction
Introduction The uEZGUI‐EXP‐1 is a quick and easy solution for adding additional hardware to the uEZGUI family of products. The uEZGUI‐EXP‐1 offers the hardware necessary for USB Host and Device, Ethernet, RS232, and RS485. Functional Description RS232/RS485 Serial communication USB Host and Device 10/100 Ethernet Expansion Board Capabilities The uEZGUI Expansion Board enhances the capabilities of the standard uEZGUI board to include additional IO capabilities. The Expansion Board is connected to the uEZGUI main board via a 50pin FPC cable. Expansion Connector The uEZGUI‐2478‐43WQS includes a 50 pin FPC Expansion Connector that provides a wide variety of capabilities for user expansion, ranging from 10/100 Ethernet to USB Host, etc. The table below provides the pin out and signal names available on this connector:... - Page 4 Pin # Pin Name Pin Description Input/output 1 Ground (GND) Power P0[11] ‐ General purpose digital input/output pin. Input/output 2 P0.11_RXD2_SCL2_MAT3 RXD2 ‐ Receiver input for UART2. Input SCL2 ‐ I2C2 clock input/output (this is not an open‐drain pin) Input/output MAT3[1] ‐Match output for Timer3, channel 1. Output P0[10] ‐ General purpose digital input/output pin. Input/Output 3 P0.10_TXD2_SDA2_MAT3 SDA2 ‐ I2C2 data input/output (this is not an open‐drain pin). Input/Output MAT3[0] ‐...
- Page 5 P0[9] ‐General purpose digital input/output pin Input/Output 16 P0.9_I2STX_SDA_MOSI1_ I2STX_SDA ‐ I2S transmit data. It is driven by the transmitter and MAT2.3 read by the receiver. Corresponds to the signal SD in the I2S‐bus specification. Input/Output MAT2[3] ‐ Match output for Timer 2, channel 3 Output MOSI1 ‐ Master Out Slave In for SSP1. Input/Output P0[8] ‐General purpose digital input/output pin. Input/Output I2STX_WS ‐ I2S Transmit word select. It is driven by the master and Input/Output received by the slave. Corresponds to the signal WS in the I2S‐bus P0.8_I2STX_WS_MISO1_ specification. ...
- Page 6 External reset input: A LOW on this pin resets the device, causing I/O 23 RESET_IN ports and peripherals to take on their default states, and processor execution to begin at address 0. TTL with hysteresis, 5 V tolerant Input 24 RESET_OUT RSTOUT ‐ This is a 3.3 V pin. LOW on this pin indicates LPC2478 being Output in Reset state P0[26] General purpose digital input/output pin. Input 25 P0.26_AD03_AOUT_RXD3 AD0[3] ‐ A/D converter 0, input 3. Output AOUT ‐ D/A converter output. Input RXD3 ‐ Receiver input for UART3 Input/Output P1[31] – General purpose digital input/output pin. Input/Output 26 P1.31_SCK1_AD0.5 SCK1 ‐ Serial Clock for SSP1.
-
Page 7: Expansion Connector Cable Details
P0[31] ‐ General purpose digital input/output pin. Input/Output 43 USBD_DP USB_D+2 ‐ USB port 2 bidirectional D+ line Input/Output 44 USBD_DM USB_D‐2 ‐ USB port 2 bidirectional D ‐line Input/Output P1[30] ‐ General purpose digital input/output pin. Input/Output USB_PWRD2 ‐ Power Status for USB port 2. Input 45 USBD_VBUS VBUS ‐ Monitors the presence of USB bus power. Note: This signal Input must be HIGH for USB reset to occur. I ‐ AD0[4] ‐ A/D converter 0, input 4 46 5volts (5VO) 5.0 Volts DC Power 47 5volts (5VO) 5.0 Volts DC Power 48 ... -
Page 8: Dc Power Input - P4
DC Power Input – P4 The uEZGUI‐EXP1 supports a 7VDC‐24VDC 1A (min) Power Supply. The connector is 2.1mm with center positive. Pin Number Description 7VDC to 24VDC, +/‐ 10%, 1 1.0A (min) 2 Power Supply Ground Serial Port – P3 The uEZGUI‐EXP1 Board includes one female DB9 Serial Port Connector. This connector may operate in either RS232 or RS485 (Full‐duplex) interface levels depending on jumper settings of JP1 through JP4. Jumpers JP1 – JP4 select the operating mode of the serial port; Jumper 1‐2 for RS232 levels, using UART0 Jumper 2‐3 for RS485 levels, using UART1 When operating as RS232, the serial port may also be optionally configured to support ISP programming of the LPC2478 using FlashMagic Software. To enable ISP programming, jumper JP6 & JP7 must be loaded. Note that with these jumpers loaded, operation of the LPC2478 may be affected by the RS232 interface signals. Refer to the FlashMagic user manual for details. Pin Number RS485 Mode RS232 Mode 1 No Connect No Connect 2 485_RDB‐ TXD (Output) 3 485_TDA+ RXD (Input) 4 ... -
Page 9: Usb Device - P1
USB Device – P1 The UEZGUI‐EXP1 Board includes one USB Device Interface allowing the unit to be connected to a USB Host, such as a PC. Through this connection, the uEZGUI represents a peripheral to the USB Host. The operational mode of the port is dependent on the software utilized (i.e. Mass Storage or Human‐ Interface). Note: The USB Device connector of the Expansion Board is connected in parallel to the USB Device connector of the uEZGUI Main board. To avoid damage or improper operation, do not connect both of these at the same time. The UEZGUI‐EXP1 Board may also be powered via the USB Device connector. Care must be taken to not overload the USB Host since 500mA is the maximum current allowable via USB. Pin Number Description 1 USB 5V 2 D‐ 3 D+ 4 NC 5 Signal Ground USB Host – P2 The uEZGUI‐EXP1 Board includes one USB Host Port allowing the unit to interface to various USB peripherals such as a USB Flash Drive (Thumb Drive). The operational mode of this port is dependent on the software utilized (i.e. driver support) Pin Number Description 1 USB VBus 2 ... -
Page 10: Ethernet - J2
Ethernet – J2 The UEZGUI‐EXP1 Board includes one 10/100 Ethernet Port to interface to a local area network via CAT5 cable. Please refer to the specific details of the LPC2478 processor being utilized for support of the Ethernet Port function. Pin Number Description 1 Tx+ 2 Tx‐ 3 Rx+ 4 75 ohm terminated 5 75 ohm terminated 6 Rx‐ 7 75 ohm terminated 8 75 ohm terminated Connecting to the uEZGUI Boards uEZGUI‐2478‐43WQS with uEZGUI‐EXP1 ... - Page 11 uEZGUI‐2478‐70WVE with uEZGUI‐EXP1 uEZGUI‐2478‐43WQS with uEZGUI‐EXP1 mounted in OEM Housing ...
