Summary of Contents for Heathrow Scientific 1208 Series

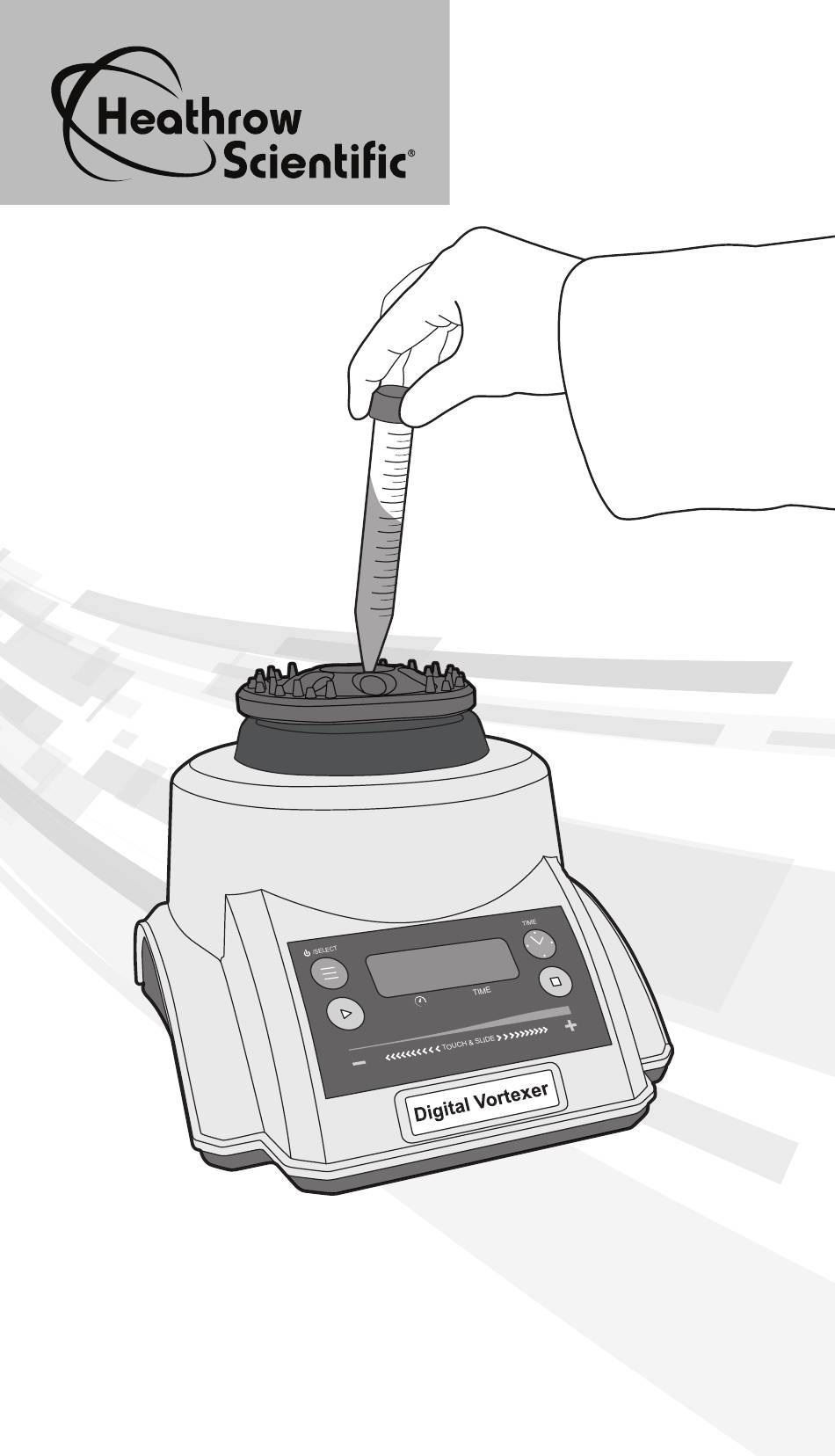

- Page 1 Digital Vortexer Instruction Manual...
-
Page 2: Table Of Contents
Table of Contents Safety Precautions ............. 3 Technical Data Supplied Equipment ............5 Environmental Ratings ............6 Compliance Guidelines ............. 7 EC Declaration of Conformity ........... 8 UKCA Declaration of Conformity ........9 Display ................10 Operation ................ 11 Troubleshooting .............. 12 Maintenance .............. -
Page 3: Safety Precautions
Safety Precautions This vortex unit is intended for use as a general-purpose laboratory instrument for the mixing together or agitating different compounds for laboratory purposes. This vortex unit is intended to be operated by laboratory personnel. This instruction manual cannot address all safety hazards. It is the responsibility of the user to consult and observe all health and safety precautions and to assess the instrument’s suitability to the task. - Page 4 21. Opening the instrument housing or improper use of the instrument voids the warranty. If there is a failure during the warranty period, contact Heathrow Scientific® LLC for warranty service. 22. Do not attempt to use units that have not been correctly installed or repaired.
-
Page 5: Technical Data Supplied Equipment
Warning! Check MSDS, wear required Personal Protective Equipment, and observe all applicable local and national regulations before dispensing and disposing of hazardous sample. Warning! The laboratory procedure should ensure that no person or hazardous substances are present within a 24” zone around the device when operating. -
Page 6: Environmental Ratings
Environmental Ratings: Note: For Indoor use Altitude: Up to 2,000 m, Atmospheric Pressure: 80kPA – 107kPA Operating Temperature: 2°C to 40°C Maximum Relative Humidity: 80% RH up to 31°C decreasing linearly to 50% RH at 40°C Environmental Storage and Transport Conditions: Storage temperature: -20°C –... -
Page 7: Compliance Guidelines
Warning! When plugging the power adapter into any outlet/socket. Only use grounded (earthed) electrical outlets/sockets. Compliance Guidelines: This mark is the confirmation that the unit conforms to the EU guidelines and has been tested according to the following EU Declaration of Conformity. Conforms to: Safety Standards and Directives: EN/IEC 61010-1:2010 + A1:2019... -
Page 8: Ec Declaration Of Conformity
EC Declaration Of Conformity Manufacturer: Heathrow Scientific® LLC, 620 Lakeview Parkway, Vernon Hills, IL 60061 USA European Contact: Emergo, Europe, Princessegracht 20, 2514AP, The Hague, The Netherlands Product: Digital Vortexer Product Model No(s): 120805, 120806, and 1208XX (XX = “00 – 04” or “07 – 50”) -
Page 9: Ukca Declaration Of Conformity
UKCA Declaration Of Conformity Manufacturer: Heathrow Scientific® LLC, 620 Lakeview Parkway, Vernon Hills, IL 60061 USA European Contact: Emergo Consulting (UK) Ltd., Compass House, Viston Park Histon, Cambridge CB24 9BZ Product: Digital Vortexer Product Model No(s): 120805, 120806, and 1208XX (XX = “00 – 04” or “07 – 50”) -
Page 10: Display

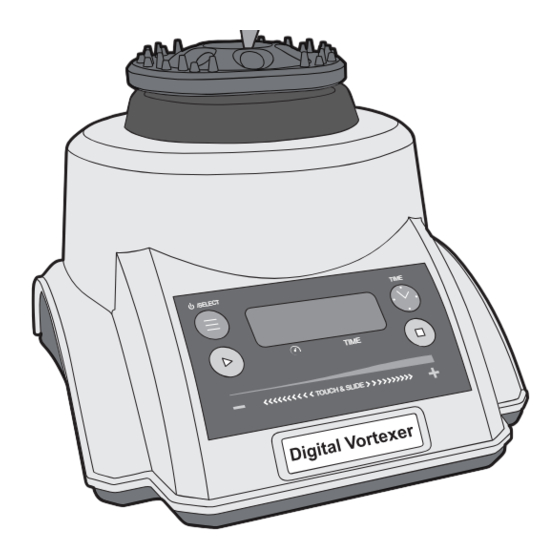

Display 1. Power and Select 4. Stop 2. Play Button (used to start unit) 5. Touch & Slide to increase or 3. Time Control decrease current selection Electric Plug Location Plug power cord in bottom center of unit as shown below. -
Page 11: Operation
Operation 1. Remove the contents from the package examining them carefully for breakage, defects or missing parts. 2. Place the product on a clean sturdy, level surface at least 12” (30 cm) away from the edge of the counter and other moving equip- ment. - Page 12 Operating Instructions 1. Make sure unit is on acceptable work surface and connect to power, unit will produce an audible beep when it is connected to power. 2. Display will show program mode, speed in rpm, and time. 3. For continuous mode press Play and the unit will turn on. 4.
-
Page 13: Troubleshooting
Troubleshooting Trouble Resolution No power present - Verify that the proper AC input power cord is securely plugged into the power adapter. - Verify that the proper AC input power cord is fully plugged into a powered wall outlet. A blue indicator light will illuminate on the power adapter indicating that it has power. -
Page 14: Warranty
® UNDER THIS WARRANTY EXCEED THE PRICE OF THE PRODUCT. Limited Warranty Heathrow Scientific® LLC warrants that your Vortex Unit will be free from defects in workmanship and material for five years from the date of purchase. If you believe that there is a defect in the product, you must, during the warranty period, notify Heathrow Scientific®... -
Page 15: Return For Repair
Transporting hazardous materials without a permit is a violation of federal law. Heathrow Scientific® LLC will not accept any product return that is not appropriately cleaned and decontaminated. In the unlikely event of repair, or when damage to the unit necessitates return, contact Heathrow Scientific®... - Page 16 620 Lakeview Parkway • Vernon Hills, IL 60061 Phone: 1-847-816-5070 • Fax: 1-847-816-5072 Email: info@heatsci.com Web: www.heathrowscientific.com All rights reserved. 02/2024 ©Heathrow Scientific® LLC...
