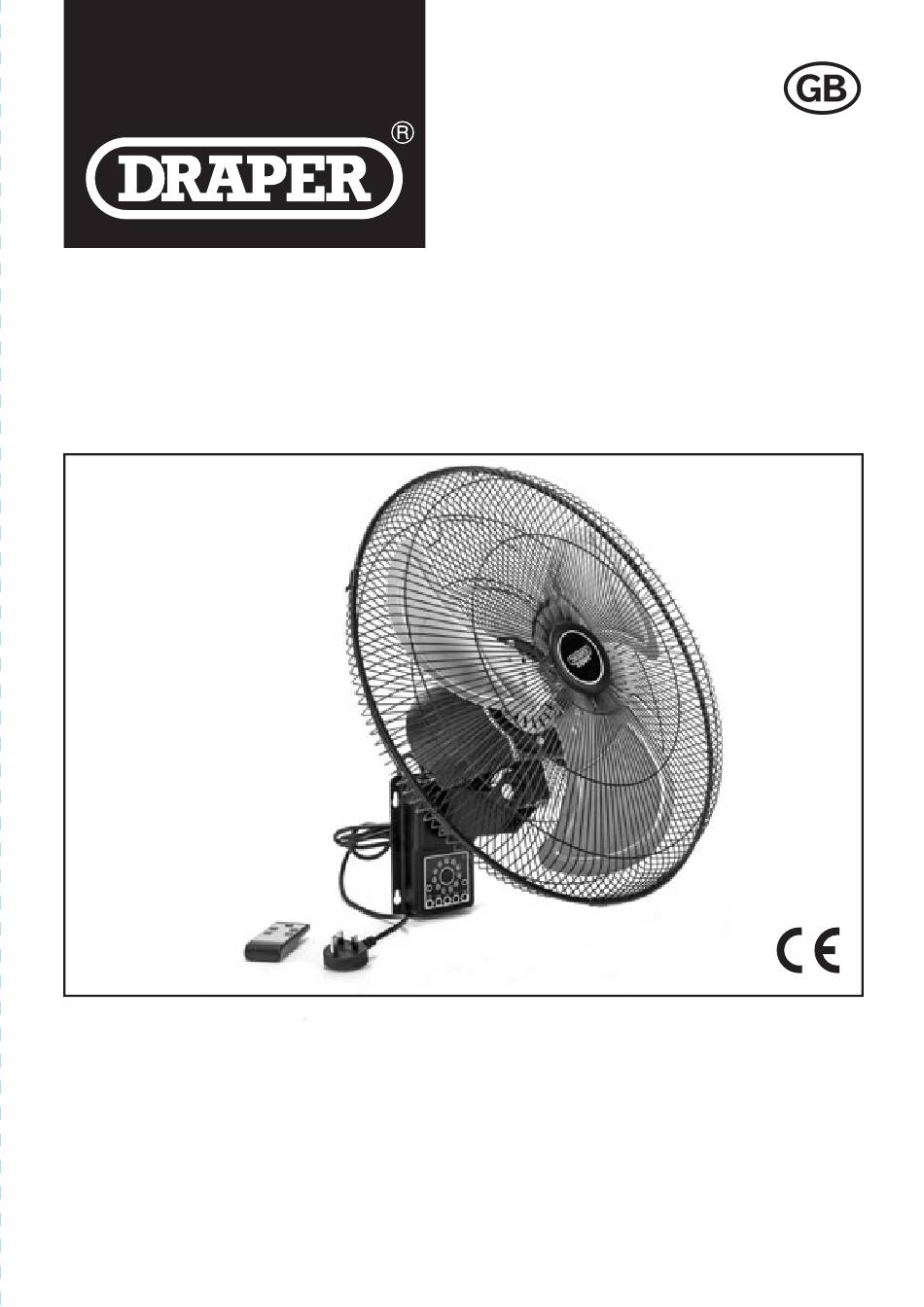

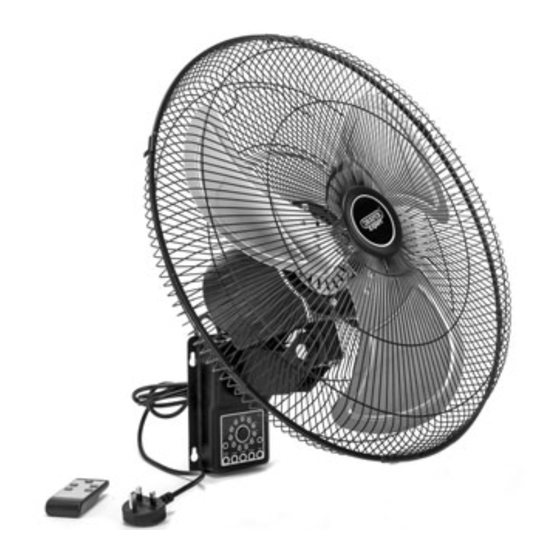

20" WALL MOUNTED
FAN
09433
These instructions accompanying the product are the original instructions. This document is part of the product,
keep it for the life of the product passing it on to any subsequent holder of the product. Read all these
instructions before assembling, operating or maintaining this product.
This manual has been compiled by Draper Tools describing the purpose for which the product has been
designed, and contains all the necessary information to ensure its correct and safe use. By following all the
general safety instructions contained in this manual, it will ensure both product and operator safety, together
with longer life of the product itself.
AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the
product.
Whilst every effort has been made to ensure the accuracy of information contained in this manual, the Draper
Tools policy of continuous improvement determines the right to make modifications without prior warning.
Advertisement
Table of Contents
Related Manuals for Draper 09433
Summary of Contents for Draper 09433
- Page 1 AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.
-
Page 2: Title Page 1.1 Introduction
Commercial copying, redistribution, hiring or lending is prohibited. No part of this publication may be stored in a retrieval system or transmitted in any other form or means without written permission from Draper Tools Limited. In all cases this copyright notice must remain intact. -
Page 3: Table Of Contents
CONTENTS 1. TITLE PAGE 1.1 INTRODUCTION......................2 1.2 REVISION HISTORY ....................2 1.3 UNDERSTANDING THIS MANUAL ................2 1.4 COPYRIGHT NOTICE ....................2 2. CONTENTS 2.1 CONTENTS ........................3 3. GUARANTEE 3.1 GUARANTEE ....................... 4 INTRODUCTION 4.1 SCOPE......................... 5 4.2 SPECIFICATION ......................5 4.3 HANDLING &... -
Page 4: Guarantee
This guarantee applies in lieu of any other guarantee expressed or implied and variations of its terms are not authorised. Your Draper guarantee is not effective unless you can produce upon request a dated receipt or invoice to verify your proof of purchase within the guarantee period. -
Page 5: Introduction
INTRODUCTION 4.1 SCOPE Wall mounted fan for circulating air, ideal for use in and around the office or workshop. 4.2 SPECIFICATION Stock No........................... 09433 Part No...........................HVW20 Rated voltage ........................220-240V Rated frequency.........................50Hz Rated input ..........................130W Diameter Ø ............................20"... -
Page 6: Health And Safety Information
HEALTH AND SAFETY INFORMATION 5.1 GENERAL SAFETY INSTRUCTIONS FOR POWER TOOL USE When using any type of power tool there are steps that should be taken to make sure that you, as the user, remain safe. Common sense and a respect for the tool will help reduce the risk of injury. Read the instruction manual fully. -
Page 7: Additional Safety Instructions For Fans
Warning: Please read the following instructions carefully, failure to do so could lead to serious personal injury. Draper Tools Ltd., recommends that this fan not be modified or used for any application other than that for which is was designed. If you are unsure of its relative applications, do not hesitate to contact us in writing and we will advise you. -
Page 8: Technical Description
TECHNICAL DESCRIPTION 6.1 IDENTIFICATION Remote control. Rear grille. Clips. Handle. Front grille. Fan blade. Fan body controller. - 8 -... -
Page 9: Unpacking And Checking
Lay the contents out and check them against the parts shown below. If any part is damaged or missing; please contact the Draper Helpline (the telephone number appears on the Title page) and do not attempt to use the machine. -
Page 10: Assembling The Fan
ASSEMBLING THE FAN 8.1 ASSEMBLING THE FAN Remove the four fan guard retaining screws from the front of the motor body, then use them to secure the rear fan guard to the motor body. Loosen the fan blade grub screw on the fan centre hub. Locate the machined flat on the motor spindle. -
Page 11: Mounting On The Wall
ASSEMBLING THE FAN 8.2 MOUNTING ON THE WALL The fan must be correctly installed before use. Caution: to prevent the fan from falling off, do not install it on walls that are unable to correctly support the weight and load of the fan unit. If in any doubt seek advice from an appropriately qualified person. -
Page 12: Fan Instruction
FAN INSTRUCTION 9.1 REMOTE CONTROL OPERATION ON/OFF The button is for switching on the fan. The fan will be started at the speed that was last switched off. Press this button again and the fan will be switched off. TIMER button When this button is touched repeatedly or kept in pressed state, the fan timer will be set for continuous operation during increased steps of 0.5 hour to 7.5 hour in 15 steps. -
Page 13: Use Of Remote Control
FAN INSTRUCTION 9.2 USE OF REMOTE CONTROL Point the remote a the body of the fan and press the required buttons to operate. The remote will work up to approximately 5 meters from the receiver on the fan and up to a 30 degree angle right and left of the fan body. -
Page 14: Maintenance
10. MAINTENANCE Always unplug the fan from the power supply before cleaning. All plastic components should be cleaned with a damp cloth. DO NOT spray with water/cleaning agents or immerse the fan unit in water. Warning: Ensure that any water and/or cleaning detergent DOES NOT enter the motor housing or switch mechanism. -
Page 15: Explanation Of Symbols
11. EXPLANATION OF SYMBOLS 11.1 EXPLANATION OF SYMBOLS Do not dispose of WEEE* unsorted municipal waste. Class I construction (Earthed). - 15 -... -
Page 16: Disposal
12. DISPOSAL 12.1 DISPOSAL – At the end of the machine’s working life, or when it can no longer be repaired, ensure that it is disposed of according to national regulations. – Contact your local authority for details of collection schemes in your area. In all circumstances: •... - Page 17 NOTES - 17 -...
- Page 18 NOTES - 18 -...
- Page 19 NOTES - 19 -...
- Page 20 ©Published by Draper Tools Limited. No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or by any means, electronic, mechanical photocopying, recording or otherwise without prior permission in writing from Draper Tools Ltd.
