- Page 1 1133.3YW 1133.3YX INSTRUCTION MANUAL BUILT-IN ELECTRIC OVEN IOAK-1961 / 8050931 (02.2013./1)
- Page 2 DEAR CUSTOMER, The oven is exceptionally easy to use and extremely efficient. After reading the instruction manual, operating the oven will be easy. Before being packaged and leaving the manufacturer, the oven was thoroughly checked with regard to safety and functionality. Before using the appliance, please read the instruction manual carefully.
-
Page 3: Table Of Contents
TABLE Of CONTENTS Safety instructions ......................4 Description of the appliance ..................... 8 Installation ......................... 10 Operation ........................... 12 Baking in the oven – practical hints ................16 Cleaning and maintenance ....................18 Technical data ........................23... -
Page 4: Safety Instructions
SAfETY INSTRUCTIONS Warning: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or... - Page 5 SAfETY INSTRUCTIONS Warning: Ensure that the appliance is switched off before replacing the lamp to avoid the possibillity of electric shock. You should not use steam cleaning devices to clean the appliance. ● Ensure that small items of household equipment, including connection leads, do not touch the hot oven as the insulation material of this equipment is usually not resistant to high temperatures. ● Do not leave the oven unattended when frying. Oils and fats may catch fire due to overheating or boiling over. ● Do not put pans weighing over 15 kg on the opened door of the oven. ● Do not use harsh cleaning agents or sharp metal objects to clean the door as they can scratch the surface, which could then result in the glass cracking.
- Page 6 HOW TO SAVE ENERGY Using energy in a respon- sible way not only saves money but also helps the environment. So let’s save energy! And this is how you can do it: Do not uncover the pan too often (a watched pot never boils!).
- Page 7 DISPOSAL Of THE APPLIANCE UNPACKING During transportation, protec- Old appliances should not sim- tive packaging was used to ply be disposed of with normal protect the appliance against household waste, but should any damage. After unpacking, be delivered to a collection and please dispose of all elements recycling centre for electric and of packaging in a way that will...
-
Page 8: Description Of The Appliance

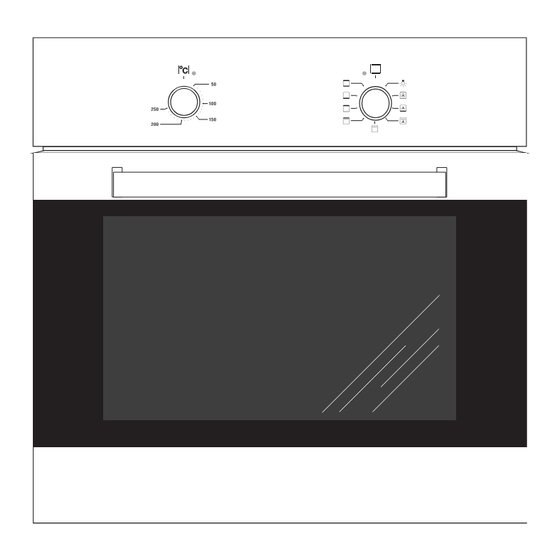

DESCRIPTION Of THE APPLIANCE Oven operation pilot Temperature regula- light tor pilot light Temperature adjust- Oven function ment knob selector knob... - Page 9 SPECIfICATIONS Of THE APPLIANCE Cooker fittings: Grill grate Baking tray (drying rack)* Fork and rotisserie frame* Roasting tray* *optional...
-
Page 10: Installation
INSTALLATION Installing the oven The kitchen area should be dry and aired and equipped with efficient ventillation. When installing the oven, easy access to all control elements should be ensured. This is a Y–type design built–in oven, which means that its back wall and one side wall can be placed next to a high piece of furniture or a wall. - Page 11 INSTALLATION Electrical connection 230V 1N~ Warning: This appliance must be earthed. The appliance must be installed by a com- Neutral petent electrician using a double pole control (Black or Blue) unit of 16 ampere minimum capacity with Earth 3mm minimum contact separation at all (Green/Yellow poles.
-
Page 12: Operation
OPERATION Before using the oven for the first time Remove packaging, clean the interior of the oven, Take out and wash the oven fittings with warm water and a little washing-up liqu- Switch on the ventilation in the room or open a window, Gently press the knob and turn it right to position (see section: elec- tronic programmer operation and oven... - Page 13 OPERATION Possible knob positions Oven functions and operation. Oven is off Oven with automatic air circulation (including a fan and an ultra-fan heater). Independent oven lighting Set the knob in this position to light up The oven can be heated up using the bot- the oven interior.
- Page 14 OPERATION Top heater on Convection roasting Setting the knob to this position allows In this knob setting, the oven’s co- the oven to be heated only by the top nvection roasting function is on. In this heater. Browning on top, finishing mode the roasting process is speeded baking, grilling up, which enhances the taste of a...
- Page 15 OPERATION Use of the grill The grilling process operates through infrared rays emitted onto the dish by the incandes- cent grill heater. In order to switch on the grill you need to: Set the oven knob to the position marked grill.
-
Page 16: Baking In The Oven - Practical Hints
BAKING IN THE OVEN – PRACTICAL HINTS Baking we recommend using the baking trays which were provided with your cooker; it is also possible to bake in cake tins and trays bought elsewhere which should be put on the drying rack; for baking it is better to use black trays which conduct heat better and shorten the baking time;... - Page 17 BAKING IN THE OVEN – PRACTICAL HINTS Type Oven Temperature Level Time in minutes functions dish 160 - 200 2 - 3 30 - 50 160 - 180 20 - 40* 140 - 160 10 - 40* 200 - 230 1 - 3 10 - 20 210 - 220...
-
Page 18: Cleaning And Maintenance
CLEANING AND MAINTENANCE By ensuring proper cleaning and mainte- Replacement of the oven light bulb nance of your cooker you can have a sig- nificant influence on the continuing fault-free In order to avoid the possibility of an operation of your appliance. electric shock ensure that the appliance is switched off before replacing the bulb. - Page 19 CLEANING AND MAINTENANCE Dismounting the side racks Ovens marked with the letter D* are equipped with easily removable wire guides (side racks) of oven inserts. To remove them for washing purposes, pull the front catch (Z1), then tilt the guide and remove it from the rear catch (Z2).
- Page 20 CLEANING AND MAINTENANCE Removing the inner panel Door removal 1. Using a flat screwdriver unhook the up- per door slat, prying it gently on the sides In order to obtain easier access to the oven (fig. B). chamber for cleaning, it is possible to remove 2. Pull the upper door slat loose. (fig. B, C) the door.
- Page 21 CLEANING AND MAINTENANCE 3. Pull the inner glass panel from its seat Regular inspections (in the lower section of the door). Re- move the inner panel (fig. D). Besides keeping the oven clean, you 4. Clean the panel with warm water with should: some cleaning agent added. ● carry out periodic inspections of the con- Carry out the same in reverse order to trol elements and cooking units of the...
- Page 22 OPERATION IN CASE Of EMERGENCY In the event of an emergency, you should: switch off all working units of the cooker disconnect the mains plug call the service centre some minor faults can be fixed by referring to the instructions given in the table below. Before calling the customer support centre or the service centre check the following points that are presented in the table.
-
Page 23: Technical Data
TECHNICAL DATA Electrical supply 220-240V ~50Hz Maximum load 3,3 kW Oven: bottom heater 1,3 kW top heater 0,9 kW grill 2,0 kW ultra-fan 2,0 kW Usable capacity of the oven* 56-60 litres Energy rating on the energy label Cooker dimensions H/W/D 59,5 / 59,5 / 57,5 cm Weight approx. - Page 24 Service Help Line 0844 815 8880 For the UK: please call 0818 46 46 46 For Ireland: please call...
