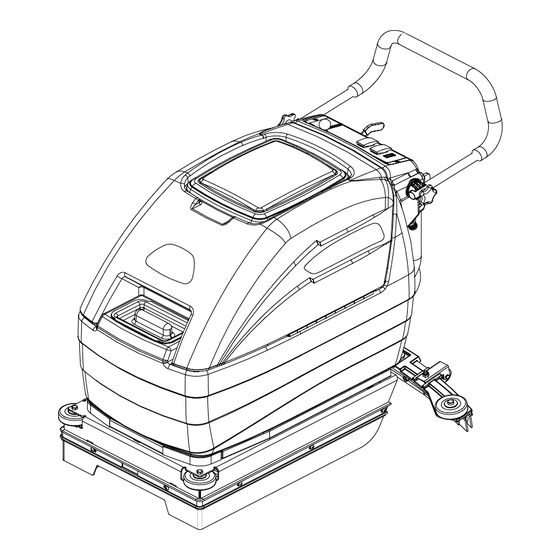

AUTOMATIC SCRUBBER
MODELS:
SCC172
10066320
SCHC172
10066330
QSCC172IS
10066080
AS17T
10066250
AS17I
10066240
G
86221970
PRV NO 980282
QSCC172
SCH172
10066300
86218900
HCC172
QSCC172IA
10066270
10066310
AS17
AS17B
10066210
10066220
AS17TH
AS17E
10066260
10066230
QSC172
10052700
Read these instructions before using the machine
IPX4
Advertisement
Table of Contents
Related Manuals for Windsor SCH172
Summary of Contents for Windsor SCH172
- Page 1 AUTOMATIC SCRUBBER MODELS: SCC172 QSCC172 SCH172 10066320 10066300 86218900 SCHC172 HCC172 QSCC172IA 10066330 10066270 10066310 QSCC172IS AS17 AS17B 10066080 10066210 10066220 AS17T AS17TH AS17E 10066250 10066260 10066230 AS17I QSC172 10066240 10052700 IPX4 Read these instructions before using the machine 86221970...
- Page 2 MACHINE DATA LOG/OVERVIEW MODEL _______________________________________ DATE OF PURCHASE __________________________ SERIAL NUMBER ______________________________ SALES REPRESENTATIVE # _____________________ YOUR DEALER Name: __________________________________________________________________________________________________ Address: _______________________________________________________________________________________________ Phone Number: _________________________________________________________________________________________ OVERVIEW The Automatic Scrubber is a battery powered, hard floor scrubber intended for commercial use. The appliance applies a cleaning solution onto a hard floor, scrubs the floor with a brush or pad, and then vacuums the soiled water back into the recovery tank.
-
Page 3: Table Of Contents
Filling Solution Tank........3-7 Wiring – Main Harness – SCHC172....5-37 Scrubbing............3-7 Wiring – Main Harness SCH172 ......5-39 Emptying & Cleaning Tanks......3-8 Wiring – Main Harness QSC172 ......5-41 Wiring – Schematic – all except QSC172, MAINTENANCE SCHC172 &... -
Page 4: How To Use This Manual
The MAINTENANCE section contains preventive maintenance to keep the machine and its Parts may be ordered from authorized Windsor components in good working condition. They are dealers. When placing an order for parts, the listed in this general order: machine model and machine serial number are important. -
Page 5: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS When using a battery powered appliance, basic precaution must always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE. To reduce the risk of fire, electric shock, or injury: Use only indoors. Do not use outdoors or expose to rain. Use only as described in this manual. -
Page 6: Hazard Intensity Level
WHEN SERVICING MACHINE: Avoid moving parts. Do not wear loose clothing; jackets, shirts, or sleeves when working on the machine. Use Windsor approved replacement parts. Batteries emit hydrogen gas. Explosion or fire can result. Keep sparks and open flame away. -
Page 7: Safety Label Location
SAFETY LABEL LOCATION NOTE: These drawings indicate the location of safety labels on the machine. If at any time the labels become illegible, promptly replace them. FLAMMABLE MATERIALS CAN CAUSE EXPLOSION OR FIRE. DO NOT USE OR PICK UP FLAMMABLE MATERIAL. -
Page 8: Technical Specifications
TECHNICAL SPECIFICATIONS ITEM DIMENSION/CAPACITY Rated Voltage 24 VDC Rated Amperage 30 Amps Batteries 2 x 12 Volt 105-130 AH Scrub Brush Motor 0.75hp (0.56 kw) Vacuum Motor 24 VDC 2 stage by pass Mass (GVW) 319 lbs (144.7 kg) Weight empty without batteries 142 lbs (64.4 kg) Solution Control Gravity feed, fully variable... - Page 9 TECHNICAL SPECIFICATIONS ITEM MEASURE Height 35 in (0.89 m) Length 42 in (1.07 m) Width without squeegee 20 in (0.51 m) Width of squeegee 31 in (0.79 m) Width of scrub path 17 in (0.43 m) Length Width Height SPECIAL NOTES: The A-weighted sound pressure level emitted by the The overall root-mean-squared acceleration at the appliance was measured to be 74.1 dBA.
-
Page 10: How The Machine Works
HOW THIS MACHINE WORKS This Automatic Scrubber is a battery powered, hard The function of the scrub system is to scrub the floor scrubber intended for commercial use. The floor. The scrub system consists of a rotary type appliance applies a cleaning solution onto a hard disk scrub brush, motor, and lift linkage. -
Page 11: Components
COMPONENTS 1. Control Panel 9. Solution Tank Drain Hose 2. Control Handle Solution Strainer 3. Recovery Tank Solution Tank Support Lanyard 4. Recovery Tank Drain Hose Squeegee 5. Recovery Tank Domel Vacuum Motor 6. Scrub Brush/Pad Solenoid Valve 7. Solution Tank 8. -
Page 12: Controls
CONTROLS Solution Control Lever Battery Charge Level Indicator Brush Switch Hour Meter Brush Lift Pedal Circuit Breaker Vacuum Switch Brush Reverse Switch Squeegee Lift Lever 86221970 17” SCRUBBER 01/03/07... - Page 13 CONTROLS 1. SOLUTION CONTROL LEVER 6. BATTERY CHARGE LEVEL INDICATOR Controls solution flow to scrub deck. Indicates the charge level of the batteries. To increase flow push the knob forward to the The meter display is divided into 10 vertical desired flow.
-
Page 14: Machine Operation
MACHINE OPERATIONS PRE-RUN MACHINE INSPECTION NORMAL SCRUBBING Do a pre-run inspection to find possible problems Plan the scrubbing pattern in advance. The longest that could cause poor performance or lost time from track is around the perimeter of the area to be breakdown. -
Page 15: Emptying & Cleaning Tanks
MACHINE OPERATION TO BEGIN SCRUBBING The length of time between the first and second pass depends on the amount of accumulation and the type of chemical being used. A second When operating the machine around people, pay scrubbing with the squeegee down, vacuum on and close attention for unexpected movement. -
Page 16: Maintenance
MAINTENANCE BATTERIES (WET CELL BATTERIES ONLY) When servicing machine, avoid contact with The batteries provide the power to operate the battery acid. machine. The batteries require regular maintenance to keep them operating at peak efficiency. The machine batteries will hold their charge for long Batteries emit hydrogen gas. -
Page 17: Checking Battery Specific Gravity
MAINTENANCE CHECKING BATTERY SPECIFIC GRAVITY TO CHARGE THE BATTERIES Use a hydrometer to check the battery specific gravity. When servicing machine, avoid contact with battery acid. Batteries emit hydrogen gas. Explosion or fire Battery Check can result. Keep sparks and open flame away. Keep covers open when charging. -
Page 18: Changing Batteries
MAINTENANCE MACHINES WITHOUT ONBOARD CHARGER CHANGING BATTERIES Use a 24 volt, 12 amp maximum output, DC charger Stop the machine in a clean area next to the which will automatically shut off when the batteries charger. Turn off machine. are fully charged to charge the two battery pack. FOR SAFETY: Before leaving or servicing the 1. -
Page 19: Scrub Brushes
MAINTENANCE SCRUB BRUSHES FINISHED FLOORS NOTE: All original equipment brushes are equipped Nylon bristles are used in a variety of applications on coated or uncoated surfaces. with “Perform Alert©”. This feature will tell the operator when it is time to replace the scrub brush. White Pads (Polishing) are used for dry polishing to “Perform Alert©”... -
Page 20: Replacing Or Removing Scrub Brushes
MAINTENANCE REPLACING OR REMOVING SCRUB BRUSHES SQUEEGEE BLADES The front squeegee blade allows solution to pass Turn the machine off. through channels in the blade into the squeegee assembly while maintaining vacuum to provide lift. FOR SAFETY: Before leaving or servicing the machine;... -
Page 21: Service Schedule
MAINTENANCE SERVICE SCHEDULE MAINTENANCE DAILY WEEKLY MONTHLY ANNUALLY Before Check battery acid level starting Check vac hose connections the work Clean the squeegee blades period Inspect brush or pad for debris: wire string, wear Inspect float ball screen End of work Drain &... -
Page 22: Squeegee
TROUBLESHOOTING PROBLEM CAUSE SOLUTION Poor or no water pick-up Debris caught on squeegee Remove debris Worn squeegee blades Replace squeegee blades Vacuum hose clogged Clear obstruction from hose Vacuum hose disconnected Reconnect vacuum hose from squeegee or recovery tank Vacuum hose damaged Replace vacuum hose Vacuum motor inlet screen Clean inlet screen... - Page 23 TROUBLESHOOTING PROBLEM CAUSE SOLUTION Little or no solution flow to the floor Solution tank empty Fill solution tank Solution flow turned off or set Turn on or increase flow too low setting Solution strainer plugged Clean solution strainer Solution hoses obstructed Clear obstruction from hose Solution solenoid valve Clean or replace...
- Page 24 NOTES: 86221970 17” SCRUBBER 01/03/07...
