Follow the prompts on the screen of the control unit. For those filters
t
where it is not possible to scan the barcode on either the filter itself or
the packaging, manual entry is provided in the Ambr
ware.
5.3
When using a hollow fiber filter, it is recommended to connect the tube set
to the filter on the bench prior to fitting the filter in the holder for easier
handling.
Procedure

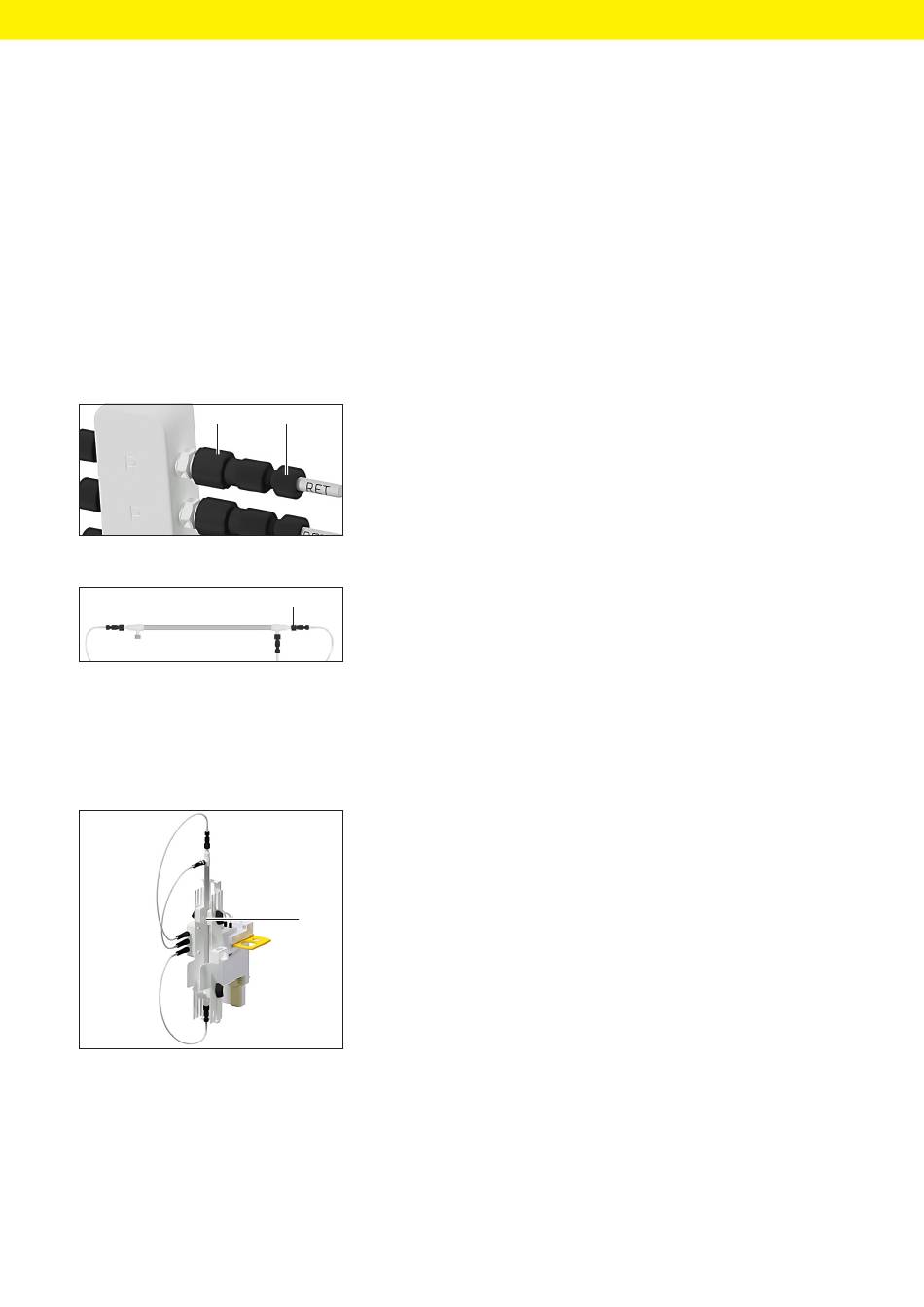

NOTICE Leaks due to loose compression fittings!
1 2
t
t
t
t
Use the correct length of retentate and permeate tubing for the chosen
t
filter (see chapter "3.2 Tube Length for Filters", page 10).
Engage the Luer fittings (1) into the corresponding ports of the filter.
1
t
Screw in the Luer lock rings on the Luer fittings.
t
Ensure the Luer fittings are engaged in the corresponding ports on the
t
filter, and tighten the Luer Lock rings.
The tubes are labeled "FEED", "RET" and "PERM". Ensure to connect the
t
correct tube to the correct port on the filter.
For some filters: Use Female Luer to Luer Lock connectors if required.
t
Blank off the unused permeate port on the filter (at the bottom, in par-
t
ticular the caps supplied with the Cytiva filter are not suitable, and use
the provided Female Luer threaded cap).
Clip the hollow fiber filter in the tube clips (1) provided on the 2 filter
t
clamps.
Ensure that the hollow fiber is pushed up as high as possible in the hold-
t
er to leave enough room for the feed tube at the bottom.
1
Hollow Fiber Filter: Connecting the Tube Set
to the Filter and the Tube Interface Block
When connecting | disconnecting tubing on the product, make sure
to only handle the Luer Lock ring part (1) of the connector.
Do not twist the threaded compression fittings (2).
If the threaded compression fitting gets accidentally undone, screw it
back on by hand and tighten as much as possible.
