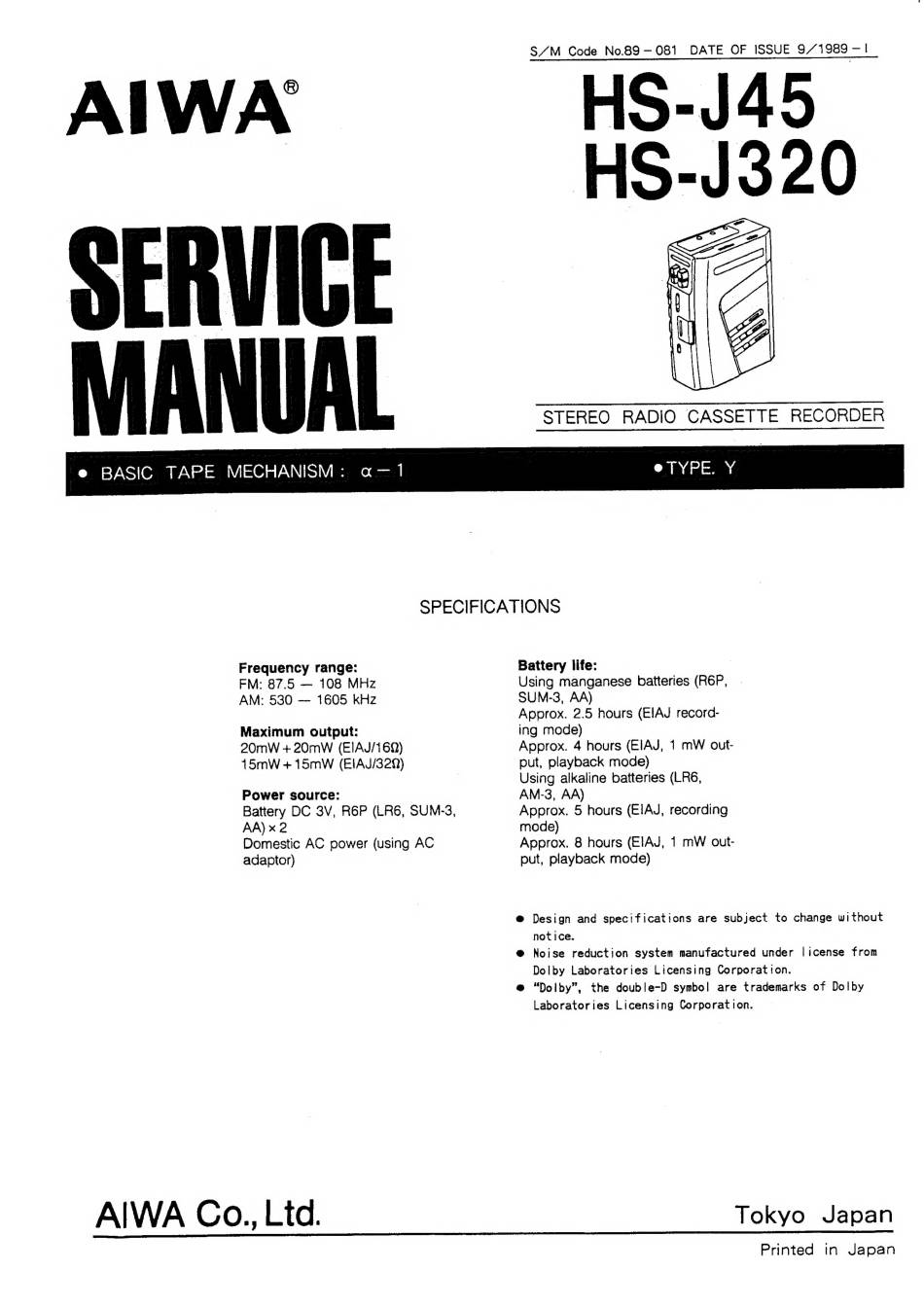

Aiwa HS-J45 Service Manual

HS-J49

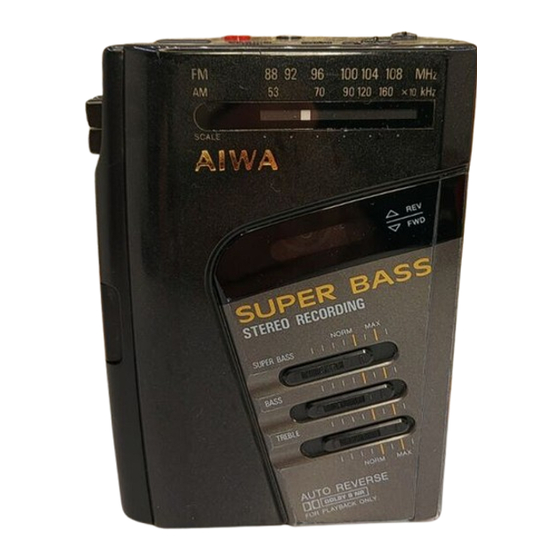

STEREO RADIO CASSETTE RECORDER
@e TYPE. Y
SPECIFICATIONS
Frequency range:
FM: 87.5 — 108 MHz
AM: 530 — 1605 kHz
Maximum output:
20mW + 20mW (EIAJ/1 6)
15mW + 15mW (EIAJ/320)
Power source:
Battery DC 3V, REP (LR6, SUM-3,
AA) x 2
Domestic AC power (using AC
adaptor)
Battery life:
Using manganese batteries (R6P,
SUM-3, AA)
Approx. 2.5 hours (ElAJ record-
ing mode)
Approx. 4 hours (EIAJ, 1 mW out-
put, playback mode)
Using alkaline batteries (LR6,
AM-3, AA)
Approx. 5 hours (EIAJ, recording
mode)
Approx. 8 hours (EIAJ, 1 mW out-
put, playback mode)
@ Design and specifications are subject to change without
notice.
@ Noise reduction system manufactured under license from
Dolby Laboratories Licensing Corporation.
@ "Dolby", the double-D symbol are trademarks of Dolby
Laboratories Licensing Corporation.
Tokyo Japan
Printed in Japan
