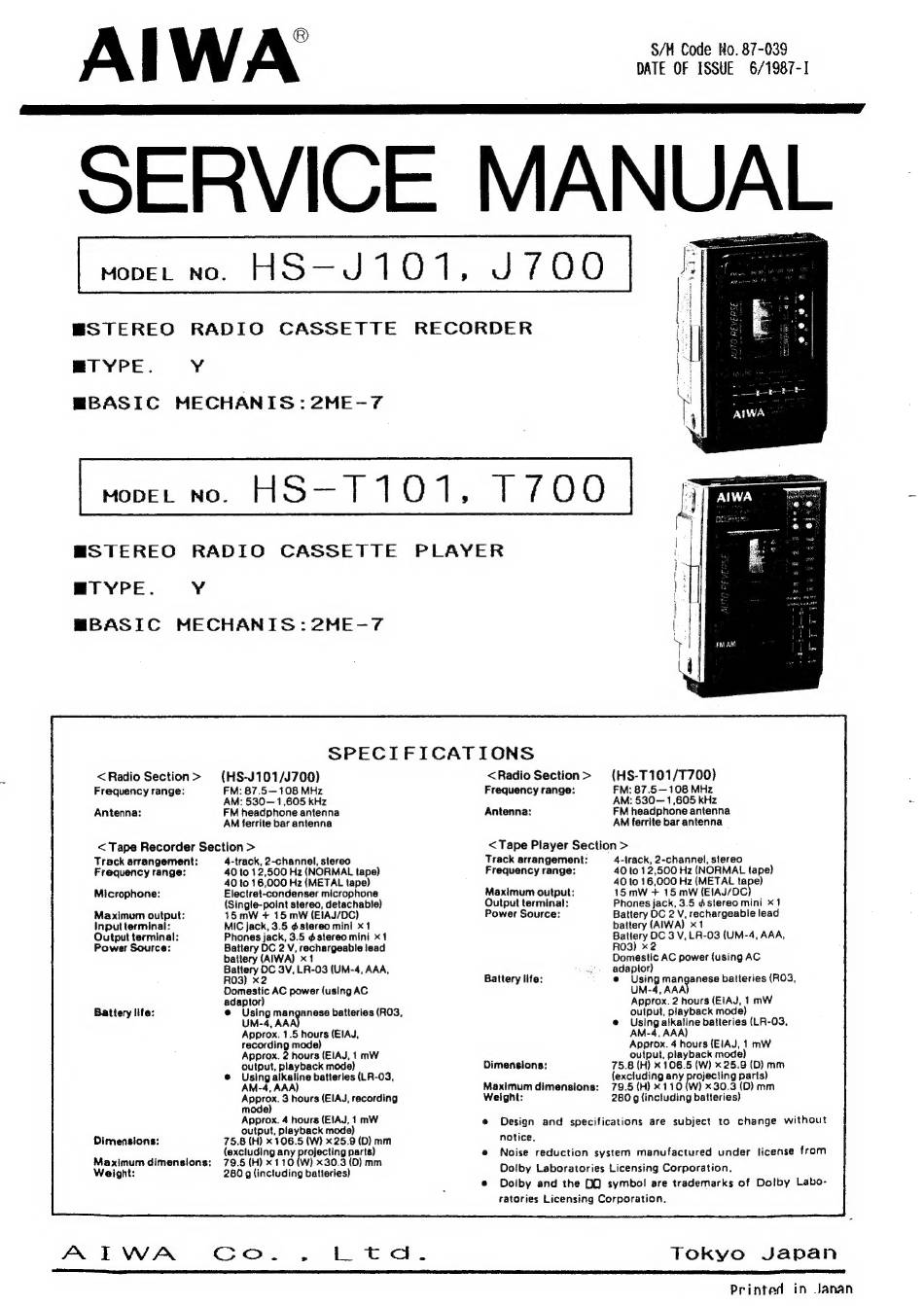

Aiwa HS-J101 Service Manual

AIWA
S/M Code Ho. 87-039
DATE OF ISSUE 6/1987-I
Mover no. HS-—J 1071, J /00
BSTEREO RADIO CASSETTE RECORDER
MTYPE. ¥
BBASIC MECHANIS: 2ME-7
wonver no. HS- T7107, 1 /00
BSTEREO RADIO CASSETTE PLAYER
MTYPE. Y
MBASIC MECHANIS: 2ME-7
SPECIFICATIONS
<Radio Section> (HS-J101/J700)
Frequency range: FM: 87.5—108 MHz
AM: 530— 1,605 kHz
Antenna: FM headphone antenna
AM ferrite bar antenna
< Tape Recorder Section >
Track arrangement: 4-track, 2-channel, stereo
Frequency range: 40 to 12,500 Hz (NORMAL tape)
40 to 16,000 Hz (METAL tape)
Microphone: Electret-condenser microphone
(Single-point stereo, detachable)
Maximum output: 15 mW + 15 mW (EIAJ/DC)
Input terminal: MIC jack, 3.5 ¢stereo mini x1
Output terminal: Phones jack, 3.5 ¢ stereo mini x1
Power Source: Battery DC 2 V, rechargeable lead
battery (AIWA) x1
Battery OC 3V, LR-03 (UM-4, AAA,
RO3) x2
Domestic AC power (using AC
adaptor)
@ Using manganese batteries (RO3,
UM-4, AAA
Approx. 1.5 hours (EIAJ,
recording mode)
Approx. 2 hours (ElAJ, 1 mW
output, playback mode)
Using alkaline batteries (LR-03,
AM-4, AAA)
Approx. 3 hours (EIAJ, recording
mode}
Approx. 4 hours (E1AJ, 1 mW
output, playback mode)
Dimensions: 75.8 (H) x 106.5 (W) x 25.9 (D) mm
(excluding any projecting parts)
Maximum dimensions: 79.5 (H) x 110 (W) x30.3 (D) mm
Weight: 280 g (including batteries)
Battery life:
FP ITI WA CFO. « hk ft -che
<Radio Section> (HS-T101/T700)
Frequency range: FM: 87.5—108 MHz
AM: 530— 1,605 kHz
Antenna: FM headphone antenna
AM ferrite bar antenna
<Tape Player Section >
Track arrangement: 4-track, 2-channel, stereo
Frequency range: 40 to 12,500 Hz (NORMAL tape)
40 to 16,000 Hz (METAL ae
Maximum output: 15 mW + 15 mW (EIAJ/DC
Output terminal: Phones jack, 3.5 @stereo mini «1
Power Source: Battery DC 2 V, rechargeable lead
battery (AIWA) x1
Battery DC 3 V, LA-03 (UM-4, AAA,
RO3) x2
Domestic AC power (using AC
adaptor)
e Using manganese batteries (RO3,
UM-4, AAA
Approx. 2 hours (EIAJ, 1 mW
output, playback mode)
Using alkaline batteries (LR-03,
AM-4, AAA)
Approx. 4 hours (EJAJ, 1 mw
output, playback mode)
Dimensions: 75.8 (H) x 106.5 (W) « 25.9 (D) mm
(excluding any projecting parts)
Maximum dimensions: 79.5 (H} x 110 (W) x30.3 (D) mm
Weight: 280 g (including batteries)
Battery life:
@ Design and specifications are subject to change without
notice.
Noise reduction system manufactured under license from
Doiby Laboratories Licensing Corporation.
Dolby and the 00 symbol! are trademarks of Dolby Labo-
ratories Licensing Corporation.
Tokyo Japan
Printed in Janan
