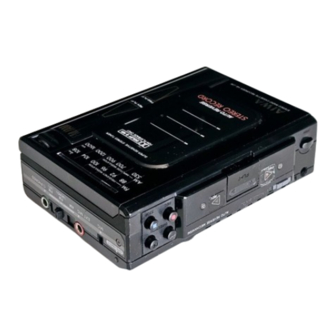

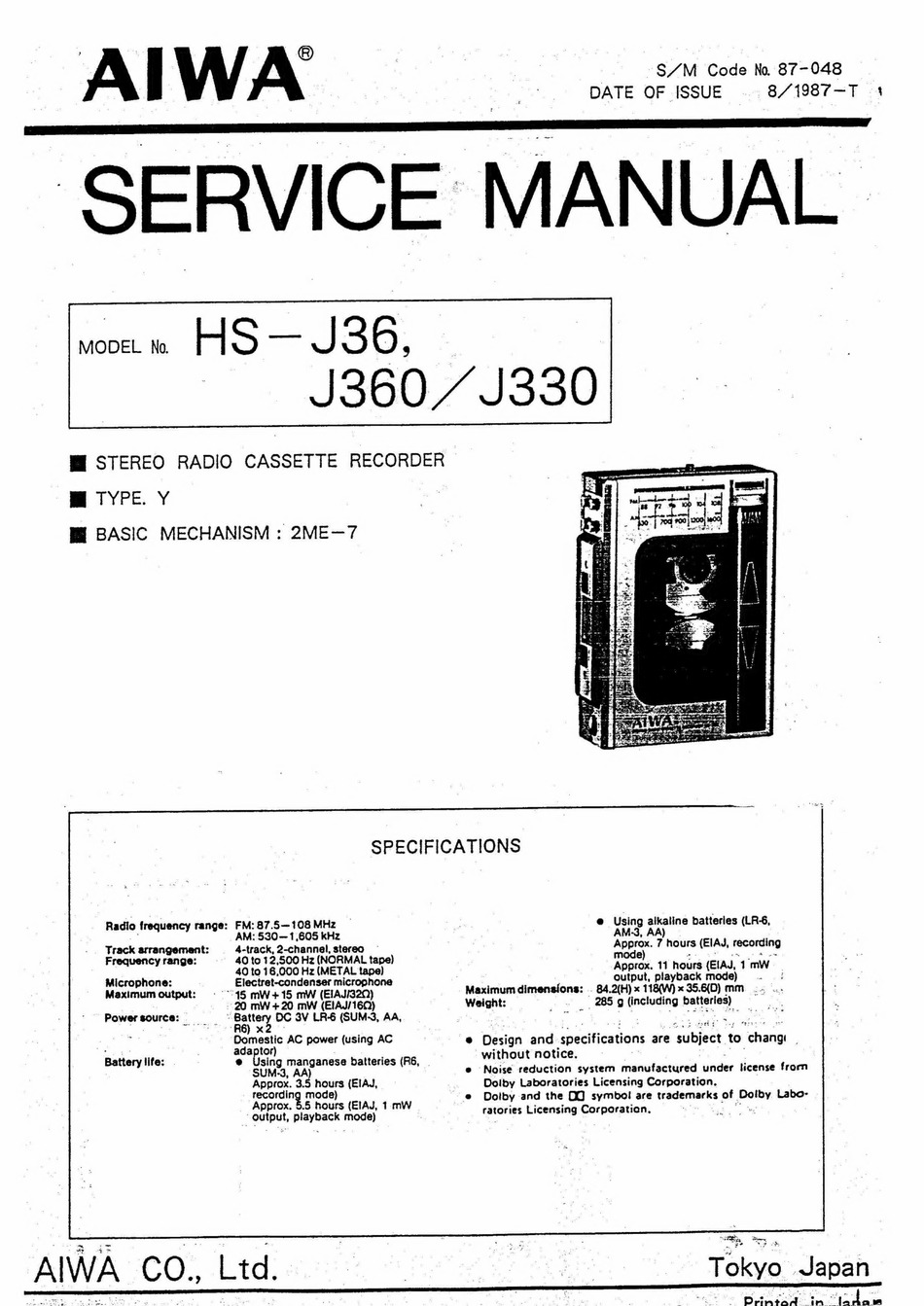

Aiwa HS-J36 Service Manual

SM Code No 87-048
DATE OF ISSUE = 8./1987-T
M TYPE. Y
ME BASIC MECHANISM : 2ME-—7
J360,/J330
SPECIFICATIONS
Radio frequency range: FM: 87.5—108 MHz
AM: 530—1,605 kHz
Track arrangement: 4-track, 2-channel, stereo —
Frequency range: 40 to 12,500 Hz (NORMAL tape)
40 to 16,000 Hz (METAL tape)
Microphone: Electret-condenser microphone
Maximum output: "45 mW+ 15 mW (EIAJ/32Q)
. 20 mW +20 mW (EIAJ/16Q)
Power source: | aed oC 3V LR (SUM-3, AA,
Peeceatie AC power (using AC
Sy ee
Battery life: Been manganese batteries (R6, |
Approx. ve hours (EIAJ,
recording mode)
Approx. 5.5 hours (E!Ad, 1 mW
3 output, playback mode)
AIWA CO., Ltd.
@ Using alkaline batteries (LR,
AN-3, AA)
Approx. 7 hours (ElAd, hearing
mode)
Approx, 11 hours (ELAN, 1 mw
output, playback mode)
Maximum dimensions: . 84.2(H) x 118(W) x 35.6(0) mm...
Weight: oot — 285 g (including ae.
. _ ™
© Noise reduction system manufactured under license frorn
Dolby Laboratories Licensing Corporation.
-@ Dolby and the 00 symbol are trademarks Bf. pale Labo-
ratories Licensing i ll
ert oP, es, Fin
Tokyo. Japan
Pi 1 ioe em
