TCL RP318BSE2 Operating Instructions Manual

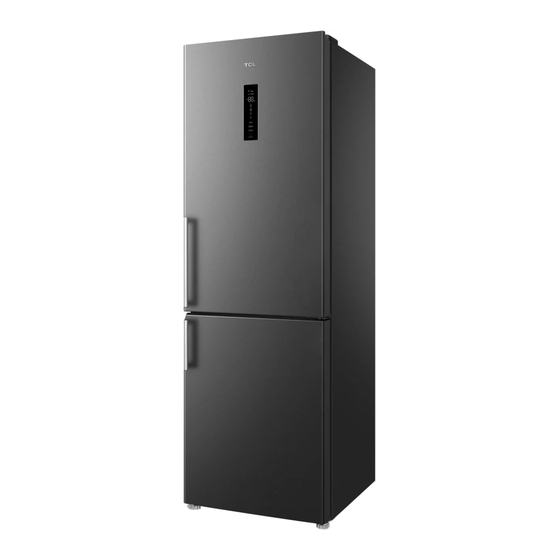

Two-door household refrigerator
Hide thumbs

Advertisement

Available languages

Available languages

Quick Links

Download this manual
RP318BSE2

Advertisement

loading
Need help?

Need help?

Do you have a question about the RP318BSE2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TCL RP318BSE2

Summary of Contents for TCL RP318BSE2

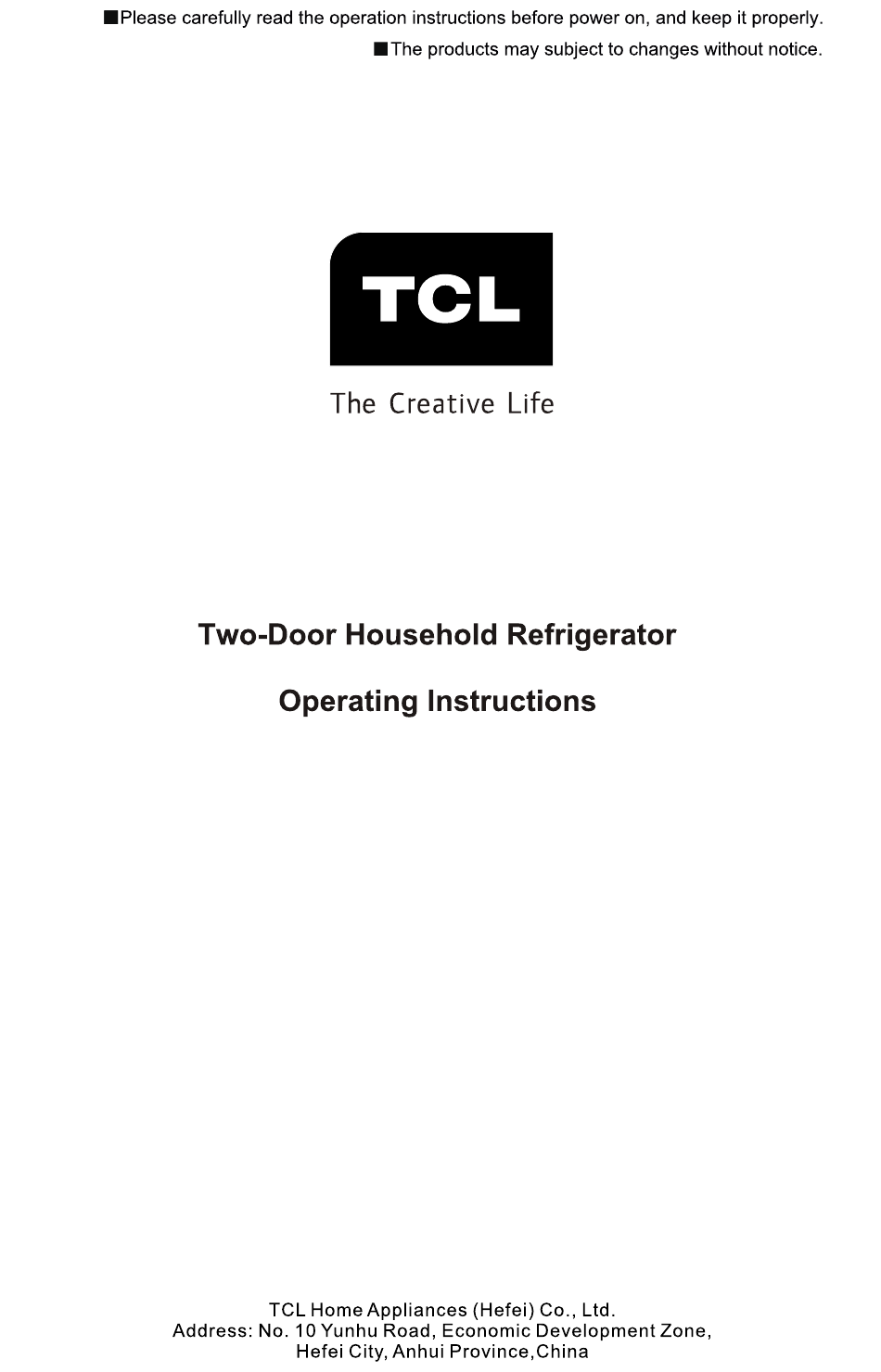

  • Page 1 RP318BSE2...
  • Page 2 Cartone d'imballaggio Parti di protezione Cartone d'imballaggio (Pannello di fibra ondulato) (Pannello di fibra ondulato) (Pannello di fibra non ondulato) PAP 20 PAP 20 PAP 21 Collezione di carta Collezione di carta Collezione di carta Sacchetto di plastica per Parti di protezione Sacchetto di plastica per (Pannello di fibra non ondulato) l'imballaggio del manuale...
  • Page 3 Thank you for choosing our refrigerator. We appreciate your trust and suppo . We will do our best to se e you. We hope you enjoy your new purchase! Safe recovery instructions Description of climate types his appliance is not intended for use by persons (including children) with reduced physical, senso or mental capabilities, or lacking experience and knowledge, unless they are given supe ision or instruction concerning use of the appliance by a person responsible for their...
  • Page 4 Warning arning: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. arning: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. arning: Do not damage the refrigerating circuit. arning: Do not use electrical appliances inside the food storage compa ments, unless they are of the type recommended by the manufacturer.
  • Page 5 arning: Risk of fire / flammable materials. arning: Do not locate multiple po able socket-outlets or po able power supplies at the rear of the appliance. Caution aution: The power supply shall be consistent with the information on the nameplate, and the standard independent 3-hole socket shall be used (above 10A, and reliably grounded).
  • Page 6 aution: E e escent drinks should not be stored in food freezer compa ments or cabinets or in low-temperature compa ments or cabinets, and food like water ices should not be consumed too cold. aution: Do not exceed the storage time(s) recommended by the food manufacturers for any kind of food.
  • Page 7 lamp Refrigerating door bottle bracket handle(optional) The pictures are for reference only. Please refer to the object...
  • Page 8 >5cm >5cm >5cm Warning: --When handling the refrigerator, at least two persons are required – one lifts the top of rear part, the other one handles the bottom (if one part is clamped, it is quite dangerous and may cause accident). --When moving the refrigerator, the lower runner may damage and scratch the floor.
  • Page 10 Operation and diagram of display board The above is the computer control board of the product...
  • Page 11 When it is powered on for the first time, the refrigerator will start the intelligent mode and run at 5 °C for the refrigerator chamber and -18 °C for the freezer chamber. Turn on: when there is no key operation on the display screen, after 30 seconds, the keyboard is automatically locked and the child lock function is turned on;...
  • Page 12 (Under "Power Freeze" state, when setting other functions, you may automatically quit the power freezing function) In the unlocked state, press the "Function" key repeatedly until the "Holiday" icon flashes, stop the key operation and wait for 3 seconds to enter the holiday function. In holiday mode, the position of refrigerator refrigerating chamber shows "OF", and the refrigerating chamber enters the closed state.(In the "Holiday"...
  • Page 13 Replaceable (LED only) light source by a professional...
  • Page 14 Before reversing the door, please prepare the following tools: cross screw driver, wrench. Note: please remove the main plug before reversing the door. Two people may be needed. Please prepare the following items in advance: Left upper hinge × 1 left upper hinge cover × 1 lower left hinge assembly × 1 left door stop × 2 1.Close the door and take out the screws from the upper hinge cover with a cross screwdriver.
  • Page 15 5.Install the previously prepared lower left hinge assembly on the left, install the previously removed leveling angle to the right, and install the lower door. 6.Install the middle hinge at the left mounting position, and install the previously removed screw cover to the right screw hole.
  • Page 16 Handy tips: It is recommended to put into the large piece of meat Changing the Light Any replacement or maintenance of the LED lamps is intended to be made by the manufacturer, its service agent or similar qualified person. It is suggested to clean the refrigerator once per month;...
  • Page 17 The following items shall be inspected before occurring failures which require maintenance: ff Causes:1. Check the connection of power supply. 2. Check whether the refrigerator is exposed to direct sunlight or whether there is heat source nearby. 3. Check whether there is heat dissipation space around refrigerator.
  • Page 18 RP318BSE2 SN/N/ST/T 318L 219L 1.1A Energy consumption E16 0.422 kWh/24h Energy consumption E32 0.930 kWh/24h Annual energy consumption AE 247kW•h/a Weight Dimension 595x630x1850mm 37dB RP318BSE2...
  • Page 19 Disposal Old appliances still have some surplus value. An environmentally friendly approach will ensure that valuable raw materials are recycled. The refrigerants used in your equipment and insulation materials require special handling procedures. Make sure there is no pipe damage on the back of the equipment before handling. Up-to-date information on the options for disposing of old equipment and packaging from old equipment can be obtained from the local council.
  • Page 20 RP318BSE2...
  • Page 23 Avertissement : Sous les types de climat SN, N et ST, la plage ambiante d’utilisation de l’appareil est de 10°C~38°C; sous les types de climat SN, N, ST et T, la plage ambiante d’utilisation de l’appareil est de 10°C~43°C. Si l’appareil fonctionne en dehors des plages de température ambiante des types de climat concerné, l’appareil pourrait ne pas maintenir la température intérieure souhaitée.
  • Page 27 >5cm >5cm >5cm...

  • Page 29: Notes De Fonctionnement

    Notes de fonctionnement Fonctionnement et schéma du tableau d'a chage Réfrigérateur Congélateur Puissance refroidie Gel de l'alimentation Vacances Verrouiller Zone Régulation Fonction Déverrouillage 3 secondes L'illustration ci-dessus représente la ca. e de contrôle informatique du produit...
  • Page 30 Notes de fonctionnement Mise sous tension pour la première fois Lorsqu'il est mis sous tension pour la première fois, le réfrigérateur démarre le mode intelligent et fonctionne à 5 °C pour la chambre de réfrigération et à -18 °C pour la chambre de congélation. Fonction de verrouillage des enfants Activer : si aucune touche n'est actionnée sur l'écran d'aĀchage, le cla vier est automatiquement verrouillé...
  • Page 31 Notes de fonctionnement (En état de « gel de l'alimentation », lorsque vous réglez d'autres fonctions, vous pouvez quitter automatiquement la fonction de gel de l'alimentation). Fonction vacances En mode déverrouillé, appuyez sur la touche « Fonction » jusqu'à ce que l'icône « Vacances » clignote, arrêtez l'actionnement de la touche et attendez 3 secondes pour entrer dans la fonction vacances.
  • Page 32 Source lumineuse remplaçable (LED uniquement) par un professionnel...
  • Page 33 Avant d'inverser la porte, veuillez préparer les outils suivants: tournevis cruciforme, clé. Remarque: veuillez retirer la fiche principale avant d'inverser la porte. Deux personnes peuvent être nécessaires. Veuillez préparer les éléments suivants à l'avance: Charnière supérieure gauche × 1 Cache de charnière supérieur gauche × 1 Ensemble charnière inférieure gauche ×...
  • Page 34 5.Installez la charnière inférieure gauche précédemment préparée sur la gauche, installez l'angle de mise à niveau précédemment retiré vers la droite et installez la porte inférieure. 6.Installez la charnière centrale à la position de montage gauche et installez le couvercle de vis précédemment retiré...
  • Page 37 RP318BSE2 SN/N/ST/T 318L Volume total de stockage 219L Volume du réfrigérateur 1.1A Consommation d'énergie 16°C 0.422 kWh/24h Consommation d'énergie 32°C 0.930 kWh/24h 247kW•h/a 595x630x1850mm 37dB RP318BSE2...
