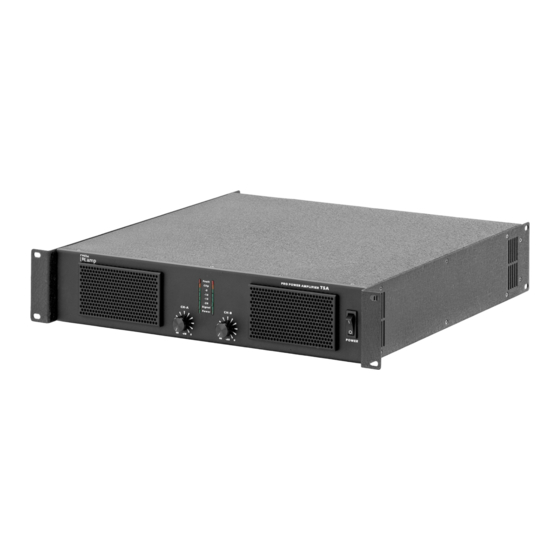

- Page 1 TSA 1400, TSA 2200, TSA 4000 Power Amplifier...
- Page 2 Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 Internet: www.thomann.de 12.03.2024, ID: 218912, 218913, 287602 (V3)
-
Page 3: Table Of Contents
Table of contents Table of contents General information..........................5 1.1 Symbols and signal words....................... 5 Safety instructions............................. 7 Features............................... 10 Installation and starting up........................ 11 Connections and controls........................12 Technical specifications........................16 Plug and connection assignment....................26 Cleaning............................... 29 Protecting the environment......................30 TSA 1400, TSA 2200, TSA 4000 Power Amplifier... - Page 4 TSA 1400, TSA 2200, TSA 4000 Power Amplifier...
-
Page 5: General Information
Our products and documentation are subject to a process of continuous development. They are therefore subject to change. Please refer to the latest version of the documentation, which is ready for download under www.thomann.de. 1.1 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this document. - Page 6 General information Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. WARNING! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in death or serious injury if it is not avoided.
-
Page 7: Safety Instructions
Safety instructions Safety instructions Intended use This device amplifies electric audio frequency signals to operate passive speakers. Use the device only as described in this user manual. Any other use or use under other operating con‐ ditions is considered to be improper and may result in personal injury or property damage. No liability will be assumed for damages resulting from improper use. - Page 8 Safety instructions DANGER! Danger to life due to electric current! A short circuit could lead to a fire hazard and risk of death. Always use proper ready-made insulated triple-core mains cable with a safety plug. Do not modify the mains cable or the plug. In case of isolation damage, disconnect immediately the power supply and arrange repair.
- Page 9 Safety instructions NOTICE! Damage to the device due to high voltages! The device can be damaged if it is operated with the incorrect voltage or if high voltage peaks occur. In the worst case, excess vol‐ tages can also cause a risk of injury and fires. Make sure that the voltage specification on the device matches the local power grid before plugging in the device.
-
Page 10: Features
Features Features integrated switching power supply XLR inputs Lockable Speaker Twist output sockets Protective circuits – Audio limiter – Thermal protection – Short circuit protection Suitable for 19-inch racks (2 RU) For device-specific features see Ä Chapter 5 ‘Connections and controls’ on page 12 and Ä... -
Page 11: Installation And Starting Up
Installation and starting up Installation and starting up Unpack and check carefully there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the product against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively. -
Page 12: Connections And Controls
Connections and controls Connections and controls Front panel ö ö 1 [CH-A] / [CH-B] | Input gain controls for channels A and B 2 LED indicators [CH-A] /[CH-B] | These LEDs indicate the ready status of the device ([Power]), the input signal level ([Signal] / [-20] / [-15] / [-10] / [-5]), channel overdrive ([Clip]) and a fault condition ([Fault]). - Page 13 Connections and controls The [Power] LED is permanently lit during operation. The [Signal] / [–20] / [–15] / [–10] / [–5] LEDs respond to the input signal. If any of these LEDs light up without an input signal present, disconnect the speakers from the power amplifier and turn the input gain controls of channels A and B down to minimum.
- Page 14 Connections and controls 3 [INPUT CH-A] / [INPUT CH-B] | Signal input channels, designed as XLR socket pair (input/output) for looping the signal to other devices 4 [Stereo/Bridge] push-button | Switch for operating modes “Stereo” (channels operate independently of each other) and “Bridge”...
- Page 15 Connections and controls 1 Rubber panel plug for the power supply [Stereo/Parallel/Bridge] | Switch for operating modes “Stereo” (all channels operate independently of each other.), “Parallel“ (inputs of one channel pair are interconnected. Input A is output on output A and output B.) and “Bridge” (two channels are combined into one channel with double output power.) 2 [OUTPUT A] / [OUTPUT B] | Signal outputs, designed as lockable NL4 panel sockets for connecting speakers 3 [INPUT A] / [INPUT B] | Signal input channels, designed as XLR socket pair (input/output) for looping the signal to...
-
Page 16: Technical Specifications
Technical specifications Technical specifications TSA 1400 Amplifier class Input impedance 20 kΩ (balanced) 10 kΩ (unbalanced) Rated output power (THD ≤ 1%, 1 kHz) 8 Ω, stereo 2 × 450 W 4 Ω, stereo 2 × 670 W 2 Ω, stereo 2 ×... - Page 17 Technical specifications Crosstalk (at 1 kHz, 10% rated power) > 70 dB Frequency response (at 1 kHz) 20 Hz … 20 kHz (0 – 2 dB) Signal-to-noise ratio 105 dB (A-weighted) Total harmonic distortion (THD) < 0.1% Damping factor (100 Hz / 1 kHz, 8 Ω) >...
- Page 18 Technical specifications Weight 10.6 kg Ambient conditions Temperature range 0 °C…40 °C Relative humidity 20%…80% (non-condensing) TSA 1400, TSA 2200, TSA 4000 Power Amplifier...
- Page 19 Technical specifications TSA 2200 Amplifier class Input impedance 20 kΩ (balanced) 10 kΩ (unbalanced) Rated output power (THD ≤ 1%, 1 kHz) 8 Ω, stereo 2 × 590 W 4 Ω, stereo 2 × 910 W 2 Ω, stereo 2 × 1200 W Max.
- Page 20 Technical specifications Signal-to-noise ratio 105 dB (A-weighted) Total harmonic distortion (THD) < 0.1% Damping factor (100 Hz / 1 kHz, 8 Ω) > 400 Sensitivity Gain 39.8 dB Power consumption Typical current draw depending on the output power level (RMS value A ).
- Page 21 Technical specifications Ambient conditions Temperature range 0 °C…40 °C Relative humidity 20%…80% (non-condensing) TSA 1400, TSA 2200, TSA 4000 Power Amplifier...
- Page 22 Technical specifications TSA 4000 Amplifier class Input impedance 20 kΩ (balanced) 10 kΩ (unbalanced) Rated output power (THD ≤ 1%, 1 kHz) 8 Ω, stereo 2 × 1000 W 4 Ω, stereo 2 × 1500 W 2 Ω, stereo – Max.
- Page 23 Technical specifications Signal-to-noise ratio 106 dB (A-weighted) Total harmonic distortion (THD) < 0.1% Damping factor (100 Hz / 1 kHz, 8 Ω) > 450 Sensitivity Gain 37 dB Power consumption Typical current draw depending on the output power level (RMS value A ).
- Page 24 Technical specifications Ambient conditions Temperature range 0 °C…40 °C Relative humidity 20%…80% (non-condensing) Further information Channels 19-inch rack installation height 2 RU DSP / frequency Convection cooling Protective circuits (temperature, short circuit, limiter) TSA 1400, TSA 2200, TSA 4000 Power Amplifier...
- Page 25 Technical specifications Block diagram OUT A /A&B Bridge Pre-amplifier Amplifier INPUT Volume Binding Post TRS Tip+ Binding Post Bridge + Bridge - Binding Post XLR Pin2+ Binding Post OUT B Amplifier Pre-amplifier INPUT A&B BRDG Volume TSA 1400, TSA 2200, TSA 4000 Power Amplifier...
-
Page 26: Plug And Connection Assignment
Plug and connection assignment Plug and connection assignment Introduction This chapter will help you select the right cables and plugs to connect your valuable equip‐ ment in such a way that a perfect sound experience is ensured. Please note these advices, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into the socket, an incorrect connection may result in a destroyed power amp, a short circuit or ‘just’... - Page 27 Plug and connection assignment XLR plug (balanced) Ground, shielding Signal (in phase, +) Signal (out of phase, –) Shielding on plug housing (option) XLR plug (unbalanced) Ground, shielding Signal Bridged to pin 1 TSA 1400, TSA 2200, TSA 4000 Power Amplifier...
- Page 28 Plug and connection assignment Speaker Twist chassis connector 1, + Signal 1 (in phase) 1, – Signal 1 (out of phase) 2, + Signal 2 (in phase) 2, – Signal 2 (out of phase) ö TSA 1400, TSA 2200, TSA 4000 Power Amplifier...
-
Page 29: Cleaning
Cleaning Cleaning Fan grids The fan grids of the device must be cleaned of any contamination, such as dust, etc. on a reg‐ ular basis. Before cleaning, switch off the device and disconnect mains-operated devices from the mains. Only use pH-neutral, solvent-free and non-abrasive cleaning agents. Clean the unit with a slightly damp lint-free cloth. -
Page 30: Protecting The Environment
Protecting the environment Protecting the environment Disposal of the packing material Environmentally friendly materials have been chosen for the packaging. These materials can be sent for normal recycling. Ensure that plastic bags, packaging, etc. are disposed of in the proper manner. Do not dispose of these materials with your normal household waste, but make sure that they are collected for recycling. - Page 31 Repairing a device or passing it on to another user is an ecologically valuable alternative to disposal. You can return your old device to Thomann GmbH at no charge. Check the current conditions on www.thomann.de. If your old device contains personal data, delete those data before disposing of it.
- Page 32 Notes TSA 1400, TSA 2200, TSA 4000 Power Amplifier...
- Page 33 Notes TSA 1400, TSA 2200, TSA 4000 Power Amplifier...
- Page 34 Notes TSA 1400, TSA 2200, TSA 4000 Power Amplifier...
- Page 36 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
