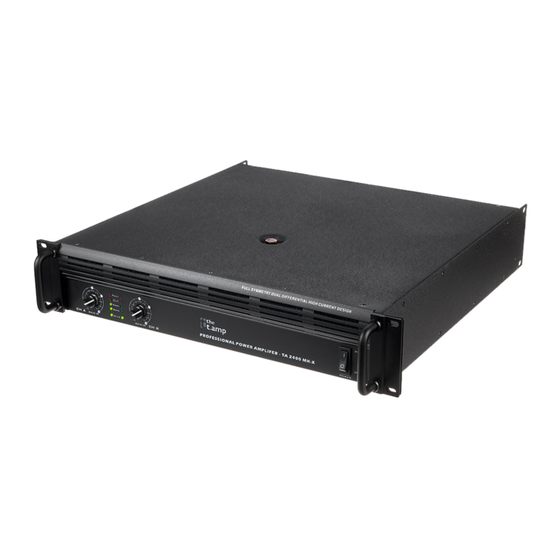

- Page 1 TA 1050 MK-X, TA 1400 MK-X, TA 2400 MK-X Power Amplifier...
- Page 2 Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 Internet: www.thomann.de 12.03.2024, ID: 156555, 156556, 156557 (V4)
-
Page 3: Table Of Contents
Table of contents Table of contents General information..........................5 1.1 Symbols and signal words....................... 5 Safety instructions............................. 7 Features............................... 10 Installation and starting up........................ 11 Connections and controls........................12 Technical specifications........................15 Plug and connection assignment....................23 Cleaning............................... 27 Protecting the environment......................28 TA 1050 MK-X, TA 1400 MK-X, TA 2400 MK-X Power Amplifier... - Page 4 TA 1050 MK-X, TA 1400 MK-X, TA 2400 MK-X Power Amplifier...
-
Page 5: General Information
Our products and documentation are subject to a process of continuous development. They are therefore subject to change. Please refer to the latest version of the documentation, which is ready for download under www.thomann.de. 1.1 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this document. - Page 6 General information Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. WARNING! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in death or serious injury if it is not avoided.
-
Page 7: Safety Instructions
Safety instructions Safety instructions Intended use This device amplifies electric audio frequency signals to operate passive speakers. Use the device only as described in this user manual. Any other use or use under other operating con‐ ditions is considered to be improper and may result in personal injury or property damage. No liability will be assumed for damages resulting from improper use. - Page 8 Safety instructions DANGER! Danger to life due to electric current! A short circuit could lead to a fire hazard and risk of death. Always use proper ready-made insulated triple-core mains cable with a safety plug. Do not modify the mains cable or the plug. In case of isolation damage, disconnect immediately the power supply and arrange repair.
- Page 9 Safety instructions NOTICE! Damage to the device if operated in unsuitable ambient conditions! The device can be damaged if it is operated in unsuitable ambient conditions. Only operate the device indoors within the ambient conditions specified in the “Technical specifications” chapter of this user manual. Avoid operating it in environments with direct sun‐ light, heavy dirt and strong vibrations.
-
Page 10: Features
Features Features Inputs – 2 × XLR – 2 × 6.35-mm jack Outputs – 2 × Speaker Twist (lockable) – 2 × screw terminal Protective circuits – Audio limiter – Thermal protection – Short circuit protection – DC voltage protection –... -
Page 11: Installation And Starting Up
Installation and starting up Installation and starting up Unpack and check carefully there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the product against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively. -
Page 12: Connections And Controls
Connections and controls Connections and controls Front panel ö ö 1 [CH-A] / [CH-B] | Input gain controls for channels A and B 2 LED indicators [CH-A] /[CH-B] | These LEDs indicate the ready status of the device ([Power]), the input signal level ([Signal]), channel overdrive ([Clip]) and a fault condition ([Fault]). - Page 13 Connections and controls The [Power] LED is permanently lit during operation. The [Signal] LEDs respond to the input signal. If any of these LEDs light up without an input signal present, disconnect the speakers from the power amplifier and turn the input gain controls of channels A and B down to minimum.
- Page 14 Connections and controls 1 Fuse holder 2 [OUT A] / [OUT B]| Signal outputs, designed as lockable NL4 panel sockets for connecting speakers 3 [OUT A] / [OUT B] | Signal outputs, designed as screw terminals (+/) for connecting speakers 4 [IN A] / [IN B]| Signal inputs, designed as XLR panel sockets 5 [IN A] / [IN B] | Signal inputs, designed as 6.35-mm jack sockets 6 [STEREO/PARALLEL/BRIDGED] | Switch for operating modes “STEREO”...
-
Page 15: Technical Specifications
Technical specifications Technical specifications TA 1050 MK-X Amplifier class Input impedance 20 kΩ (balanced) 10 kΩ (unbalanced) Output power 8 Ω, stereo 2 × 380 W 4 Ω, stereo 2 × 520 W 8 Ω, mono “bridged” 1050 W Slew rate 40 V/ms Common mode rejection >... - Page 16 Technical specifications Damping factor (8 Ω, 1 kHz) 300:1 Sensitivity 0.775 V at rated power (8 Ω) Gain 34 dB Cooling 2 × 2-speed DC fans Power consumption Load 1/8 nominal power 1/3 nominal power 1/1 nominal power (2 ×) 8 Ω 450 W / 2.9 A 690 W / 4.2 A 1190 W / 6.8 A...
- Page 17 Technical specifications TA 1400 MK-X Amplifier class Input impedance 20 kΩ (balanced) 10 kΩ (unbalanced) Output power 8 Ω, stereo 2 × 570 W 4 Ω, stereo 2 × 850 W 8 Ω, mono “bridged” 1600 W Slew rate 40 V/ms Common mode rejection >...
- Page 18 Technical specifications Gain 36.9 dB Cooling 2 × 2-speed DC fans Power consumption Load 1/8 nominal power 1/3 nominal power 1/1 nominal power (2 ×) 8 Ω 380 W / 2.4 A 985 W / 5.8 A 1650 W / 9.3 A (2 ×) 4 Ω...
- Page 19 Technical specifications TA 2400 MK-X Amplifier class Input impedance 20 kΩ (balanced) 10 kΩ (unbalanced) Output power 8 Ω, stereo 2 × 760 W 4 Ω, stereo 2 × 1200 W 8 Ω, mono “bridged” 2300 W Slew rate 60 V/ms Common mode rejection >...
- Page 20 Technical specifications Gain 39.2 dB Cooling 2 × 2-speed DC fans Power consumption Load 1/8 nominal power 1/3 nominal power 1/1 nominal power (2 ×) 8 Ω 443 W / 2.8 A 1080 W / 6.6 A 2180 W / 12.2 A (2 ×) 4 Ω...
- Page 21 Technical specifications Further information Channels 19-inch rack installation height 2 RU 2 Ω stable DSP / frequency Convection cooling Protection circuits (DC voltage protection, overtempera‐ ture protection, short-circuit protection, infrasound pro‐ tection, overcurrent protection) TA 1050 MK-X, TA 1400 MK-X, TA 2400 MK-X Power Amplifier...
- Page 22 Technical specifications Block diagram OUT A /A&B Bridge Pre-amplifier Amplifier INPUT Volume Binding Post TRS Tip+ Binding Post Bridge + Bridge - Binding Post XLR Pin2+ Binding Post OUT B Amplifier Pre-amplifier INPUT A&B BRDG Volume TA 1050 MK-X, TA 1400 MK-X, TA 2400 MK-X Power Amplifier...
-
Page 23: Plug And Connection Assignment
Plug and connection assignment Plug and connection assignment Introduction This chapter will help you select the right cables and plugs to connect your valuable equip‐ ment in such a way that a perfect sound experience is ensured. Please note these advices, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into the socket, an incorrect connection may result in a destroyed power amp, a short circuit or ‘just’... - Page 24 Plug and connection assignment XLR plug (balanced) Ground, shielding Signal (in phase, +) Signal (out of phase, –) Shielding on plug housing (option) XLR plug (unbalanced) Ground, shielding Signal Bridged to pin 1 TA 1050 MK-X, TA 1400 MK-X, TA 2400 MK-X Power Amplifier...
- Page 25 Plug and connection assignment Speaker Twist chassis connector 1, + Signal 1 (in phase) 1, – Signal 1 (out of phase) 2, + Signal 2 (in phase) 2, – Signal 2 (out of phase) ö 1/4" TS phone plug (mono, unbalanced) Signal Ground, shielding...
- Page 26 Plug and connection assignment 1/4" TRS phone plug (mono, bal‐ anced) Signal (in phase, +) Signal (out of phase, –) Ground 1/4" TRS phone plug (stereo, unbalanced) Signal (left) Signal (right) Ground TA 1050 MK-X, TA 1400 MK-X, TA 2400 MK-X Power Amplifier...
-
Page 27: Cleaning
Cleaning Cleaning Fan grids The fan grids of the device must be cleaned of any contamination, such as dust, etc. on a reg‐ ular basis. Before cleaning, switch off the device and disconnect mains-operated devices from the mains. Only use pH-neutral, solvent-free and non-abrasive cleaning agents. Clean the unit with a slightly damp lint-free cloth. -
Page 28: Protecting The Environment
Protecting the environment Protecting the environment Disposal of the packing material Environmentally friendly materials have been chosen for the packaging. These materials can be sent for normal recycling. Ensure that plastic bags, packaging, etc. are disposed of in the proper manner. Do not dispose of these materials with your normal household waste, but make sure that they are collected for recycling. - Page 29 Repairing a device or passing it on to another user is an ecologically valuable alternative to disposal. You can return your old device to Thomann GmbH at no charge. Check the current conditions on www.thomann.de. If your old device contains personal data, delete those data before disposing of it.
- Page 30 Notes TA 1050 MK-X, TA 1400 MK-X, TA 2400 MK-X Power Amplifier...
- Page 32 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
