Installation
Electric wiring requirements
The cooker MUST be installed in compliance with:
• Wiring connections in AS/NZS 3000 Wiring Rules.
• Local regulations, municipal building codes and other statutory
regulations.
• Data Plate – Gives information about the rating and is located
behind the bottom of the oven door.
• A functional switch MUST be provided near the appliance in
an accessible position (AS/NZS 3000).
• Wiring MUST be protected against mechanical failure (AS/
NZS 3000).
• Disconnection from the fixed wiring must occur as required by
AS/NZS 3000 wiring rules.
• This range must be connected with cable of 75°C rating
minimum.
• This product has passed the insulation resistance test after
manufacture. If the resistance reading is low at installation, it
is probably caused by moisture from the atmosphere being
absorbed by the elements after the range has been produced.
(pass at 0.01M AS/NZS 3000 Wiring Rules).
• The cooker MUST be properly earthed.
• When connections are made to a multiphase 230/240V
supply, the bridge piece MUST be removed from between the
active connections.
• If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
• This appliance must be fixed in position or must be
connected to the supply by a supply cord fitted with a
male connector.
Model Total kW Total Current
(Amps)
CFE532 8.2 35.7
CFE535 9.64 41.9
CFE536 8.2 35.7
CFE537 10.04 43.7
CFE547 9.64 41.9
Cable Section Min Temp
(mm 2 ) (°C)
75
6.0
10.0 75
75
6.0
75
10.0
10.0 75

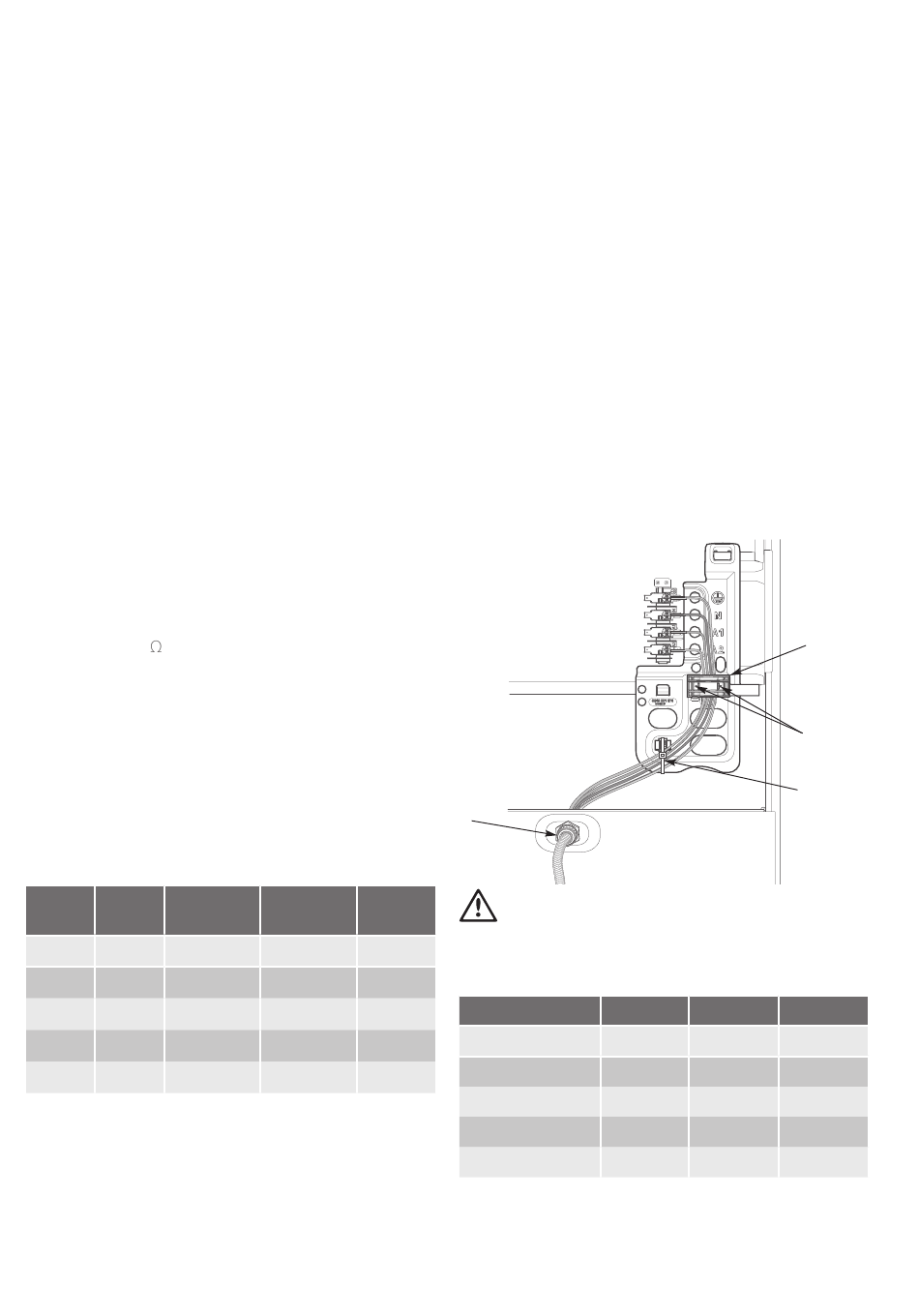

Hard wiring
1. Remove rear panel.
2. Fit wires through hole at bottom centre using the appropriate
gland to protect insulation of wires from the hole edge.
Note that the secondary insulation of the wires will probably
need to be removed to fit through gland. If the conduit to
appliance is required to bend due to rear wall an elbow
may be required to achieve this.
3. Set the length of wiring from the gland to terminal block,
ensuring length is sufficient but not excessive.
4. Make connections to terminals and engage wires into
plastic clip. Cable tie as per diagram and secure plastic
clip with two long screws supplied.
5. Replace rear cover.
Gland
warning
Ensure wires cannot contact hot element ends or sharp edges.
Rated power input
Model Total kW
CFE532
CFE535
CFE536
CFE537
CFE547
A1 kW
8.2 2.2
9.64 3.64
8.2 2.24
10.04 4.04
9.64 4.04
Chef 540 Upright Cooker 7
Plastic Clip
Plastic
clip screw
securing
points
Cable tie
A2 kW
6.0
6.0
6.0
6.0
5.6
