Gas conversion instructions
6. Remove the gas injector holder from the burner by
bending up the 2 metal tabs at the end of the burner
holding the gas injector, then slide the injector holder out
of the burner body.
7. Remove the oven burner gas injector from its holder using
the 7mm spanner or socket or nut runner.
8. Select the correct gas injector for the oven burner and
the intended gas type and replace the oven burner
gas injector. Set the injector in place firmly but not with
excessive torque.
9. Slide the gas injector holder back into the burner and
bend down the 2 metal tabs to ensure that the injector
holder cannot slide out of the burner body.
10. Install the internal baffle (where used), rear cover, and
plastic cover behind the gas connection as per the
reverse of steps 1 to 4.
Note: Adjustment of the turndown of the Gas Oven valve
(thermostat) should have been done as part of the Gas Hob
Conversion.

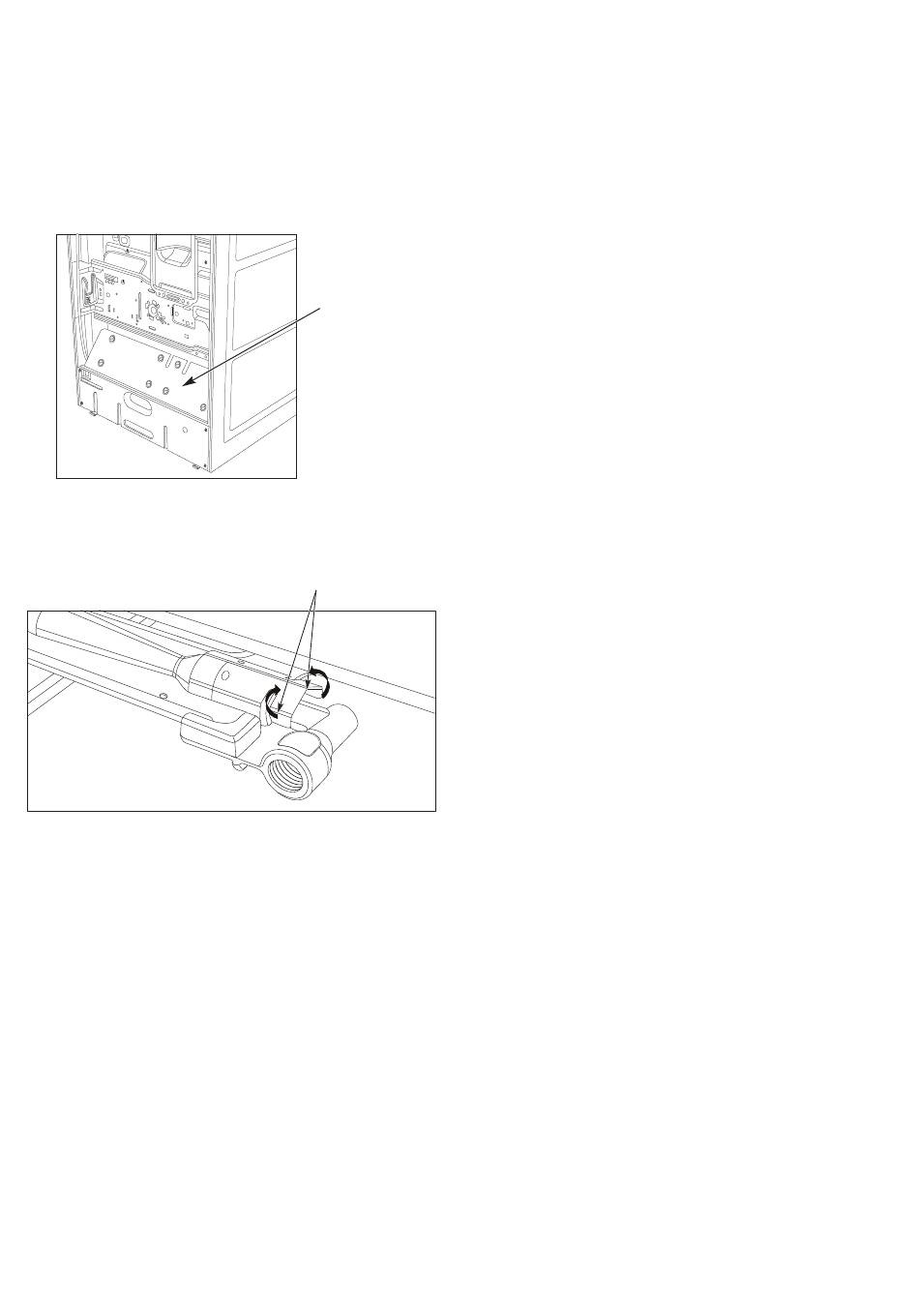

Lower internal
baffle plate
Metal tabs of the
burner
Gas Oven - Elevated Cookers
Tools required:
• 7mm open-ended or ring spanner or 7mm hex socket
screwdriver or nut runner.
• #2 Phillips head screwdriver.
1. Warning: Risk of electric shock. Ensure the
cooker is NOT plugged into a power point before
proceeding.
2. Remove the rear bridging plate between the oven and
hob at the rear of the cooker.
3. Warning: Risk of laceration. The rear cover
and internal components can have sharp edges. Wear
appropriate gloves and long sleeve & leg clothes.
4. Remove the oven rear panel by unscrewing 2 (or 4
where used) Phillips screws.
5. Remove the gas injector holder from the burner by
bending up the 2 metal tabs at the end of the burner
holding the gas injector, then slide the injector holder out
of the burner body. Refer to the figure above.
6. Remove the oven burner gas injector from its holder using
the 7mm spanner or socket or nut runner.
7. Select the correct gas injector for the oven burner and
the intended gas type and replace the oven burner
gas injector. Set the injector in place firmly but not with
excessive torque.
8. Slide the gas injector holder back into the burner and
bend down the 2 metal tabs to ensure that the injector
holder cannot slide out of the burner body.
9. Install the rear cover and bridging plate as per the
reverse of steps 1 to 3. Note: Adjustment of the turndown
of the Gas Oven valve (thermostat) should have been
done as part of the Gas Hob Conversion.
Chef 540 Upright Cooker 13
