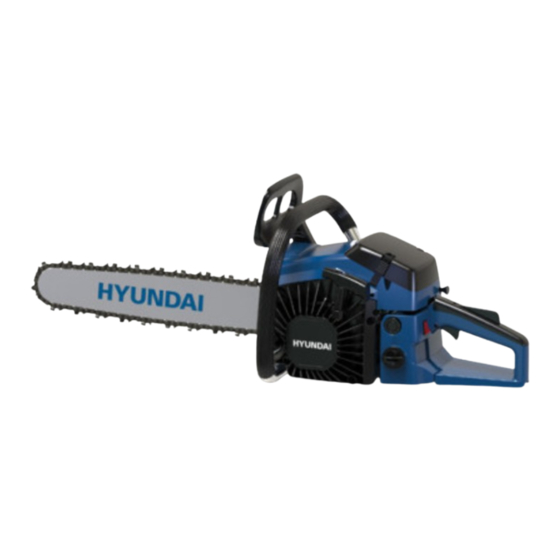

- Page 1 Petrol chain saw HTRTPRO5350-4 WARNING: Read thoroughly the instruction manual before use...
-
Page 2: Table Of Contents
CONTENTS SAFETY WARNINGS YOUR PRODUCT ASSEMBLY FILLING THE FUEL TANK OPERATION MAINTENANCE AND STORAGE DECLARATION OF CONFORMITY WARRANTY P R O D U C T FA I L U R E WA R R A N T Y E X C L U S I O N S... -
Page 3: Safety Warnings
1. SAFETY WARNINGS WARNING! When using this type of garden tool, basic precautions should always be followed to reduce the risk of fire, electric shock and injury. Read all instructions carefully before attempting to use this product and retain these instructions. - Page 4 dealer for advice. The risks of slipping and skidding must be foreseen as there is a high risk of kickback. Do not lean. Keep a good balance at all times. Do not lose your balance at the end of a cut. Always inspect the machine before and after operation.
- Page 5 For the chainsaw designed with the chain guide on the left side, the reference to the "right hand" and "left hand" positions is reversed. When cutting a branch that is under stress, pay attention to the risk of elastic ...
- Page 6 maintenance, servicing and storage. Store the tool where fuel vapor will not reach a flame or spark. When transporting and storing, always place the tool in its transport guard and protective device on it. Causes of rebounds and prevention by the operator Bounce may occur when the spout or end of the chain guide touches an object, ...
- Page 7 Symbols Warning symbol Read and refer to these operating instructions Wear safety equipment that includes protective helmet and protective goggles Value of sound emission according to European Directive 2000/14 / EC This tool must be used by persons trained to cut down trees;...
-
Page 8: Your Product
11. Guide bar cover 12. Mix bottle 13. Setting tool 14. Wrench 15. Mini screwdriver 16. Fuel checker b. Technical data Model HTRTPRO5350-4 Type of engine RY1E45F-1 (air cooled 2-stroke petrol engine) Fuel Tank Volume 550cm³ Ratio 40:1 Oil tank volume 260cm³... -
Page 9: Assembly
Weight (empty tank, without 5.1 kg accessories) Cutting length 470mm (20’’) Chain pitch 8.255mm (0,325’’) Gauge of chain 1,47mm (0,058’’) Type of chain and guide bar BE20-76-5812P (Kangxin) and 325,058-76 (Kangxin) Sprocket (number of teeth x pitch) 7 teethes*8,255 Carburetor WT972A/Walbro, WT664A/Walbro WT978/Walbro, 1E44F/Jingke MC16A10/Hlic, MC16A7/HLIC, MC16A7-... - Page 10 6) Adjust the chain tension by turning the tension screw until the straps touch just the bottom side of the bar. 7) Tighten the nuts and check if the chain is rotated correctly and tight.
-
Page 11: Filling The Fuel Tank
While lifting the chain guide, turn the content screw to apply correct tension to the chain. Then lock the crankcase nuts. Rotate the chain with your hand to check that it is turning without excessive resistance and that it is properly tightened. Repeat the installation if the chain is not tight. -
Page 12: Operation
container. Do not leave the fuel for a long time in the product. The fuel may clog the carburetor and the engine will not operate properly. d. Disposal of fuel When the fuel is no longer used or worn, please dispose of it in an authorized location. Check local laws regarding disposal of fuels 5. - Page 13 Hold the chainsaw firmly against the ground. Put the chainsaw: Either on the left side of your body holding the handle firmly with your left hand. Use your right hand to pull the starter rope. Either on the right side of your body holding the handle firmly with your right ...
- Page 14 Stop the tool and tighten the needle L until it stops. Do not force it. Then set it to its initial number of turns as shown below. The number of turns for the needle is also shown below: b. Chain brake Starting shall always be done with the chain brake activated.
- Page 15 d. Sharpening of the chain For best performance, we strongly recommend that you periodically sharpen the chain. The chain can either be sharpened by a professional or by yourself by providing you with a sharpening guide (make sure you know how to use it). The chain must be sharpened when: Wood chips have become powder To make a normal cut, force on the tool...
- Page 16 b. Trunk on the ground Cut half of the trunk, turn it over and finish the cut on the other side. c. Trunk in elevation Begin by cutting a first part from below and then from above. Then, on the second part, repeat this operation.
-
Page 17: Maintenance And Storage
6. MAINTENANCE AND STORAGE 1. Maintenance Before any maintenance work, the machine must be switched off and completely cooled. Perform the maintenance work according to the instructions below and perform them regularly. A clean, well-maintained machine increases its standard of living and efficiency. - Page 18 d. Cleaning the oil filter and fuel filter Clean these items regularly. Remove them from the tanks using clamps. Clean them with gasoline and then put them back in place afterwards e. Guide bar Cleaning: Remove bar guide to remove dirt from grooves and oil inlet. Regularly grease the pinion.
- Page 19 Sprocket Check the sprocket on signs of wear. If wearing is important, replace it with a new one. Do not install a chain on a worn or damaged sprocket. Do not install a worn chain on a pinion. g. Spark plug Clean the electrodes with a wire brush and set the gap to 0.6mm if necessary.
- Page 20 Sharpening of the chain For best performance, we strongly recommend that you periodically sharpen the chain. The chain can either be sharpened by a professional or by yourself by providing you with a sharpening guide (make sure you know how to use it). The chain must be sharpened when: Wood chips have become powder To perform a normal cut, force on the tool#...
-
Page 21: Declaration Of Conformity
BUILDER SAS ZI, 32 rue Aristide Bergès – 31270 Cugnaux - France Declares that the machinery designated below: Petrol chainsaw HTRTPRO5350-4 Serial number: 20210147700-20210148199 Complies with the provisions of the Directive "machinery" 2006/42/EC and regulations National transposing it; Also complies with the following European directives: EMC Directive 2014/30/EU Emission directive (EU) 2016/1628 &... -
Page 22: Warranty
8. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 23: Product Failure
9. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 24: Warranty Exclusions
10. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
