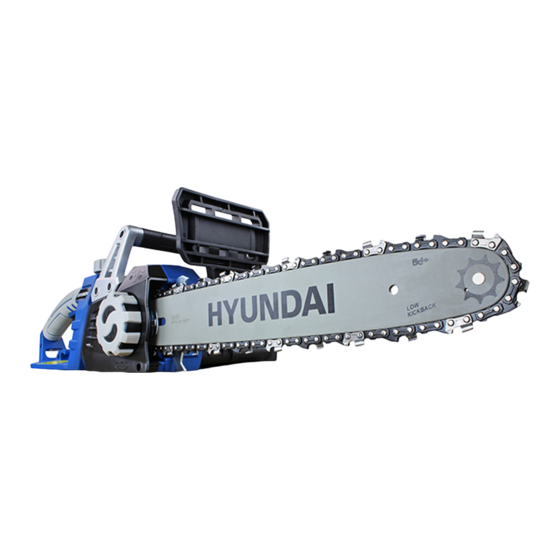

- Page 1 ELECTRIC CHAINSAW HYC1600E / HYC2400E Instruction Manual...
- Page 2 We would be delighted if you left us positive feedback! Thank you for purchasing this product. This manual has been produced by Hyundai Power Products and should be kept with the product. Please read and understand these instructions before you use your product. Failure to do this may result in personal injury or damage to the product.
-
Page 3: Table Of Contents
Contents Symbols On The Machine........4 Working............29-34 Basic Cutting procedure....29-30 Safety Information.........5-14 Felling A Tree..........31 Understand Your Machine......5 Notching Undercut........32 Personal Safety........5-6 Felling Back Cut........32 Inspect Your Machine.......7 Limbing And pruning.......33 Work Area..........7-8 Cutting Spring Poles.......33 During Use..........8 Bucking A Log.........34 Noise............9 Maintenance And Care......35-38 Service............9... -
Page 4: Symbols On The Machine
Symbols On The Machine Symbols On The Machine We have provided safety messages in this manual and on the machine. This information alerts you to potential hazards that could hurt you or others. Please read these messages carefully. However, we may not have listed all of the possible hazards, you must also use your own judgment. -
Page 5: Safety Information
Safety Information WARNING : READ THE INSTRUCTION BOOKLET THOROUGHLY BEFORE USING THE MACHINE. Keep for future reference and pass it on if the machine is loaned or sold to another user. In all warnings below, the term “power tool” refers to you electric chainsaw. Understand Your Machine •... -
Page 6: Personal Safety
Safety Information Personal Safety (Continued) • Remove adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. • Do Not Overreach. Keep proper footing and balance at all times. This enables better control in unexpected situations. -
Page 7: Inspect Your Machine
Safety Information Inspect Your Machine • Check your machine before starting it. Keep guards in place and in working order. Make sure all nuts, bolts, etc., are securely tightened. • You must check the general condition of the machine before use. •... -
Page 8: Work Area
Safety Information Work Area (Continued) • Use the unit in dry conditions only. Protect it from rain and moisture. If there has been heavy rain on the working site, wait until the ground has dried up. • Never place the machine in a place with unstable ground which could give way. •... -
Page 9: Noise
Do not remove or modify any safety components as this may result in damage to your machine or serious personal injury. Intended Use The HYC1600E / HYC2400E is an electric chainsaw from HYUNDAI. The product is only intended for sawing wood for domestic purposes. The saw is not designed for cutting any other material. -
Page 10: Vibrations
Safety Information Vibrations (Where Applicable) • Prolonged use of hand held (operated) machines will cause the user to feel the effects of/from vibrations. These vibrations can lead to white finger (Raynaud’s phenomenon) or carpal tunnel syndrome. This condition reduces the ability of the hand to feel and regulate temperature, causing numbness and heat sensations and may cause nerve damage and circulatory tissue death. -
Page 11: Personal Protective Equipment
Safety Information Clothing And Personal Protective Equipment (PPE) Appropriate Personal Protective Equipment (PPE), MUST be worn at all times when operating or repairing the machine. No protective equipment can ensure 100% protection. When selecting PPE, make sure it’s CE marked and it suits the user in terms of size, fit etc. If more than one item of PPE is worn at the same time, make sure they can be used together, e.g. -
Page 12: Electrical Safety
Safety Information Electrical Safety DANGER! ELECTRICITY CAN KILL - NEVER WORK ON LIVE/ENERGISED EQUIPMENT. • Prior to carrying out any maintenance work you MUST identify electrical isolation methods and isolate all electrical supplies. • Prior to use and with all electrical supplies isolated, you MUST check all electrical cables, plugs and connectors for the following;... -
Page 13: Electrical Connections
Safety Information Electrical Safety (Continued) • When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. • Use outdoor extension leads. If working outdoors, always use an approved cable extension suitable for the power rating of this tool, the conductor size should also be at least the same size as that on the machine, or larger. -
Page 14: Power Tool Use And Care
Safety Information Power Tool Use And Care • Do Not Force The Tool. Use the correct power tool for your application. The correct power tools will do the job better and safer at the rate for which it was designed. •... -
Page 15: Chainsaw Safety Warnings
Safety Information Chainsaw Safety Warnings • You must keep all parts of the body away from the chain when the chainsaw is operating. Before you start the chainsaw, make sure the chain is not contacting anything. A moment of inattention while operating chainsaws may cause entanglement of your clothing or body with the saw chain. - Page 16 Safety Information Chainsaw Safety Warnings (Continued) • Never operate a chain saw when you are fatigued, ill, or upset, or under the influence of medication that may make you drowsy, or if you are under the influence of alcohol or drugs - risk of accident! •...
- Page 17 Safety Information • The chainsaw must only be operated by one person. Other persons are forbidden to stay in the swivelling range of the chainsaw. Pay special attention to children and pets. • Children and adolescents are not allowed to operate the chainsaw. If you pass this chainsaw on to anybody else, you must give them the instruction manual.
-
Page 18: Kickback
Safety Information Causes And Prevention Of Kickback Kick-back may occur when the nose or tip of the guide bar touches an object, or when the wood closes in and pinches the saw chain in the cut. Tip contact in some cases may cause a sudden reverse reaction, kicking the guide bar up and back towards the operator. -
Page 19: Features
Features 1 - Rear Handle 2 - On/Off Switch 3 - Oil Filler Cap 4 - Front Handle 5 - Chain Brake 6 - Cable Sheath 7 - Cable Hook 8 - Oil Level Indicator 9 - Chain Adjuster 10 - Chain 11 - Chain Guide Bar... -
Page 20: Unboxing
Lay the contents out and check them. If any part is damaged or missing, you must not use the machine. Contact HYUNDAI Power Products immediately. You must keep the packaging material in case the machine needs to be returned or repaired. -
Page 21: Assembly
Assembly Assembly Safety WARNING - Make sure that you have read and understood all the safety warnings before continuing with the assembly. WARNING - Make sure that the chainsaw is disconnected from the mains supply during all checks and adjustments. CAUTION - This guide is meant to serve as a quick reference for operating your HYUNDAI machine. -
Page 22: Attaching The Chain Bar And Chain
Assembly Attaching The Chain Bar And Chain 1. Place the chainsaw on a stable and flat surface. Unplug the chainsaw from electric supply. 2. Loosen the large adjusting knob by turning anticlockwise and remove the cover. 3. Place the chain onto the bar. The chain bar is marked with an arrow that shows you the direction in which the chain will travel. -
Page 23: Chain Tension
Assembly Chain Tension Correct chain tension is extremely important and must always be checked before starting work. When using the chainsaw for the first time (or after replacing the chain) the tension should be checked regularly, as a new chain will stretch after several cuts. If the chain is too loose or too tight, the sprocket, bar and chain will wear more rapidly. -
Page 24: Starting / Stopping
Starting / Stopping Before Each Use WARNING! Do not start the chainsaw until it is fully assembled and adjusted and you have read all warnings and safety instructions. For ‘first time’ users of this type of product, we recommend that introductory training is undertaken from an experienced person before use. -
Page 25: Connecting To Power
Starting / Stopping Connecting To Power 1. To prevent strain on the cable during use, make a small loop in the power cable. Put the loop through the hole in the handle and on the hook. Slowly pull the loop back to remove the slack. Connect the plug to a power socket. -
Page 26: Operating
Operating The Chain Brake Always check that chain brake works properly before use. CAUTION! The chain brake has been designed to reduce the possibility of injury if kickback occurs. However, it cannot be relied upon to protect you against injury if the chainsaw is used carelessly. -
Page 27: Correct Use Of Chain Brake
5. Operate the chain brake by turning your left wrist against the front hand guard whilst gripping the front handle. 6. The chain should stop immediately. 7. Release the power trigger. If the chain does not stop immediately contact Hyundai Power Products. -
Page 28: Using The Chainsaw
Using The Chainsaw NOTE: We strongly recommend that this machine is connected to the mains supply via a Residual Current Device (RCD). Holding The Chainsaw Correctly Hold the chainsaw firmly with both hands. Always keep your left hand on the front handle and your right hand on the rear handle. -
Page 29: Working
Working Basic Cutting Procedure WARNING! Chainsaws by their very nature are extremely dangerous machines and should be handled with respect! We strongly recommend that before use of this product, you attend a chainsaw training course to familiarise yourself with the maintenance and usage of these products! Thoroughly read this manual and adhere to all safety instructions at all times. - Page 30 Working Basic Cutting Procedure (Continued) 5. Ensure the saw chain is running at full speed before it makes contact with the wood. Use spiked bumper to secure the product onto the wood before starting to cut and use it as a leverage point while cutting (See below).
-
Page 31: Felling A Tree
Working Felling A Tree WARNING! Before commencing work or attempting to fell any tree, check with your local council to ensure you have permission! Even in your own garden you may be in a conservation area, the tree you wish to fell may have a conservation order against it or the tree may be visible on the plans of your house –... -
Page 32: Notching Undercut
Working Notching Undercut Make the notch (see figure below - B) 1/3 the diameter of the tree, perpendicular to the direction of falls. Make the lower horizontal notching cut first. This will help to avoid pinching either the saw chain or the guide bar when the second notch is being made. Felling Back Cut 1. -
Page 33: Limbing And Pruning
Working Limbing And Pruning Limbing is removing the branches from a fallen tree. When limbing leave larger lower limbs to support the log off the ground. Remove the small limbs in one cut (see below). Branches under tension should be cut from the bottom up to avoid binding the product. WARNING! Never climb into a tree to limb or prune! Do not stand on ladders, platforms, logs, or in any position which may cause you to lose the balance or control of the saw! When pruning trees, it is important not to make the flush cut next to main limp or trunk until... -
Page 34: Bucking A Log
Working Bucking A Log Bucking or cross-cutting is cutting a log into lengths. It is important to make sure your footing is firm and your weight is evenly distributed on both feet. When possible, the log should be raised and supported by the use of limbs, logs or chocks. 1. -
Page 35: Maintenance And Care
Maintenance And Care Maintenance Safety IMPORTANT - Routine and accurate maintenance is essential for maintaining original machine safety and performance levels. WARNING - Before cleaning or doing maintenance work, you need to unplug the chainsaw from the mains. You need to wear proper clothing and protective gloves whenever your hands are at risk. -
Page 36: Other Maintenance
Maintenance And Care Other Maintenance 1. Check the chain tension regularly and adjust as often as necessary to keep the chain snug on the bar. A new chain will require more frequent adjustment. 2. Check the mains cable before each use. Do not use the chainsaw if the cable is damaged in any way. -
Page 37: Transporting
Only use compatible chains to avoid damaging your machine. Using non-recommended replacement parts may result in damage to your machine or serious personal injury. Replacement chain bars and chains can be obtained from HYUNDAI Power Products. The bar needs to be renewed if: •... -
Page 38: Removing Existing Bar And Chain
Maintenance And Care Removing Existing Bar And Chain WARNING! Make sure that the chainsaw is disconnected from the mains supply before continuing. 1. Loosen the chain tension and then remove the housing cover by rotating the cover locking screw anticlockwise. 2. -
Page 39: Specifications
Specifications Model HYC1600E HYC2400E Rated Voltage 230-240V~50Hz 230-240V~50Hz Motor Power Rating 1600W 2400W Chain Speed 13m/s 15m/s Chain Stopping Time 0.15 seconds 0.15 seconds (Kickback) Maximum Cutting Length 335mm / 33.5cm 385mm / 38.5cm Oil Type Chain lubricating oil Chain lubricating oil... -
Page 40: Spare Parts
Only use original spare parts: The use of non-original and/or incorrectly fitted parts will jeopardize the safety of the machine, may cause accidents or personal injuries for which the Manufacturer is under no circumstance liable or responsible. HYC1600E Description Part Number... -
Page 41: Disposal
Disposal Environmental Protection 1. Environmental protection should be a priority of considerable importance when using the machine, for the benefit of both social coexistence and the environment in which we live. Try not to cause any disturbance to the surrounding area. 2. -
Page 42: Our Product Range
Our Product Range Generators Mini Dumpers Leisure Inverter, Petrol, Diesel And Built-In 4-Wheel Drive Mini Dumpers And Tracked Motorhome Generators Dumpers Pressure Washers Yard Sweeper Petrol, Diesel And Electric Pressure Washers Self Propelled Yard Sweeper Power Brush Water Pumps Scarifiers Submersible, Clean And Dirty Water And Petrol Lawn Scarifier And Aerator Professional Chemical Water Pumps... -
Page 43: Useful Information
Go to www.hyundaisupport.co.uk or search ‘Hyundai Power Products’ in YouTube. Warranty Proof of purchase will be required before you make a warranty claim. Full warranty terms and conditions can be found on the HYUNDAI POWER PRODUCTS website: www.hyundaipowerproducts.co.uk Manual Updates Our manuals are constantly being reviewed and updated. -
Page 44: Notes
Notes... - Page 45 Notes...
-
Page 46: Contact Us
Need Help? Talk To Our Experts Contact Us Our friendly aftersales team will be more than hapy to help you. Phone Call our team on 01646 687880, open Monday-Friday 8.30am-5pm. Email aftersales@hyundaipowerproducts.co.uk Online Live Chat Go to www.hyundaipowerproducts.co.uk Live chat is open Monday-Friday from 8.30am-5pm. As soon as you have purchased the machine, we recommend that you fill out the following. -
Page 47: Declaration Of Conformity
HYC2400E 2400w 104.5dB(A) 107dB(A) Product Details Brand: Hyundai Model: HYC1600E, HYC2400E Description: Electric chainsaw Name and address of technical documentation holder and EU distributor: Genpower Ltd, Isaac Way, Pembroke Dock, Pembrokeshire, SA72 4RW, UK. Signed by: Roland Llewellin, Managing Director... - Page 48 Importer: GENPOWER LTD Isaac Way, London Road, Pembroke Dock, UNITED KINGDOM, SA72 4RW T: +44 (0) 1646 687 880 F: +44 (0) 1646 686 198 E: info@hyundaipowerequipment.co.uk www.hyundaipowerproducts.co.uk Imported/Distributed by Genpower Ltd for The United Kingdom & Ireland Licensed by Hyundai Corporation, Korea...
