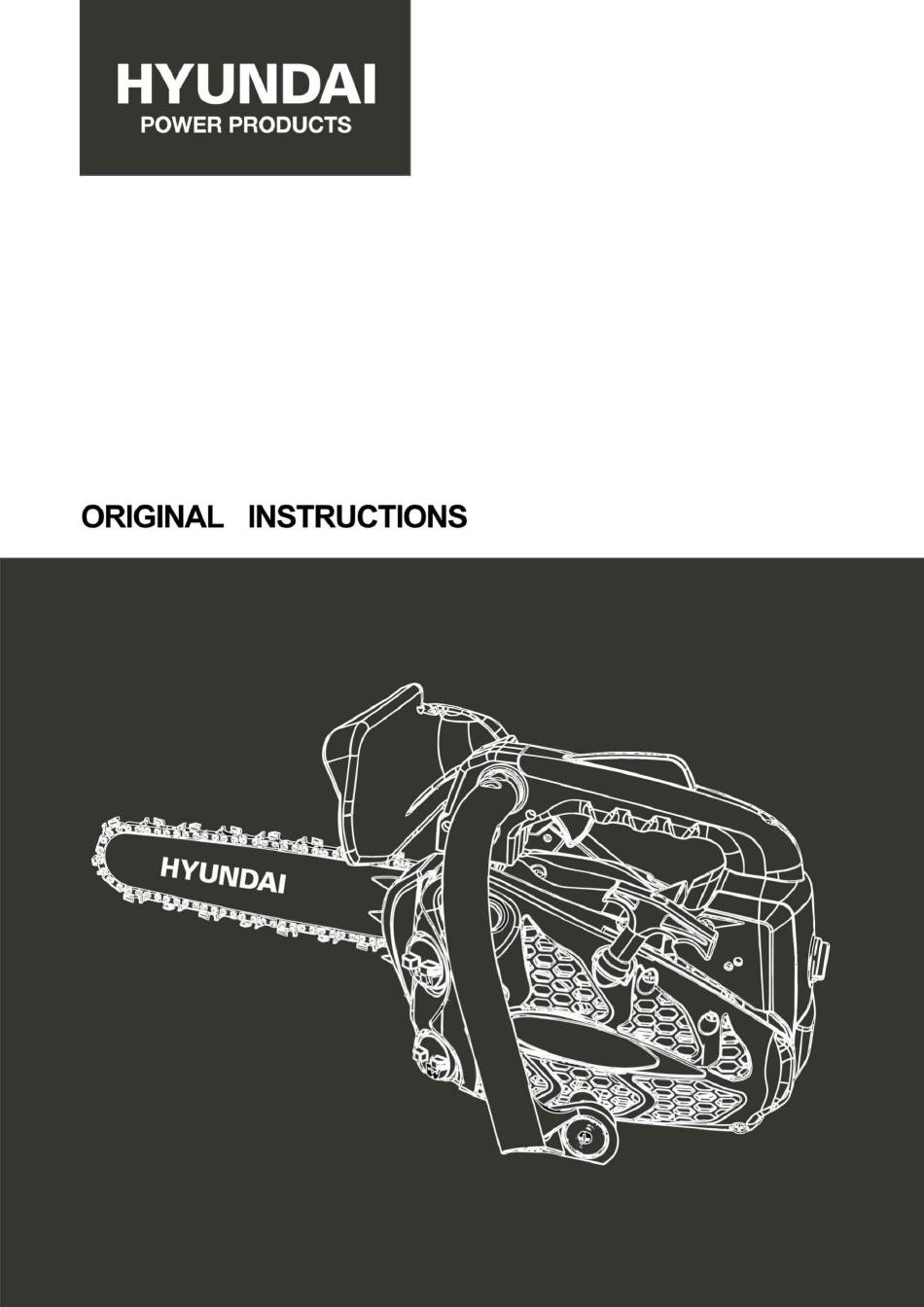

- Page 1 PETROL PRUNING CHAIN SAW HEL2525PRO WARNING: Read thoroughly the instruction manual before use.
-
Page 2: Table Of Contents
CONTENTS 1. SAFETY WARNINGS......................3 2. YOUR PRODUCT........................7 3. ASSEMBLY..........................9 4. FILLING THE FUEL TANK....................10 5. OPERATION..........................11 6. MAINTENANCE AND STORAGE..................16 7. DECLARATION OF CONFORMITY ..................20 8. WARRANTY...........................21 9. PRODUCT FAILURE......................22 10. WARRANTY EXCLUSIONS....................23... -
Page 3: Safety Warnings
1. SAFETY WARNINGS WARNING! When using this type of power tool, basic precautions should always be followed to reduce the risk of fire, electric shock and injury. Read all instructions carefully before attempting to use this product and retain these instructions. Be ... - Page 4 Place the equipment in a well-lit area on a flat, stable, dry and well-ventilated surface, away from flammable materials and with plenty of space for sparking and sharpen waste. Do not allow anyone, especially children, to come within a radius of at least five meters around the work area when all work is in progress.
- Page 5 Wear protective gloves when assembly, disassembly, sharpening chain tensioning and when handling the guide bar. Guide-bar and chain adjustments should be perform with the engine stopped. Regularly check and test the chain brake. Hazards may be encountered while using the saw, such as blockage of the saw chain, in order to ...
- Page 6 for long periods of time or not properly managed and properly maintained. There is risk of injury and property damage due to attachments or the sudden impact of hidden objects when using the blade. Risk of injury to persons and property caused by flying objects. ...
-
Page 7: Your Product
2. YOUR PRODUCT Description... - Page 8 16- Fuel mixing bottle 8- Handle 17- Blade protection 9- Accelerator throttle 18- Assembly tools Technical data Model HEL2525PRO Type of engine RY1E34FC (air cooled 2-stroke petrol engine) Fuel Tank Volume 230cm³ Oil tank volume 160cm³ Idle speed of the engine 3300±300/min...
-
Page 9: Assembly
3. ASSEMBLY Assembly of the chain guide IMPORTANT: The machine must not be started during assembly. Wear protective gloves when handling the blade. 1) Pull the protective guard toward the front handle to check that the chain brake is not engaged. 2) Loosen the nuts and remove the chain cover. -
Page 10: Filling The Fuel Tank
8) Tighten the nuts and check if the chain is rotated correctly and tight. While lifting the chain guide, turn the content screw to apply correct tension to the chain. Then lock the crankcase nuts. Rotate the chain with your hand to check that it is turning without excessive resistance and that it is properly tightened. -
Page 11: Operation
Note: To avoid damage and accidents, DO NOT USE OTHER MIXTURES AND OTHER TYPES OF OIL / PETROL Storage of fuel The fuel must be kept in a clean and safe container and always closed. If you are not using the product for a long time, remove the fuel mixture and add it to a container. Do not leave the fuel for a long time in the product. - Page 12 Stopping the engine Allow the chainsaw to run for a few minutes. Then turn the switch to the OFF position. Main settings a. Adjusting the carburetor The carburetor is preset at the factory. To avoid malfunction, it is recommended not to adjust the adjustment screws.
- Page 13 d. Sharpening of the chain For best performance, we strongly recommend that you periodically sharpen the chain. The chain can either be sharpened by a professional or by yourself by providing you with a sharpening guide (make sure you know how to use it). The chain must be sharpened when: Wood chips have become powder To make a normal cut, force on the tool...
- Page 14 b. Safe positioning for two-hand operation In order to allow operators to hold the chain saw with both hands, it is generally recommended that they aim for a safe working position when operating the chain saw: At the hip, when cutting horizontal sections. At the level of solar plexus, when cutting vertical sections.
- Page 15 Only chainsaws should be used for tree pruning with one hand when: Operators cannot maintain a working position allowing them to use both hands They need to maintain their working position, allowing them to use both hands The saw is used in full extension, perpendicular to the body of the operator and separated from it. Operators should: Never cut with the rebound area at the end of the chain saw chain guide Never hold and cut sections or...
-
Page 16: Maintenance And Storage
b. Trunk on the ground Cut half of the trunk, turn it over and finish the cut on the other side. c. Trunk in elevation Begin by cutting a first part from below and then from above. Then, on the second part, repeat this operation. - Page 17 a. After each use Clean the engine block louvers with a blower. Check the chain brake if it is working properly. Clean the plastic parts before wiping with a damp cloth. Check the use of the chain guide Check the auto lubrication circuit if it is obstructed or not. Check sprocket condition Clean the cylinder fins with a compressor b.
- Page 18 Check: Reverse the bar from time to time to avoid the effects of wear. The bar rail should always be in place. Use a ruler to observe it. If a gap is observed between them, then the rail is normal. Otherwise, the rail is worn out.
- Page 19 Sharpening of the chain For best performance, we strongly recommend that you periodically sharpen the chain. The chain can either be sharpened by a professional or by yourself by providing you with a sharpening guide (make sure you know how to use it). The chain must be sharpened when: Wood chips have become powder To perform a normal cut, force on the tool#...
-
Page 20: Declaration Of Conformity
BUILDER SAS ZI, 32 rue Aristide Bergès – 31270 Cugnaux - France Declares that the machinery designated below: PETROL PRUNING CHAIN SAW HEL2525PRO Serial number: 20220666886-20220667185 Complies with the provisions of the Directive "machinery" 2006/42/EC and regulations National transposing it;... -
Page 21: Warranty
8. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 22: Product Failure
9. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 23: Warranty Exclusions
10. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
