Summary of Contents for Racing RAC52BPB

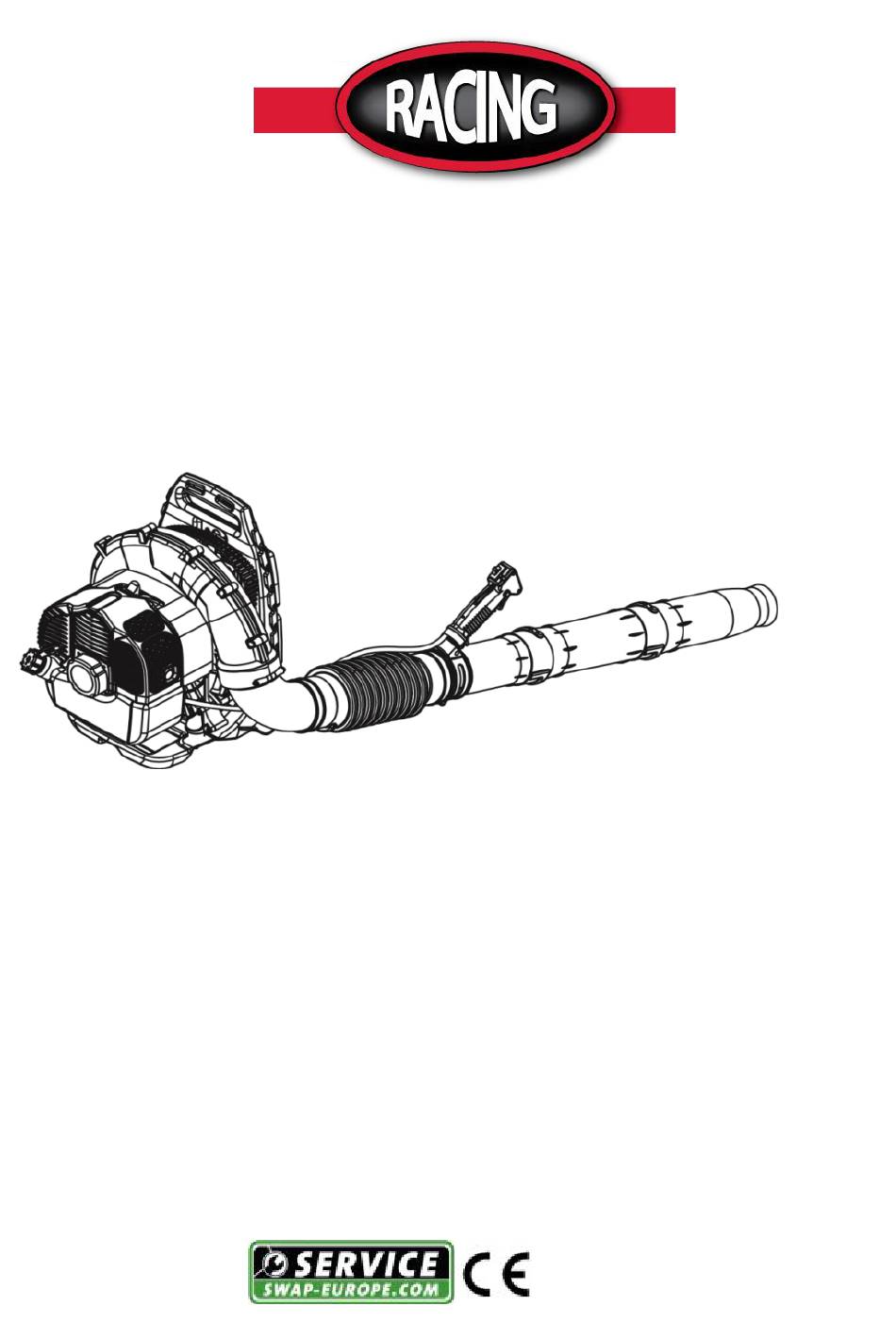

- Page 1 ORIGINAL INSTRUCTIONS BLOWER RAC52BPB READ THE INSTRUCTIONS BEFORE USE THE TOOL RACING 32, rue Aristide Bergès - ZI 31270 Cugnaux – France...
-
Page 2: Safety Warnings
SAFETY WARNINGS WARNING: For your own safety, please read this manual before attempting to operate your new unit. Failure to follow instructions can result in serious personal injury. Spend a few moments to familiarize yourself with your blower before each use. If you give this tool to another person, also hand over this manual. - Page 3 masks are available at most paint and hardware stores. • Operate the machine only at reasonable hours - not early in the morning or late at night when people might be disturbed. Comply with times listed in local ordinances. • Avoid using the machine in bad weather, especially when there is a risk of thunderstorms and lightning.
-
Page 4: Alcohol Or Drugs
WARNING: DO NOT ADD, REMOVE OR ALTER ANY COMPONENTS OF THIS PRODUCT. Doing so could cause personal injury and/or damage the unit, voiding the manufacturer’s warranty. • DO NOT OPERATE UNIT WHILE TIRED, SICK OR UNDER THE INFLUENCE OF ALCOHOL OR DRUGS. •... - Page 5 Maintenance and storage When the machine is stopped for servicing, inspection, or storage, or to change an accessory, shut off the power source and make sure that all moving parts have come to a complete stop. Allow the machine to cool before making any inspections, adjustments, etc.
- Page 6 Guarantee sound power level Risk of fire Hot surface Risk of inhalation of exhausted gas Intended use • This blower is meant to be used for blowing leaves, dust or garden debris into a desired direction. It must not to be used for blowing water, chemical products, flammable material, metal or wood and other dangerous objects.
- Page 7 DESCRIPTION 1. Frame carrier 10. Muffler 2. Side cover 11. Shock absorber 3. Wind cover 12. Flex connector 4. Spark plug cap 13. Bellows 5. Gasoline engine 14. Switch fixing seat 6. Starter handle 15. No.1 wind pipe 7. Fuel tank cap 16.
- Page 8 ASSEMBLY 1. Assemble straight pipe with swivel to the pipe (13). 2. Assemble flexible pipe (13) to elbow (12) on blower. 3. Assemble clamps (A1 and B) onto both extremities and tighten. 4. Loosen wing nut(C) completely, install stick handle clamp (D). Align notches (E) in handle clamp;...
- Page 9 FUELLING AND LUBRICATION Fuel Use regular grade unleaded gasoline mixed with 40:1 custom 2-cycle engine oil for best results. Use mixing ratios in the fuel mixing table below. WARNING: Never use straight gasoline in your unit. This will cause permanent engine damage and void the manufacturer’s warranty for the product.
-
Page 10: Hot Starting
• Do not use petrol which contains ethanol or methanol as it may damage the fuel lines and other engine parts. • Mix only enough fuel for your immediate needs. If fuel must be stored longer than 30 days, it should first be treated with a stabilizer or similar product. -
Page 11: Stopping Engine
STOPPING ENGINE Release the joystick, let the machine idle. Then press the switch to stop the machine. Blower operations 1. Use the blower for trees, shrubs, flower beds, and hard-to-clean areas. 2. Use the unit around buildings and for other normal cleaning procedures. 3. -
Page 12: Maintenance
MAINTENANCE Cleaning the Air Filter Dirty air filers reduce engine power increase fuel consumption and make starting more difficult. Turn choke knob to Release the screws (1) and pull off the filter cover (2). Remove the filter from the cover and inspect it - if it is dirty or damaged, clean the filter or fit a new one. - Page 13 Do not expose the container to direct sunlight for unnecessarily long periods. UV rays can make the container material brittle, which could result in leaks or breakage. Specifications MODELE............. RAC52BPB Length............... 460mm Width..............360mm Height ............... 438mm Net Weight............Max. 13kg Engine Type............
- Page 14 ZI, 32 rue Aristide Bergès – 31270 Cugnaux - France Tel: +33 (0)5.34.502.502 Fax: +33 (0)5.34.502.503 Declares that the machines: BLOWER Model: RAC52BPB Serial No.: 20180727973 to 20180730072 The people name holding the technical file：M. Olivier Patriarca Have been designed in compliance with the following standards:...
