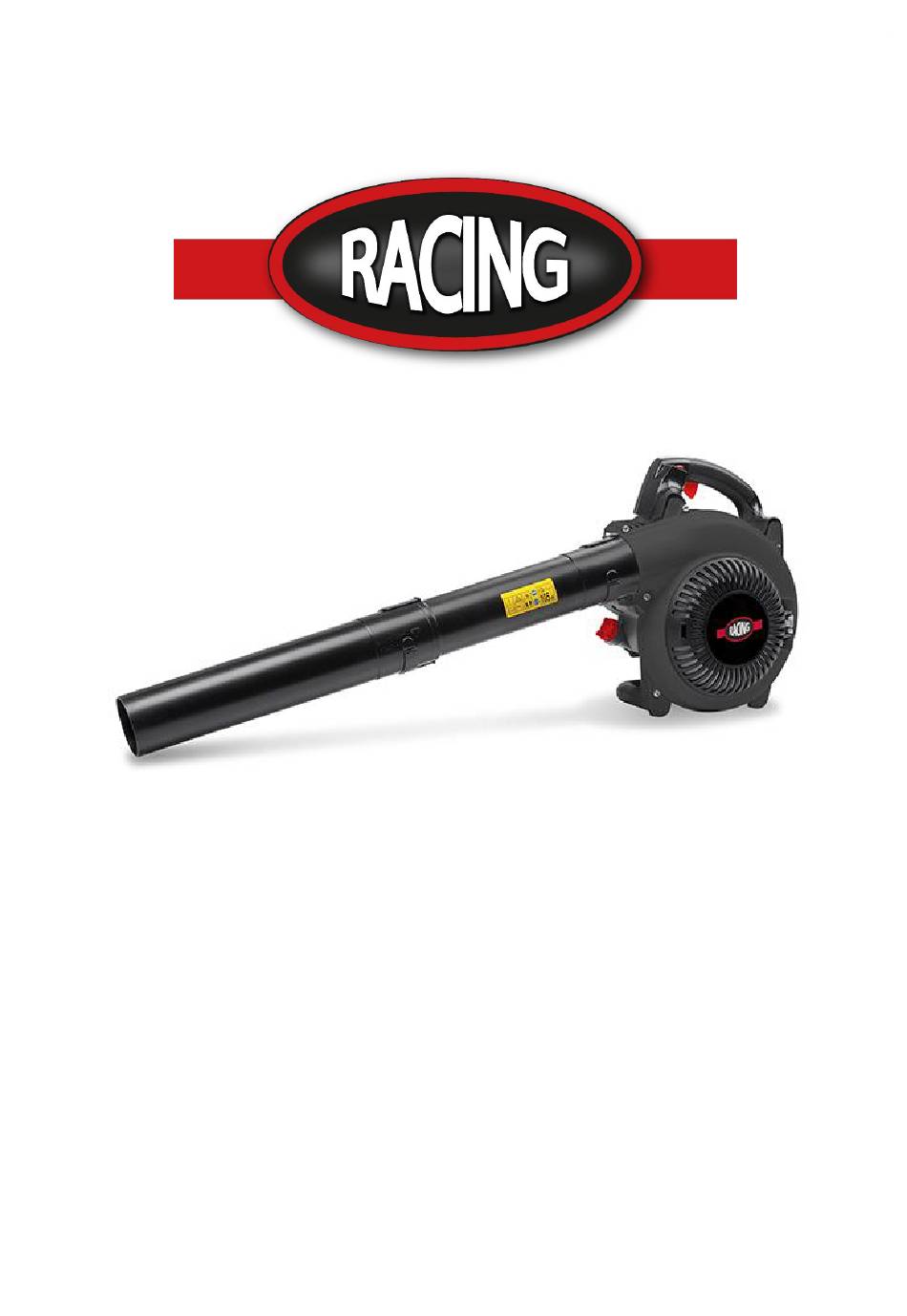

- Page 1 ORIGINAL INSTRUCTIONS>EN 4-STROKE PETROL BLOWER RACST264T USER GUIDE CAUTION: Read the instructions before using the machine.
-
Page 2: Table Of Contents
SOMMAIRE 1. SAFETY INSTRUCTIONS ................3 2. EXPLANATION OF SYMBOLS ..............6 3.INTENDED USE ....................7 4. KNOW YOUR PRODUCT ................8 5. ASSEMBLY ....................31 6. OPERATION ....................36 7. MAINTENANCE .................... 37 8. CLEANING AND STORAGE ................ 41 9 TROUBLESHOOTING ................... -
Page 3: Safety Instructions
1. SAFETY INSTRUCTIONS 1.2 GENERAL WARNINGS WARNING: For your own safety, please read this manual before attempting to operate your new unit. Failure to follow instructions can result in serious personal injury. Spend a few moments to familiarize yourself with your blower before each use. If you give this tool to another person, also hand over this manual. - Page 4 ⚫ Before starting the machine, clear the area where you are going to use it. Remove stones, broken glass, nails, wire ropes, ropes or other objects that could be thrown or get caught in the machine. ⚫ Always keep a good balance. Support yourself well on your legs and do not extend your arm too far. Otherwise, you could fall, slip or injure yourself.
- Page 5 ⚫ Never refuel inside a room ⚫ Never store the tool and the fuel tray indoors where there is a naked flame, such as near a water heater. ⚫ If fuel has spilled, do not attempt to start the machine, but rather move it away from the spill before starting to use it.
-
Page 6: Explanation Of Symbols
2. EXPLANATION OF SYMBOLS This operator’s manual describes safety and international symbols and pictographs that may appear on this product. Read the operator’s manual for complete safety, assembly, operating and maintenance and repair information. To reduce the risk of injury, user must read and understand operator’s manual before using this product. -
Page 7: Intended Use
1. • RUN choke position 2. • PARTIAL choke position 3. • FULL choke position OFF or STOP ON / START / RUN Hot surface Primer bulb Warning symbol 3.INTENDED USE This engine gasoline powered blower is intended for Cleaning yards, garages, driveways, porches, patios, around walls, fences, etc. -
Page 8: Know Your Product
4. KNOW YOUR PRODUCT 4.1 PRODUCT DESCRIPTION 1 Air Filter Cover 2 Choke Lever 3 Primer Bulb 4 Fuel Cap 5 Starter Rope Grip 6 Oil Fill Plug 7 Muffler 8 Spark Plug Cover 9 On/Off Switch 10 Handle 11 Throttle Control 12 Upper Blower Tube 13 Lower Blower Tube... -
Page 9: Assembly
4.2 TECHNICAL DATA Engine Type Air-Cooled, 4-STROKE Engine displacement 26.5 cm³ Maximum engine capacity 0.65 kW Engine rating speed 7000min Engine max speed 11000min Engine min speed 3500+/-300 min Air speed 198 km/h Air volume 690 m Fuel tank capacity 280 cm³... - Page 10 2) Installing the Lower Blower Tube • Align the slots on the lower blower tube with the bumps on the lower end of the upper blower tube (Fig. 2). • Install the lower blower tube onto the upper blower tube (Fig. 2). •...
- Page 11 5) ADDING OIL: INITIAL USE WARNING ! OVERFILLING THE CRANKCASE MAY CAUSE SERIOUS PERSONAL INJURY. Check the oil level before each use. The importance of maintaining the proper oil level cannot be overemphasized. Change the oil according to the Maintenance Schedule. Note: This unit was shipped without oil in the crankcase.
- Page 12 Place the fuel container spout into the fuel tank fill hole and fill the tank. Note: Do not overfill the tank. d) Wipe up any fuel that may have spilled. e) Reinstall the fuel cap. Move the unit at least 30 ft. (9.1 m) from the fuel container and the fueling site before starting the engine.
- Page 13 DO NOT squeeze the throttle control. Crouch in the starting position (Fig. 7). g) DO NOT squeeze the throttle control. Pull the starter rope with a controlled and steady motion 3 to 5 times to start the engine (Fig. 7). h) Allow the engine to warm up less than 10 seconds, then squeeze the throttle control to return the choke to the Choke OFF position and operate the blower.
-
Page 14: Operation
6. OPERATION WARNING! Clear the area of children bystanders, and pets. At a minimum, keep all children, bystanders, and pets outside a 15 m (50 ft) radius; outside the 15 m (50 ft) zone, there is still a risk of injury from thrown objects. Bystanders should be encouraged to wear eye protection. -
Page 15: Maintenance
6.2 HOLDING THE UNIT • Stand in the operating position (Fig. 8). Stand up straight. Do not bend over. • Keep feet apart and firmly planted. • Hold the unit in front of, and away from, your body (Fig. 8). WARNING! To prevent serious personal injury or damage to the unit, DO NOT hold the unit at your side (Fig. - Page 16 4) Unscrew the oil fill plug. Look into the oil fill hole; use a flashlight if necessary. Add oil to the oil fill hole until the oil level is visible on the first thread of the oil reservoir (Fig.10). If the oil level is too low, add oil to the oil fill hole until the oil level touches the bottom thread of the oil fill hole.
- Page 17 7.4 CHANGING THE OIL Change the oil while the engine is still warm. The oil will flow freely and carry away more impurities. Clean the area around the oil fill plug (Fig. 9) to prevent debris from entering the oil fill hole. Unscrew the oil fill plug.
- Page 18 7.6 ADJUSTING THE IDLE SPEED If the engine will not idle properly: 1) Start the engine. Refer to Starting and Stopping. 2) Let the engine idle. If the engine stops, increase the idle speed. Use a small Phillips screwdriver to turn the idle speed screw clockwise, 1/8 of a turn at a time, until the engine idles smoothly (Fig.
-
Page 19: Cleaning And Storage
8. CLEANING AND STORAGE 8.1 CLEANING WARNING! to avoid serious personal injury, always stop the engine and allow it to cool before cleaning or maintaining the unit. Use a small brush to clean the outside of the unit. Do not use strong detergents. Household cleaners that contain aromatic oils such as pine and lemon, and solvents such as kerosene, can damage plastic. -
Page 20: Troubleshooting
8.5 FUEL SYSTEM Empty the fuel system before storage for 30 days or longer. Drain the gas tank, start the engine and let it run until the fuel lines and carburetor are empty. Use fresh fuel next season. Under OIL AND FUEL section of this manual, see message labeled IMPORTANT regarding the use of blended and E85 fuel in your engine. -
Page 21: Declaration Of Conformity
10. DECLARATION OF CONFORMITY BUILDER ZI, 32 rue Aristide Bergè s – 31270 Cugnaux - France Declares that the machinery designated below: PETROL Blower Model: RACST264T Serial number: 20211156576-20211157275 Complies with the provisions of the Directive "machinery" 2006/42/EC and regulations National transposing it;... -
Page 22: Warranty
11. WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 23: Product Failure
12. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: Empty the fuel tank. Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 24: Warranty Exclusions
13. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: Start-up and setting up of the product. Damage resulting from normal wear and tear of the product. Damage resulting from improper use of the product. Damage resulting from assembly or start-up not in accordance with the user manual. Breakdowns related to carburetion beyond 90 days and fouling of carburetors. - Page 25 BUILDER SAS 32 rue Aristide Berges - Z.I. du Casque - 31270 Cugnaux - France. MADE IN PRC 2021...
