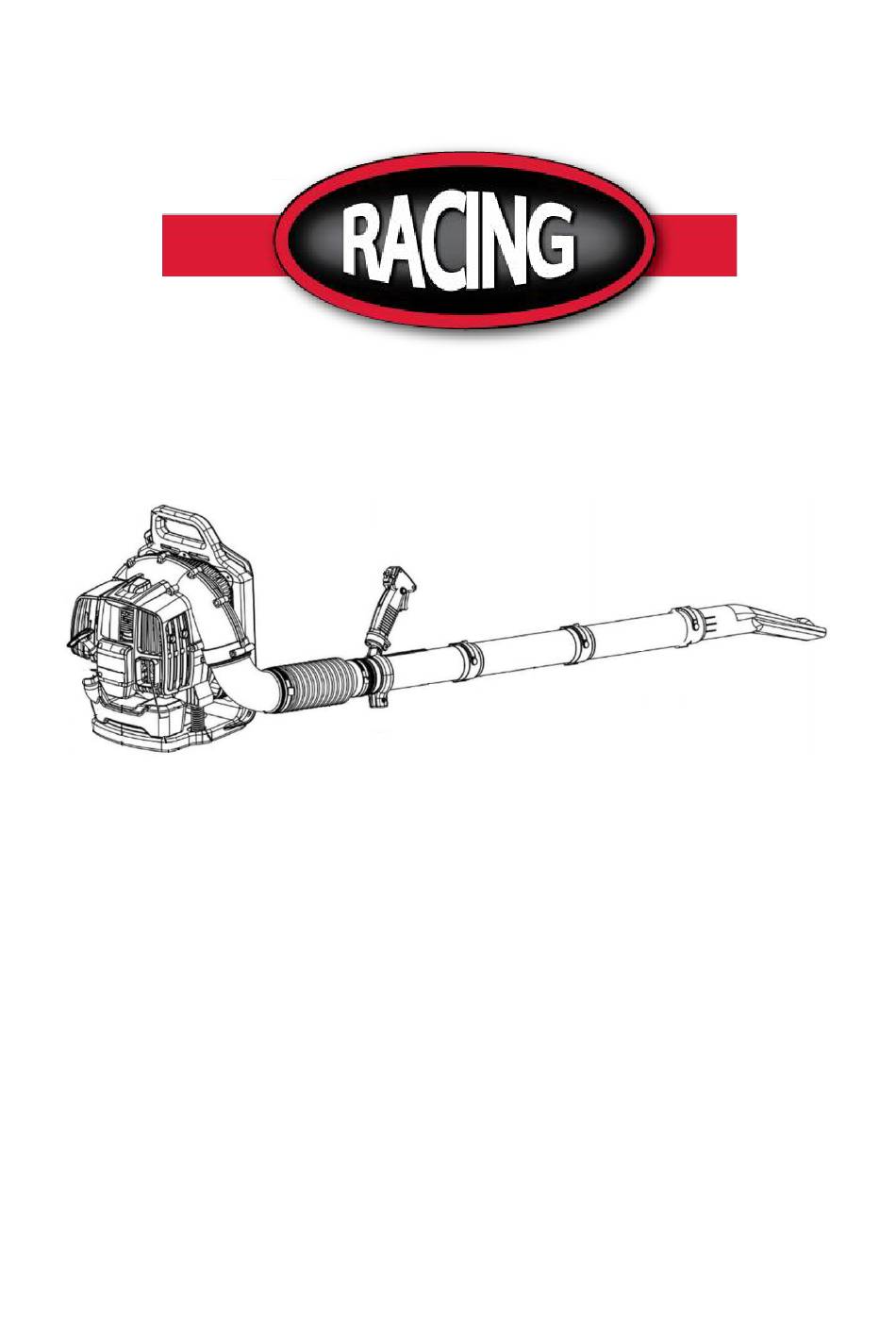

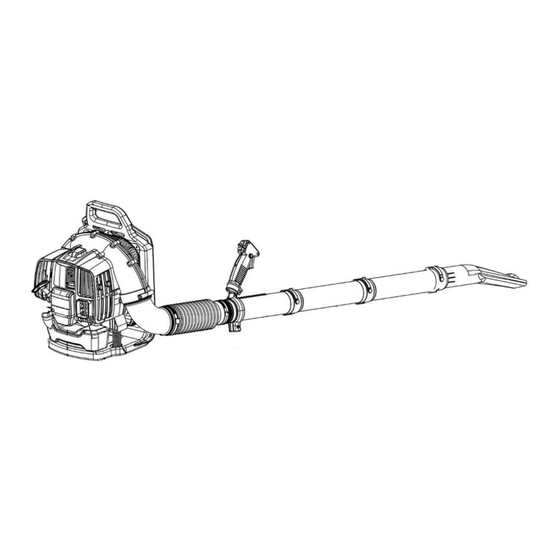

- Page 1 ORIGINAL INSTRUCTIONS=>EN PETROL BLOWER RAC52BPB-2 USER GUIDE CAUTION: Read the instructions before using the machine!
-
Page 2: Table Of Contents
CONTENTS 1. SAFETY INSTRUCTIONS........................3 2. DESCRIPTION............................7 3. ASSEMBLY............................. 8 4. FUELLING AND LUBRICATION......................8 5. STARTING/STOPPING THE MACHINE.....................9 6. MAINTENANCE ...........................11 7. SPECIFICATIONS..........................12 8. DECLARATION OF CONFORMITY....................13 9. WARRANTY............................14 10. PRODUCT FAILURE.........................15 11. WARRANTY EXCLUSIONS......................16... -
Page 3: Safety Instructions
1. SAFETY INSTRUCTIONS WARNING: For your own safety, please read this manual before attempting to operate your new unit. Failure to follow instructions can result in serious personal injury. Spend a few moments to familiarize yourself with your blower before each use. If you give this tool to another person, also hand over this manual. - Page 4 Avoid using the machine in bad weather, especially when there is a risk of thunderstorms and lightning. In case of accident, immediately stop using the machine. Turn the machine off and check the problem. Do not use the machine while the machine is damaged. ...
- Page 5 WARNING: DO NOT ADD, REMOVE OR ALTER ANY COMPONENTS OF THIS PRODUCT. Doing so could cause personal injury and/or damage the unit, voiding the manufacturer’s warranty. DO NOT OPERATE UNIT WHILE TIRED, SICK OR UNDER THE INFLUENCE OF ALCOHOL OR DRUGS.
- Page 6 with care and keep it clean. Store the machine in a dry place out of the reach of children. Always allow the machine to cool before storing. Replace worn or damaged parts for safety. Use only genuine replacement parts and accessories.
-
Page 7: Description
Risk of fire. Hot surface. Risk of inhalation of exhausted gas. Intended use This blower is meant to be used for blowing leaves, dust or garden debris into a desired direction. It must not to be used for blowing water, chemical products, flammable material, metal or wood and other dangerous objects. -
Page 8: Assembly
3. ASSEMBLY 1. Assemble straight pipe with swivel to the pipe (13). 2. Assemble flexible pipe (13) to elbow (12) on blower. 3. Assemble clamps (A1 and B) onto both extremities and tighten. 4. Loosen wing nut(C) completely, install stick handle clamp (D). Align notches (E) in handle clamp;... -
Page 9: Starting/Stopping The Machine
Oil / fuel mixture First put oil in an approved container. Then add gasoline, and shake the container to get a full mix. The oil / fuel ratio must be 40: 1 Refueling Open the fuel tank by removing its cap. Gently pour the fuel. Wipe off any overflow. Then close the tank. - Page 10 HOT STARTING 1. Move throttle lever (A) to idle detent position move the stop switch to "I" position 2. Then push the throttle level on the OPEN position. 3. Pull recoil starter handle and engine should start. STOPPING ENGINE Release the joystick, let the machine idle. Then press the switch to stop the machine. Blower operations 1.
-
Page 11: Maintenance
6. MAINTENANCE Cleaning the Air Filter Dirty air filers reduce engine power increase fuel consumption and make starting more difficult. Turn choke knob to Release the screws (1) and pull off the filter cover (2). Remove the filter from the cover and inspect it - if it is dirty or damaged, clean the filter or fit a new one. -
Page 12: Specifications
7. SPECIFICATIONS Model RAC52BPB-2 1E44F-5 Engine Air cooled, two-stroke, single cylinder gasoline Displacement 52cm³ Rated power 1,45 kW Idle Speed 3000/min Max speed 7500/min Air volume 890m Air speed. 78m/s Fuel Mixed (Gasoline and Two-stroke Oil) 40:1 High Performance, two-stroke air... -
Page 13: Declaration Of Conformity
32 rue Aristide Bergès - Z.I. du Casque - 31270 Cugnaux - France Tel: +33 (0)5.34.502.502 Fax: +33 (0)5.34.502.503 Declares that the machines: PETROL BLOWER Model: RAC52BPB-2 Serial No.: 20230905271-20230905470 The people name holding the technical file：M. Olivier Patriarca Have been designed in compliance with the following standards:... -
Page 14: Warranty
9. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 15: Product Failure
10. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 16: Warranty Exclusions
11. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •... - Page 17 BUILDER SAS 32 rue Aristide Bergès - Z.I. du Casque - 31270 Cugnaux - France Made in PRC 2023...
