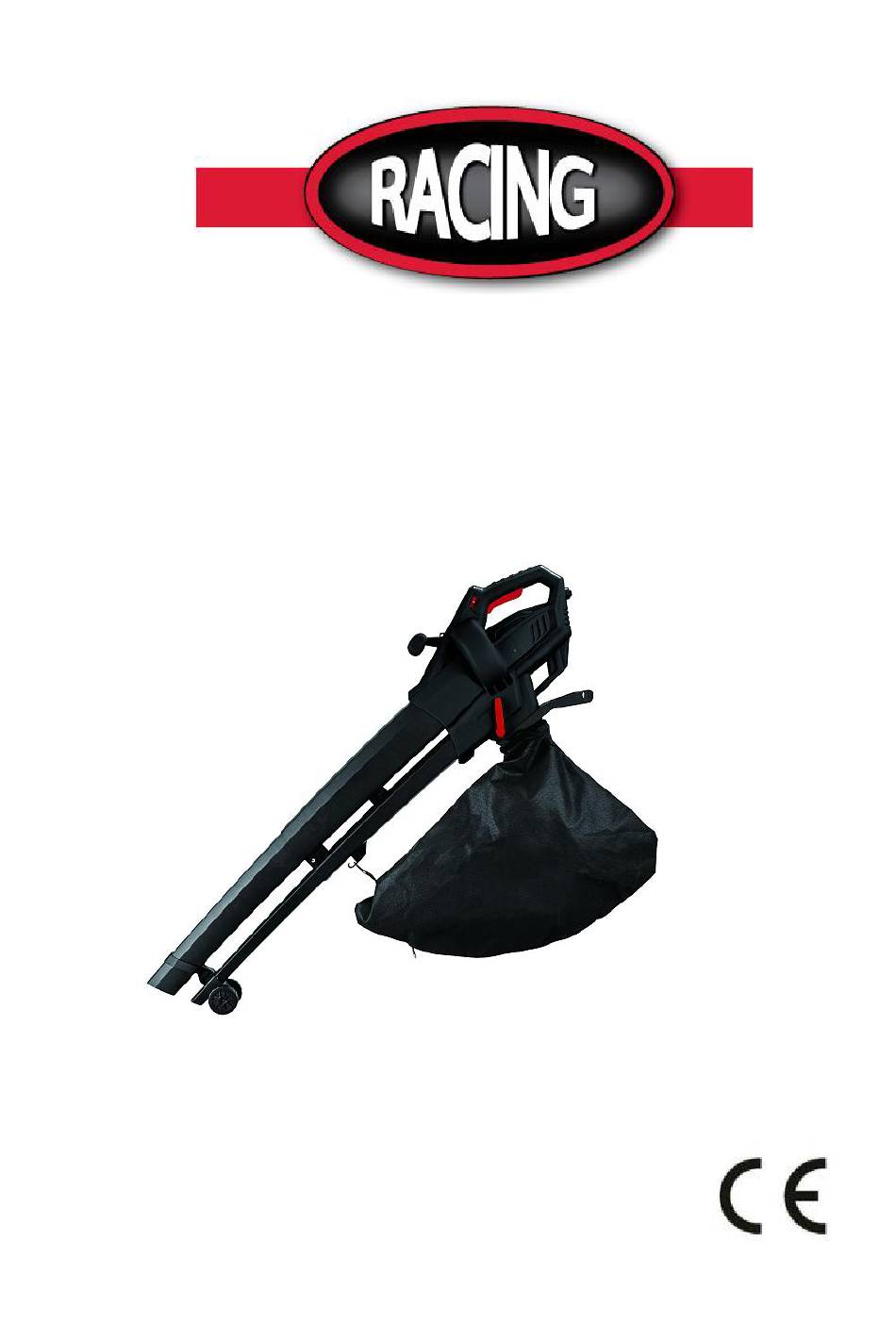

- Page 1 ORIGINAL INSTRUCTIONS Electric Blower Vacuum Shredder 3000W RAC3000EB-A INSTRUCTION MANUAL WARNING: Read this manual carefully before use it. BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux – France MADE IN PRC 2020...
- Page 2 FIG. 1...
- Page 3 APPLICATION This vacuum blower is intended to be used for the vacuuming and the blowing of leaves, dust, and similar little materials. It must not to be used for vacuuming and blowing water, chemical products, flammable material, metal or wood and others dangerous objects. •...
- Page 4 SYMBOLS Read operator’s manual SWITCH OFF: Remove plug from mains before cleaning or maintenance Do not expose to rain Wear eye protection Keep bystanders away Disconnect the mains plug if the cord becomes damaged or entangled Guarantee sound power level...
-
Page 5: General Power Tool Safety Warnings
GENERAL POWER TOOL SAFETY WARNINGS Read all safety warnings and instructions. Failure to heed warnings and follow instructions may result in electric shock, fire and/or serious injury. Keep safety warnings and instructions for future reference. The term "power tool" in the safety warnings refers to your mains-operated (corded) power tool or battery- operated (cordless) power tool. - Page 6 Preparation a) Obtain ear protection and safety glasses. Wear them at all times while operating the machine. b) While operating the machine always wear substantial footwear and long trousers. Do not operate the machine when barefoot or wearing open sandals. Avoid wearing clothing that is loose fitting or that has hanging cords or ties.
- Page 7 Operation a) Before starting the machine, make certain that the feeding chamber is empty. b) Keep your face and body away from the feed intake opening. c) Do not allow hands or any other part of the body or clothing inside the feeding chamber, discharge chute, or near any moving part.
- Page 8 i) If the machine becomes clogged, shut-off the power source and disconnect the machine from supply before cleaning debris. j) Never operate the machine with defective guards or shields, or without safety devices, for example debris collector in place. k) Keep the power source clean of debris and other accumulations to prevent damage to the power source or possible fire.
- Page 9 c) Always allow the machine to cool before storing. d) When servicing the shredding means be aware that, even though the power source is switched off due to the interlock feature of the guard, the shredding means can still be moved. e) Replace worn or damaged parts for safety.
- Page 10 - Warning - never allow children, persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge or people unfamiliar with these instructions to use the machine, local regulations may restrict the age of the operator. - Warning - never operate the machine while people, especially children, or pets are nearby.
- Page 11 - Do not use the machine when you are tired, under the influence of alcohol, drugs or when you are sick. - Use the tool to vacuum and blow leaves and similar materials. Do not blow flammable materials, cigarette butts and materials that may damage the unit. - Do not use the appliance to suck up water or wet debris.
- Page 12 - Do not place any objects inside the tube and inside the tool. - Before using the machine and after a shock, check for signs of wear or damage. Please make repairs if necessary. - Inspect and maintain the product regularly. Repairs should only be performed by an authorized service center or qualified specialist.
- Page 13 - The tool must be connected to an extension cable. The extension cable shall not be lighter than the standardised code H05 RN-F/H05 VVF. See your retailer or manufacturer for more advice. - Never to operate the machine with defective guards or shields, or without safety devices, or if the cord is damaged or worn;...
- Page 14 - In case of accident, immediately stop using the machine. Turn off and unplug it and check the problem. Do not use the machine while the machine is damaged. - Before and after use, inspect the machine and the supply and extension cord for signs of damage or ageing.
- Page 15 appear on the fingers, hands or wrists. The risk increases at low temperature. - Inhalation of particles of blown / aspirated material. - Involuntary projections. - Contact with foreign bodies. - Contact with the tool in operation. - Hearing loss in the absence of proper hearing protection.
- Page 16 ASSEMBLY Your new electric blower vacuum requires very little assembly work before it is ready for use. Assembling the tubes 1. Slide the rear blow/suction tube into the suction/blower housing and make sure it fits correctly and is fully inserted Screw the tube with the provided screw (1 and 2). 2.
- Page 17 Assembling the collection bag support Insert the collection bag support into the collection bag and make sure it fits correctly and is fully inserted. Secure it with the string belt on collection bag has been tightened. Fitting the collection bag Before fitting the collection bag, ensure that the Vacuum/Blower selector lever of the additional adjustable handle operates smoothly and that it is not obstructed by debris from previous use.
- Page 18 Fitting the shoulder strap The blower vacuum is supplied with a shoulder strap. The shoulder strap should be attached to the top of the main body of the blower vacuum as shown (5.1). The shoulder strap is provided to reduce fatigue and aid comfort when using the blower-vac and can be worn in a position to suit the operator (5.2).
- Page 19 Use/Operation The easiest way to use the blower vacuum is to place the shoulder strap in a comfortable position over your shoulder and hold the rear handle at hip height so that the majority of the tool’s weight rests on the rollers. When using the blower vacuum to pick up leaves it is best to move the tool on its rollers.
-
Page 20: Troubleshooting
Collection bag Note: Before you remove and empty the collection bag ensure that the tool has been disconnected from the mains power supply. To empty the collection bag, remove it from the tool and empty it. CLEANING AND MAINTENANCE Attention! Before performing any work on the equipment, unplug the tool. Warning - Danger of moving hazardous parts. - Page 21 TECHNICAL DETAILS Model nr. RAC3000EB-A Voltage / frequency : 230-240V~ 50Hz Power 3000W No load speed : 8000-14000/min Air speed 120-240 km/h Max air volume 13 m³/min （780 m³ / h） collection bag 40 L Shredding ratio : 10:1 Weight Max.
- Page 22 Warranty We guarantee this product for 2 full years. The warranty period for this item starts on the day of purchase. You can prove the date of purchase by sending us the original receipt. We insure over the entire warranty period: •...
- Page 23 Tel: +33 (0)5.34.502.502 Fax: +33 (0)5.34.502.503 Declares that the machines: Electric Blower Vacuum Shredder 3000W Model: RAC3000EB-A Serial No.: from XXXXXX XXXXXX The people name holding the technical file：M. Olivier Patriarca Have been designed in compliance with the following standards: EN 60335-1:2012 + A11:2014 + A13:2017 EN 50636-2-100:2014;...
