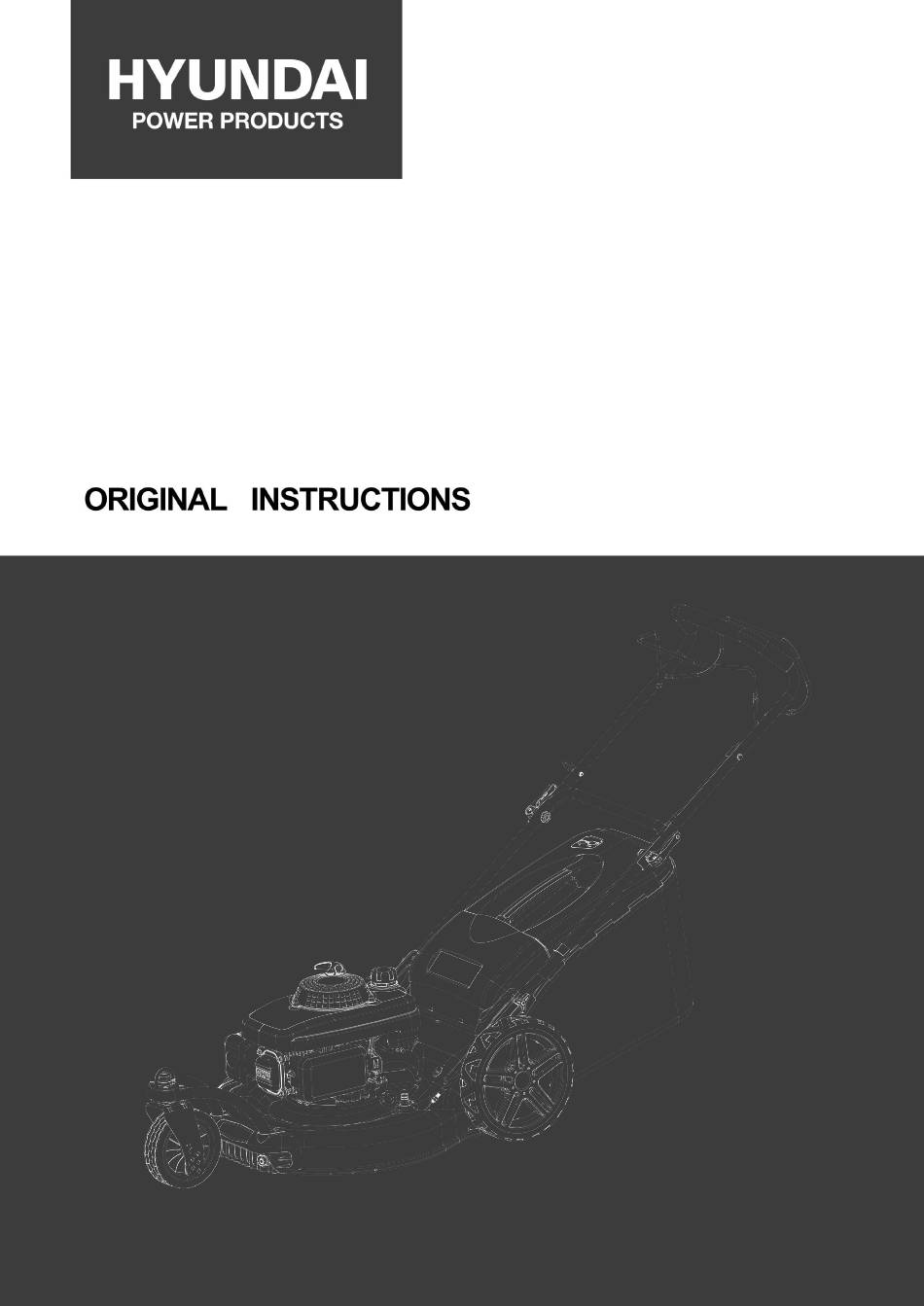

- Page 1 PETROL LAWN MOWER HTD513R-1 WARNING: Read thoroughly the instruction manual before use...
-
Page 2: Safety Instructions
1. SAFETY INSTRUCTIONS Instructions Read the instructions carefully. Be familiar with the controls and proper use of the equipment. Never allow children to use this mower. If the mower is given to an other people, also give this manual. Also ... - Page 3 recommendations. The controls must be always checked if they are functioning correctly. In case of malfunction, do not use the tool and bring to a service agent for inspection. Stop the engine immediately: o Every time you leave the tool alone and the working area o Before refuelling.
- Page 4 Warning: be careful about exhaust gas. Do not inhale them. Wear adequate clothing such as long trousers and a protective equipment: slip-resistant foot protection, hearing protection, eyes protection and gloves. To avoid health issues, limit the time of operation. Take enough rest. Exposure to noise and vibrate can have bas consequences on health.
- Page 5 Symbols Warning Read the instruction manual Warning! Risk of projections. Keep bystanders away Risk of injury from sharp blades! Keep your feet and hands away. Stop the machine before removing any foreign objects from the working area. Never mow while people, especially children, or animals are nearby. Guarantee sound power level.
- Page 6 Wheel drive on：pull the workout bar Tank cover symbols： Note on fuel filler necks Warning! Check the oil level before starting. Oil filler cap symbols: Note on oil filler necks Symbols used in the manual： Danger symbol and indications relating to the prevention of bodily injury or material damage.
- Page 7 Description Technical data Model HTD513R-1 Engine displacement cm³ Nominal power 3.5 kW Speed 2900/min Cutting width 510mm Cutting height 6 positions Grass catcher capacity Weight 33 kg Guarantee sound power level 98 dB(A) Sound pressure level 85,7 dB (A), K...
- Page 8 ASSEMBLY Handle Unfold handle carefully so as not to pinch or damage control cables. 1. Raise handles until lower handle section locks into place in mowing position. 2.Remove protective padding, raise upper handle section into place on lower handle and tighten both handle knobs. Front wheel &...
-
Page 9: Adjust Cutting Height
Mulching kit Before using the mulching kit, the lateral discharge must be removed. Assembly Remove the grass catcher if installed. Lift the flap. Fully insert the mulching kit at the back of the tool. Press the kit to lock it in place. Disassembly Lift the flap. -
Page 10: Filling Fuel Tank
FILLING FUEL TANK a. Filling tank WARNING! Gasoline is extremely flammable. Store fuel in specially designed cans for this purpose. Fill the fuel tank only outdoors and before starting the engine. Do not smoke when filling the fuel tank or handling fuel. -
Page 11: Operation
OPERATION Start the device on a safe and flat ground, preferably not in tall grass. Make sure that the cutting tools do not touch objects or the ground. a. Start the engine Push 3 times the primer bulb Pull the drive lever bar the operation control bar (control lever) in the direction of the handle and hold it. Pull the starter rope. - Page 12 Cleaning and general maintenance task Carefully clean the machines with water after each cut; remove the grass debris and mud accumulated inside the chassis to avoid their drying and thus making the next start-up difficult The paintwork on the inside of the chassis may peel off in time due to the abrasive action of the cut grass; in this case, intervene promptly by touching up the paintwork using a rustproof paint to prevent the formation of rust that would lead to corrosion of the metal.
-
Page 13: Draining The Fuel Tank And Carburetor
Air Filter Unclip the air filter cover and remove the sponge filter element. To avoid objects falling into the air intake, replace the air filter cover. DRAINING THE FUEL TANK AND CARBURETOR 1. Place an approved gasoline container below the carburetor, and use a funnel to avoid spilling fuel. -
Page 14: Maintenance Schedule
MAINTENANCE SCHEDULE After 8 h After 50 h Once a Before After After5 h SERVICE year Mowing check and tighten nuts, bolts and screws Check the oil / fuel level and refill oil / fuel if necessary Clean control elements / area ... -
Page 15: Declaration Of Conformity
BUILDER SAS 32, rue Aristide Bergès -Z1 31270 Cugnaux - France Tel. +33 (0) 5.34.502.502 Fax: +33 (0) 5.34.502.503 Declares that the machine named below PETROL LAWNMOWER HTD513R-1 Serial number: 20210111521-20210111891 Complies with the following European Directives: Machinery Directive 2006/42/EC EMC Directive 2014/30/EU Emission directive (EU) 2016/1628 &... -
Page 16: Warranty
WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 17: Product Failure
PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 18: Warranty Exclusions
WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
