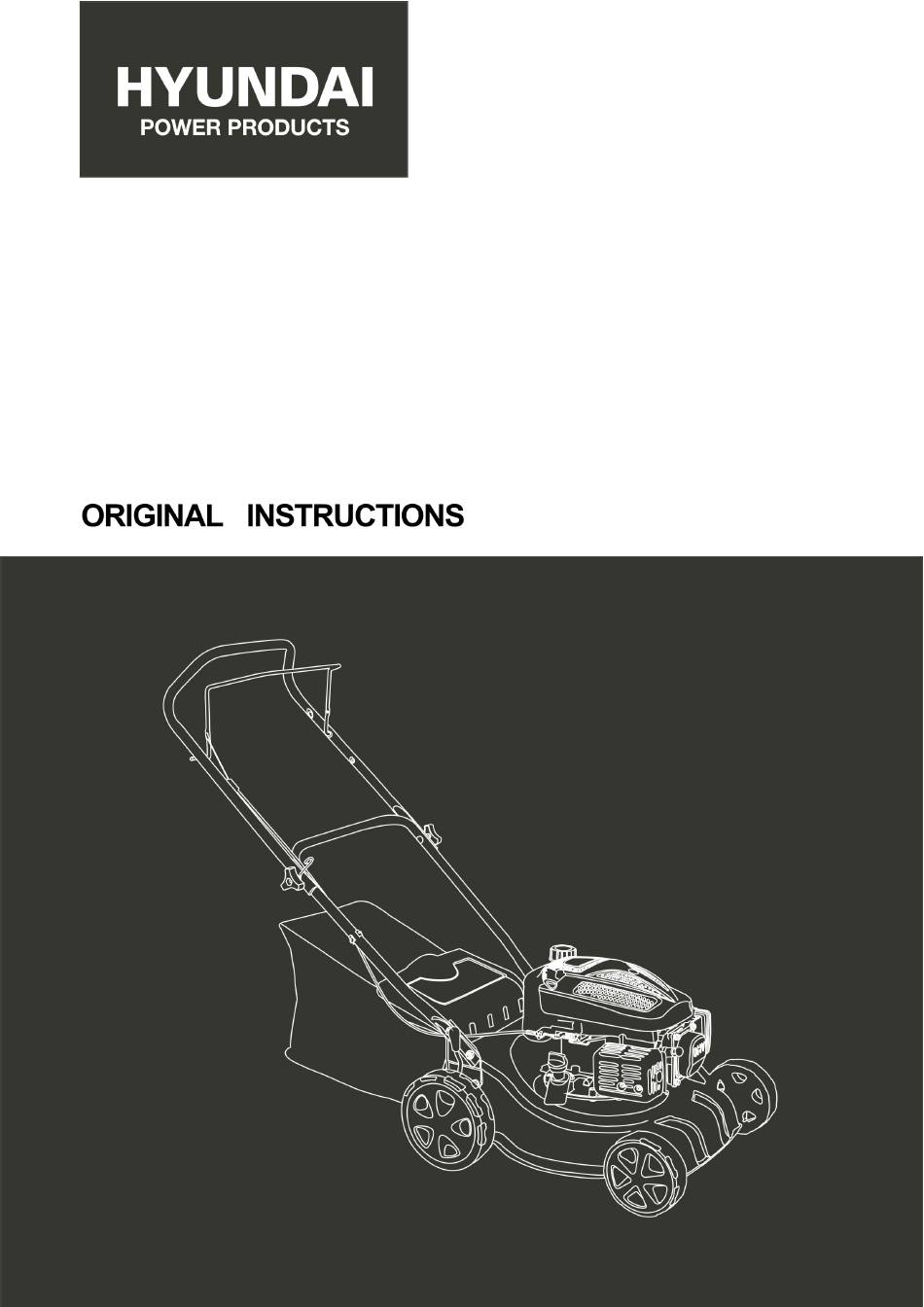

PETROL LAWN MOVER
HTDT4001T
1
WARNING: Read thoroughly the instruction manual before use

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HTDT4001T and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hyundai power products HTDT4001T

Summary of Contents for Hyundai power products HTDT4001T

  • Page 1 PETROL LAWN MOVER HTDT4001T WARNING: Read thoroughly the instruction manual before use...

  • Page 2: General Safety Rules

    GENERAL SAFETY RULES Instructions Read the instructions carefully. Be familiar with the controls and proper use of the  equipment.  Never allow children to use this mower. If the mower is given to an other people, also give this manual. Also make sure that this person uses this device only after receiving the necessary instructions.
  • Page 3 or collection bins, which are not in place.  Do not change the motor configuration or increase the speed. For starting, disengage all blades, the gears must be in neutral, the traction control lever  must be released. Set foot well away from the blades. ...
  • Page 4  While the engine is running, never put your hands or feet under the mower or under the grass ejection area. Before mowing, remove all foreign objects from the grass that can be propelled by the  machine.  Keep children and pets at a safe distance while using the mower. Never lift the mower when the engine starts.
  • Page 5 Do not smoke. Never refuel inside a room. Never store the tool and the fuel tank indoors where there is a naked flame, such as near a water heater. If fuel has spilled, do not attempt to start the machine, but move it away from the spill before starting to use it.
  • Page 6 Regular maintenance is essential for safety and performance. Never store the equipment with fuel in the tank inside a building where fumes can reach an open flame, a spark or a source of extreme heat. Allow the engine to cool before storing in any enclosure. To reduce the fire hazard, keep the engine;...
  • Page 7 Symbols Unplug the spark plug before maintenance and reapir. Read Read operator’s manual. the instruction manual. Danger of burns! Caution – hot surface Keep bystanders away. Wait until machine components have completely stopped before touching them. Pay more attention to the The blades continue to rotate after the operator’s hands and feet to avoid injured.
  • Page 8 DESCRIPTION 1. Upper handle 9. Deflector 2. Lower handle 10.N/A 3. Engine control bar 11.Recoil starter 4. Choke 12.Nut knobs 5. Engine 13.Height adjustment lever 6. Metal deck 14.Wheels 7. Grass catcher 8. N/A...
  • Page 9 Assembly Unpacking Remove all packing materials. Remove remaining packaging and transit supports (if existing). Check the completeness of the packing content. Check the appliance, all accessories for transportation damages. Keep the packing materials as long as possible till the end of the warranty period. Dispose it into your local waste disposal system afterwards.

  • Page 10: Before Operation

    Introduce the rope of the recoil starter (11) on its support guide rope. Grass Bag Assembly · Put the metallic frame (a) inside the grass catcher (7). · Fix the grass catcher (7) on the metallic frame (a). · Pull up the deflector (9) and place the grass catcher (7) at its place. Before Operation Engine Oil The mower is shipped without oil in the engine.
  • Page 11 dipstick). Do not overfill. Replace the oil tank plug / dipstick FUEL NOTICE: Engine delivered without gasoline; refuel 0.6 litre of before starting the engine. Remove the filler cap.  Add fuel to the bottom of the fuel level limit in the neck of the fuel tank. Do not overfill. ...

  • Page 12: Cutting Height Adjustment

    Gasoline is extremely flammable, and gasoline vapour can explode, causing serious injury or death. Use extreme care when handling gasoline. Keep out of reach of children. Refuel in a well-ventilated area with the engine stopped. Do not smoke or allow flames or sparks in the area where the engine is refuelled or where gasoline is stored.

  • Page 13: Maintenance

    The blade will continue to rotate for a few seconds after the engine has stopped. Disconnect the spark plug cap if the lawnmower is to be left unattended. Maintenance IMPORTANT Regular, careful maintenance is essential for keeping the safety level and original performance of the machine unchanged in time. Lack of maintenance or improper maintenance can quickly damage the machine and give poor work results.
  • Page 14 Blade Inspection Tilt the mower to the right, so the air cleaner side is up. This will help to prevent fuel  leakage and hard starting. Inspect the blade for damage, cracks and excessive rust or corrosion.  A dull blade can be sharpened, but a blade that is excessively worn, bent, cracked, or otherwise damaged must be replaced.

  • Page 15: Grass Bag Cleaning And Replacement

    Tighten the blade bolt with a torque wrench. Use a wooden block to prevent the blade  from turning when tightening the bolt. BLADE ADAPTOR BLADE BOLT WASHER Grass Bag cleaning and replacement Cleaning Wash the bag with a garden hose, and allow it to dry completely before use; a wet bag will clog quickly.

  • Page 16: Engine Maintenance

    Engine Maintenance Change Engine Oil Drain the used oil while the engine is warm. Warm oil drains quickly and completely. Wipe the oil filler area clean, and then remove the oil filler cap/dipstick.  Place a suitable container next to the mower to catch the used oil, and then tilt the ...
  • Page 17 Spark Plug Service For good performance, the spark plug must be properly gapped and free of deposits. Disconnect the spark plug cap and remove any dirt from around the spark plug area.  Remove the spark plug with a spark plug wrench. ...
  • Page 18 Maintenance Schedule REGULAR SERVICE Every PERIOD(4) First Every 3 Every 6 Every Before ITEM Month Months Months Year Each Years Perform at every indicated month or operating hour or 250 5 Hrs. 25 Hrs. 50 Hrs. 100 Hrs. interval, whichever comes Hrs.

  • Page 19: Troubleshooting

    Trouble Shooting ENGINE WILL NOT START Possible Cause Correction Out of fuel. Refuel Bad fuel; engine stored Drain the fuel tank and 1. Check fuel. without treating or draining carburettor. Refuel with fresh gasoline, of refuelled with gasoline. bad gasoline Spark plug faulty, fouled, or Replace the spark plug.
  • Page 20 Storage The same petrol must not remain in the tank for more than one month.  Thoroughly clean the mower and store it indoors in a dry place.  Never store the lawnmower with fuel in the tank inside a building where can ...

  • Page 21: Technical Data

    TECHNICAL DATA HTDT4001P Model Weight Cutting width 25-65 Cutting height setting 200/150 Rear/front wheel diameter Grass bag capacity Engine DY1P56F Model ENGINE Type OHV, 4-stroke engine Displacement Max. 1.8 Nominal power Speed /min Max.2850 Spark Ignition F7RTC Spark Plug 0.7-0.8 mm Electrode gap 95/98 oct unleaded Recommended fuel...
  • Page 22 Declaration of Conformity EU BUILDER SAS 32, rue Aristide Bergès -Z1 31270 Cugnaux - France Tel. +33 (0) 5.34.502.502 Fax: +33 (0) 5.34.502.503 Declares that the machine named below GASOLINE LAWNMOWER HTDT4001P Serial number: 2021050003573~2021050003752 Complies with the following European Directives: Machinery Directive 2006/42/EC EMC Directive 2014/30/EU Emission directive 97/68/EC &2004/26/EU...

  • Page 23: Warranty

    WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor.

  • Page 24: Product Failure

    PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine.

  • Page 25: Warranty Exclusions

    WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
