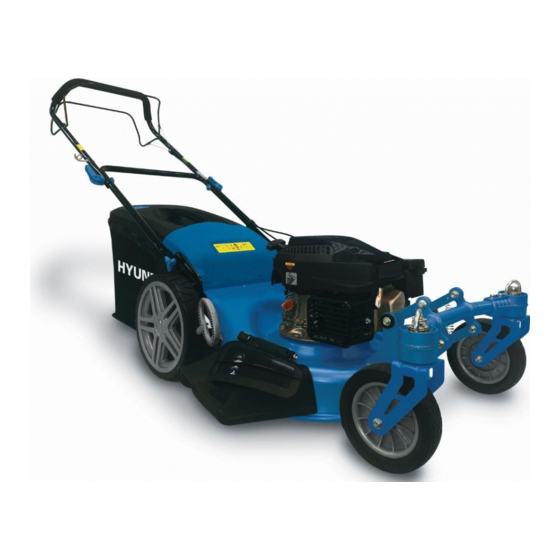

Hyundai power products HTDT512RP Original Instructions Manual

Gasoline
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Read the instruction manual carefully before using the mower!
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HTDT512RP and is the answer not in the manual?

Questions and answers

Related Manuals for Hyundai power products HTDT512RP

Summary of Contents for Hyundai power products HTDT512RP

  • Page 1 Read the instruction manual carefully before using the mower!

  • Page 2: Safety Instructions

    1. SAFETY INSTRUCTIONS Instructions  Read the instructions carefully. Be familiar with the controls and proper use of the equipment.  Never allow children to use this mower. If the mower is given to an other people, also give this manual. Also make sure that this person uses this device only after receiving the necessary instructions.
  • Page 3  Stop the engine immediately: o Every time you leave the tool alone and the working area o Before refuelling.  When the tool is stopped, park it in a safe place.  Move slowly when moving.  The lawnmower should not be used in slopes and near drop-offs, ditches or embankments; if the tool must be used in these kinds of emplacements, take an extreme precaution and operate carefully the tool.
  • Page 4 stop and wear protective gloves. Fuel Handling Use caution when handling fuels. They are flammable and the vapours are explosive. Use only an approved container. Never remove the fuel cap or add fuel while the machine is on. Turn off the unit and allow the engine and exhaust components to cool down before refuelling.

  • Page 5: Intended Use

    Stop the machine before removing any foreign objects from the working area. Never mow while people, especially children, or animals are nearby. Guarantee sound power level 2. Intended use This device is only for lawn mowing grass in the domestic area. The device is designed for domestic use. It is not intended for continuous professional use.

  • Page 6: Technical Data

    4. Technical data Model HTDT512RP Engine displacement 170.1 cm³ Power 2.5 kW Engine speed 2900/min Cutting width 51 cm Adjustable cutting height 6 positions Grass collection capacities weight 34kg Guaranteed Sound Power Level 98dB Sound pressure level (LpA) 85,5 dB (A); K...
  • Page 7 Instruction for grass bag assembly Before using the grass catcher, the side discharge must be removed. If the grass bag is delivered unassembled: Pull plastic loops over basket rods. Open the flap then Install the grass catcher on the hook on the rear of the tool. Release the flap. Disassemble the grass catcher Lift the flap and remove the grass catcher.

  • Page 8: Filling Fuel Tank

    6. FILLING FUEL TANK a. Filling tank WARNING! Gasoline is extremely flammable. Store fuel in specially designed cans for this purpose. Fill the fuel tank only outdoors and before starting the engine. Do not smoke when filling the fuel tank or handling fuel.

  • Page 9: Operation

    7. OPERATION Start the device on a safe and flat ground, preferably not in tall grass. Make sure that the cutting tools do not touch objects or the ground. a. Start the engine Push 3 times the primer bulb. Pull the drive lever bar the operation control bar (control lever) in the direction of the handle and hold it. Pull the starter rope.

  • Page 10: Maintenance And Storage

    8. MAINTENANCE AND STORAGE Carry out maintenance and cleaning work when the engine is off and the spark plug are out. Risk of injury! Allow the tool to cool down before performing any maintenance or cleaning work. The engine elements are hot. Risk of burns! Lack and improper maintenance will reduce the lifetime of the tool and can bring accidents.

  • Page 11: Maintenance Schedule

    9. MAINTENANCE SCHEDULE After 5 h After 8 h After 50 h Once a Before After SERVICE year Mowing check and tighten nuts, bolts and screws  Check the oil / fuel level and refill oil / fuel if  ...

  • Page 12: Declaration Of Conformity

    ZI, 32 rue Aristide Bergès – 31270 Cugnaux - France Tel: +33 (0)5.34.502.502 Fax: +33 (0)5.34.502.503 Declares that the machines: LAWN MOWER PETROL Model: HTDT512RP Serial No.: 20210104187-20210104436/ 20210106325-20210106444 The people name holding the technical file：Mr. Olivier Patriarca Have been designed in compliance with the following standards:...

  • Page 13: Warranty

    11. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor.

  • Page 14: Product Failure

    12. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine.

  • Page 15: Warranty Exclusions

    13. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
