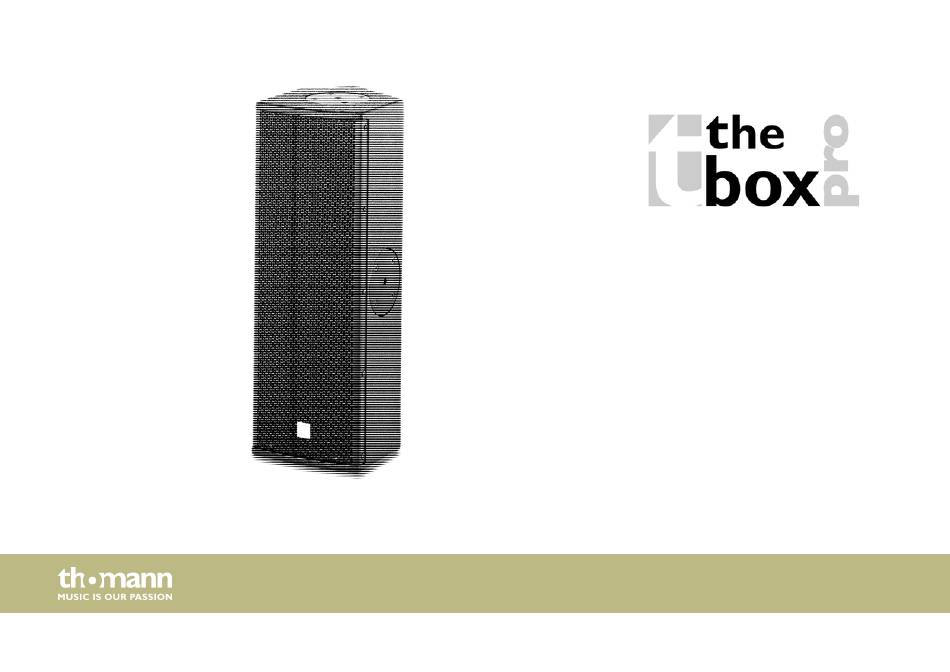

- Page 1 Achat 206 passive speaker user manual...
- Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 29.10.2019, ID: 277960, 277958 (V3)
-
Page 3: Table Of Contents
Table of contents Table of contents General information..........................4 1.1 Further information........................... 5 1.2 Symbols and signal words....................... 6 Safety instructions............................. 8 Features............................... 11 Installation..............................12 4.1 Tips on handling speakers......................13 4.2 Installation............................14 4.3 Connections............................18 Technical specifications........................20 Plug and connection assignment.................... -
Page 4: General Information
Our products and user manuals are subject to a process of continuous development. We there‐ fore reserve the right to make changes without notice. Please refer to the latest version of the user manual which is ready for download under www.thomann.de. passive speaker... -
Page 5: Further Information
General information 1.1 Further information On our website (www.thomann.de) you will find lots of further information and details on the following points: Download This manual is also available as PDF file for you to download. Use the search function in the electronic version to find the topics of Keyword search interest for you quickly. -
Page 6: Symbols And Signal Words
General information 1.2 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this manual. Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. - Page 7 General information Warning signs Type of danger Warning – high-voltage. Warning – suspended load. Warning – danger zone. Achat 206...
-
Page 8: Safety Instructions
Safety instructions Safety instructions Intended use This device is designed for sound reinforcement. Use the device only as described in this user manual. Any other use or use under other operating conditions is considered to be improper and may result in personal injury or property damage. No liability will be assumed for damages resulting from improper use. - Page 9 Safety instructions WARNING! Consequences of faulty mounting Faulty mounting may lead to lethal injuries or property damage. Please ensure that the norms and regulations valid in your country are always observed when mounting and operating your product. In Germany: BGV C1, “Event and Production Sites for Stage Presentations”.
- Page 10 Safety instructions NOTICE! Operating conditions This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and strong vibrations. passive speaker...
-
Page 11: Features
Features Features Special features of this powerful and compact full-range speaker: 2 × 6" woofer, 1" compression tweeter Connection options: 2 lockable NL4 sockets (1+/1–), screw terminals M10 rigging points Speaker stand flange Optional horizontal and vertical brackets available: – the box pro 206 U bracket vertical black (item no. -
Page 12: Installation
Installation Installation Unpack and check carefully there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the product against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively. -
Page 13: Tips On Handling Speakers
Installation 4.1 Tips on handling speakers We recommend you to set up the speakers in a way, that the sound signals can reach the audi‐ ence unobstructedly. It will often be helpful to mount the speakers on tripods. Thus, the sound will be evenly spread with maximum range throughout the audience area. -
Page 14: Installation
Installation 4.2 Installation WARNING! Consequences of faulty mounting Faulty mounting may lead to lethal injuries or property damage. Please ensure that the norms and regulations valid in your country are always observed when mounting and operating your product. In Germany: BGV C1, “Event and Production Sites for Stage Presentations”. - Page 15 Installation NOTICE! Possible staining The plasticiser contained in the rubber feet of this product may possibly react with the coating of your parquet, linoleum, laminate or PVC floor and after some time cause permanent dark stains. In case of doubt, do not put the rubber feet directly on the floor, but use felt-pad floor protectors or a carpet.
- Page 16 Installation Standing mounting NOTICE! Use of stands When mounting the device onto a stand, ensure that the stand is in a safe and stable position and that the weight of the device does not exceed the maximum permissible load capacity of the stand. We recommend that the speaker be set up so that the lower edge is located 185 cm above the floor.
- Page 17 Installation Suspended mounting The optionally available vertical and horizontal mounting brackets (U brackets) allow you to attach the speaker stably and securely to the wall, ceiling or half coupler and thus to trusses. WARNING! Risk of injury caused by falling objects Portable PA systems should be secured from falling using two independently working devices, for example, safety ropes.
-
Page 18: Connections
Installation 4.3 Connections Installation methods passive speaker... - Page 19 Installation 1, 2 NL4 connections wired in parallel 3 Screw terminals (2 × 2-pin) with cover for contact protection Achat 206...
-
Page 20: Technical Specifications
Technical specifications Technical specifications the box pro Achat 206 the box pro Achat 206 WH (item no. 277560) (item no. 277958) System 2-way full-range box with built-in crossover Speaker 2 × 6" woofer, 1" compression tweeter Input connections 1 × lockable NL4 socket (1+/1–) (Speaker Twist) Screw terminals (2 ×2-pin) with cover for contact protection... - Page 21 Technical specifications Dispersion angle (H × V) 90° × 90° Dimensions (W × H × D) 200 mm × 570 mm × 220 mm Weight 12 kg Surface black textured paint white textured paint Achat 206...
- Page 22 Technical specifications Frequency response passive speaker...
- Page 23 Technical specifications Achat 206...
- Page 24 Technical specifications Further information Cover Optionally available (item no. 385906) Construction Column Monitor wedge Weatherproof Housing Wood Tripod flange 36 mm Truss-capable Yes, M10 passive speaker...
-
Page 25: Plug And Connection Assignment
Plug and connection assignment Plug and connection assignment Introduction This chapter will help you select the right cables and plugs to connect your valuable equip‐ ment in such a way that a perfect sound experience is ensured. Please note these advices, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into the socket, an incorrect connection may result in a destroyed power amp, a short circuit or ‘just’... -
Page 26: Protecting The Environment
Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling. - Page 28 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
