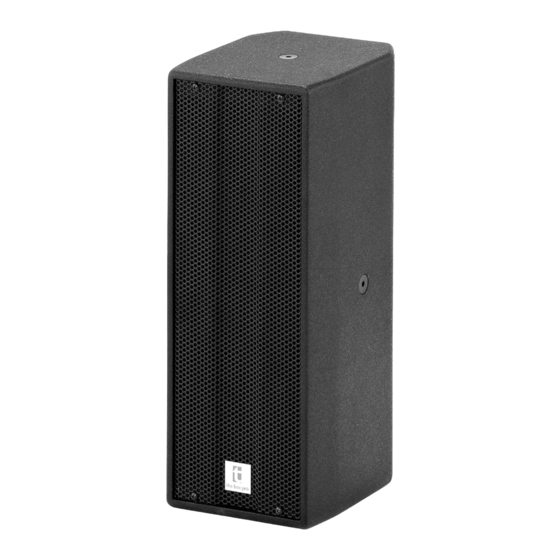

Summary of Contents for thomann The Box Pro Achat 204
- Page 1 Achat 204 full-range speaker user manual...
- Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 28.08.2015, ID: 266718...
-
Page 3: Table Of Contents
Table of contents Table of contents General notes............................... 4 Safety................................7 Features................................9 Installation..............................10 4.1 Tips on handling speakers......................13 4.2 Mounting bracket..........................14 4.3 Connections............................15 Technical specifications........................16 Protecting the environment......................17 Achat 204... -
Page 4: General Notes
General notes General notes This user manual contains important information on safe operation of the device. Read and follow all safety notes and all instructions. Save this manual for future reference. Make sure that it is available to all persons using this device. If you sell the device to other users, be sure that they also receive this manual. - Page 5 General notes Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. WARNING! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in death or serious injury if it is not avoided.
- Page 6 General notes Warning signs Type of danger Warning – suspended load. Warning – danger zone. full-range speaker...
-
Page 7: Safety
Safety Safety Intended use This device is intended to be used in a sound reinforcement system. Use the device only as described in this user manual. Any other use or use under other operating conditions is consid‐ ered to be improper and may result in personal injury or property damage. No liability will be assumed for damages resulting from improper use. - Page 8 Safety CAUTION! Possible hearing damage The device can produce volume levels that may cause temporary or permanent hearing impairment. Over an extended period of time, even levels that seem to be uncritical can cause hearing damage. Decrease the volume level immediately if you experience ringing in your ears or hearing impairment.
-
Page 9: Features
Features Features Special features of the device: Connectivity: 2 × NL4, screw terminals Black textured coating 3/8" tripod thread on the bottom Achat 204... -
Page 10: Installation
Installation Installation Unpack and carefully check that there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the device against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively. - Page 11 Installation WARNING! Risk of injury caused by falling objects Make sure that the installation complies with the standards and rules that apply in your country. Always secure the device with a secondary safety attachment, such as a safety cable or a safety chain. NOTICE! Possible property damage by magnetic fields Loudspeakers produce a static magnetic field.
- Page 12 Installation NOTICE! Use of stands When mounting the device onto a stand, ensure that the stand is in a safe and stable position and that the weight of the device does not exceed the maximum permissible load capacity of the stand. full-range speaker...
-
Page 13: Tips On Handling Speakers
Installation 4.1 Tips on handling speakers We recommend you to set up the speakers in a way, that the sound signals can reach the audi‐ ence unobstructedly. It will often be helpful to mount the speakers on tripods. Thus, the sound will be evenly spread with maximum range throughout the audience area. -
Page 14: Mounting Bracket
Installation 4.2 Mounting bracket Using the optional mounting brackets (U brackets) for vertical and horizontal mounting, the speaker can stably and securely mounted to the wall, the ceiling or a pipe clamp (half coupler), and, thus, secured to trusses. full-range speaker... -
Page 15: Connections
Installation 4.3 Connections 1, 2 NL4 connections, wired in parallel 3 Screw terminals (2 × 2-pin) with cover for contact protection Achat 204... -
Page 16: Technical Specifications
Technical specifications Technical specifications 2 × 4" woofer, 1" dome tweeter Speakers Power handling 80 W (RMS), 320 W (peak) 4 Ω Impedance Maximum SPL 112 dB 80 Hz … 20 kHz Frequency response 90° × 90° Dispersion Dimensions (W × D × H) 144 mm ×... -
Page 17: Protecting The Environment
Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling. - Page 18 Notes full-range speaker...
- Page 20 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
