Summary of Contents for Xiaomi E5

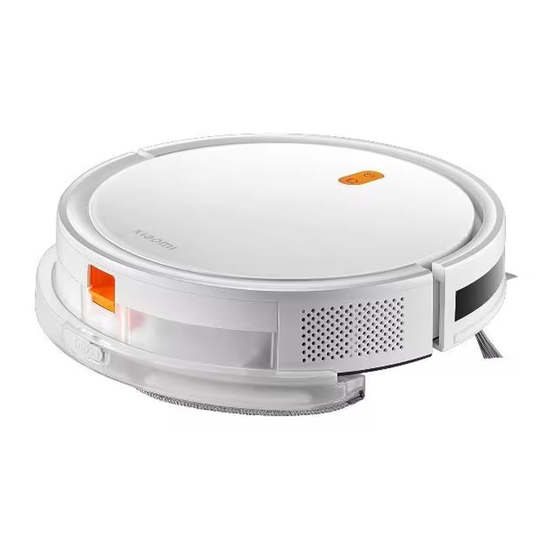

- Page 1 Robot Vacuum E5 User Manual...
-
Page 2: Safety Instructions
Safety Instructions Read this manual carefully before use, and retain it for future reference. This product is for floor cleaning in a home environment only. Do not use it outdoors, on non-floor surfaces, or in a commercial or industrial setting. Usage Restrictions •... - Page 3 • This robot vacuum is only intended to clean floors in a home environment. Do not use it outdoors such as on an open balcony or on a surface that is not a floor, like a sofa, or in a commercial or industrial setting. • Do not use the robot vacuum in an area suspended above ground level, such as a loft, open balcony, or on top of furniture, unless a protective barrier is present. • Do not use the robot vacuum at an ambient temperature above 35°C or below 0°C or on a floor with liquids or sticky substances. • Pick up any cables from the floor before using the robot vacuum to prevent it from dragging them while cleaning. A hazard may occur if the appliance runs over the supply cord. • Pick up any fragile or loose items from the floor, such as vases or plastic bags, to prevent the robot vacuum from being obstructed or bumping into them and causing damage. • Do not place children, pets, or any item on top of the robot vacuum while it is stationary or moving. • Do not use the mopping function on the carpet. The carpet can be cleaned under the vacuuming mode.
-
Page 4: Batteries And Charging
• Do not spray any liquid into the robot vacuum . • Make sure the dust compartment is thoroughly dry before its reinstalling. • Do not place the robot vacuum upside down. • Only use this product as directed in the user manual. Users are responsible for any loss or damage arising from improper use of this product. • For detailed e-manual, please go to www.mi.com/global/service/userguide Batteries and Charging • WARNING: Only use the supply unit provided with this appliance. • WARNING: For the purposes of recharging the battery, only use the detachable supply unit provided with this appliance. - Page 5 • Do not place the charging dock near a heat source. • Do not use a wet cloth or wet hands to wipe or clean the dock's charging contacts. • If the robot vacuum will not be used for an extended period, fully charge it, then turn it off and store in a cool, dry place. Recharge the robot vacuum at least once every 3 months to avoid over-discharging the battery. • The lithium-ion battery pack contains substances that are hazardous to the environment. Before disposing of the robot vacuum, please first remove the battery pack, then discard, or recycle it in accordance with local laws and regulations of the country or region it is used in. • The battery must be removed from the appliance before it is scrapped. • The appliance must be disconnected from the supply mains when removing the battery.
- Page 6 • When removing the batteries from the product, it is better to use up the batteries and make sure your product is disconnected from power. 1). Uninstall the screw on the bottom, then remove the cover. 2). Unplug the battery connector, then remove the batteries. Do not damage the battery case to avoid any risk of injuries. 3). Return the batteries to a professional recycling organization.
-
Page 7: Product Overview
Product Overview Charging Dock Cliff Sensor Charging Contacts Button/Indicator Battery Pack Suction Inlet Left Wheel/Right Wheel Mop Pad Assembly Water Tank Dust Compartment & Water Tank Edge Sensor Filter Cover Dust Compartment Release Button Collision Sensor Infrared Plug Obstacle Sensor Water Tank Indicator Status Descriptions Turned on/Working normally/Charging completed/Standby... -
Page 8: Before Use
* The app is referred to as Xiaomi Home app in Europe (except for Russia). The name of the app displayed on your device should be taken as the default. Note: •... -
Page 9: How To Use
How to Use Start Vacuuming & Mopping 1. Take out the water tank. Open the plug, and fill the tank up with 3. Press the button to vacuum and mop after completing the clean water. Then insert the plug back. installation. - Page 10 Pausing Docking & Charging When the robot vacuum is running, press any button to pause. Press the When the robot vacuum is working, press the button to pause the task, button to resume cleaning. and press the button again to send the robot vacuum to return to the dock to charge.
-
Page 11: Care And Maintenance
Care & Maintenance Side Brush 1. Use a screwdriver to remove the side brushes. 2. Use a cleaning brush to clean the side brushes. Side Brush Side Brush Cut the hair Remove dirt and debris Notes: • Please refer to the details on the label of the water tank and dust compartment for regular Components Maintenance Frequency Replacement Frequency... -
Page 12: Specifications
Specifications Robot Vacuum Power Adapter Name Robotic Vacuum Cleaner Information Published Value and Precision Unit Model C108 Dongguan AOYUAN Manufacturer Electronics Technology Rated Voltage 14.4 V Co., Ltd. Rated Power 25 W Model Identifier AY24CA-AF2000602-EU Charging Voltage 20 V Input Voltage 100–240 φ... -
Page 13: Regulatory Compliance Information
2. REMEDIES If a hardware defect is found and a valid claim is received by Xiaomi within the Warranty Period, Xiaomi will either (1) repair the product at no charge, (2) replace the product, or (3) refund the Product, excluding potential shipping costs. - Page 14 6. DAMAGE LIMITATION Unless otherwise stipulated by Xiaomi, this Limited Warranty applies only to the Except to the extent prohibited by applicable law, Xiaomi shall not be liable for any Product manufactured by or for Xiaomi and identifiable by the trademarks, trade damages caused by accidents, indirect, special or consequential damages, name or "Xiaomi"...
- Page 15 Manufactured for: Xiaomi Communications Co., Ltd. Manufactured by: Shenzhen Silver Star Intelligent Group Co., Ltd. (a Mi Ecosystem company) Address: Room 1701, Silver Star Building No.2, No.1301-72, Guanguang Road, Guanlan Street, Longhua District, Shenzhen, Guangdong, China For further information, please go to www.mi.com For further details, please scan the QR code to obtain the e-manual.
