4.6

Plumbing manifold

4.6.1

Connections

Heating System
Gas
Use the fittings supplied in the Hardware literature pack.
1 2

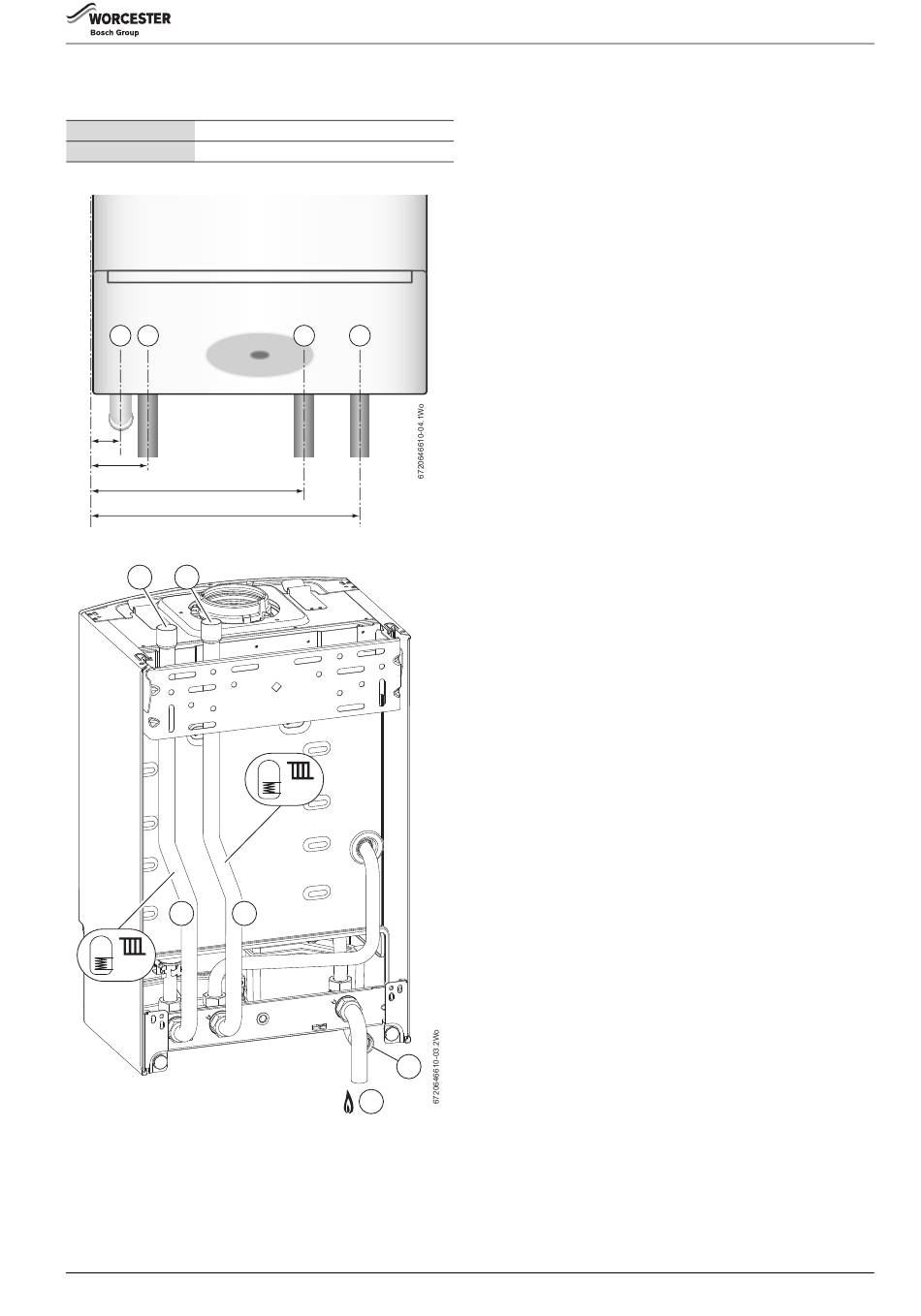

Fig. 13 Pipe dimensions
4 3
4 3
Fig. 14 Plumbing manifold
Key to figures 13 & 14:
[1] Condensate 22mmØ - Distance to left edge of case = 33mm
[2] Gas 22mmØ - Distance to left edge of case = 65mm
[3] Primary flow 22mmØ - Distance to left edge of case = 247mm
[4] Primary return 22mmØ - Distance to left edge of case = 312mm
Greenstar Ri Compact ErP 6720813282 (2014/09)
22mm compression fittings
22mm compression fitting
3 4
1
2
