Bosch Worcester 24CDi Fitting Instructions

FITTING INSTRUCTIONS

NEW PLASTIC FLOW MANIFOLD

24CDi RANGE, 28CDi, 35CDi II, 26CDi EXTRA

THESE FITTING INSTRUCTIONS SHOULD BE USED IN CONJUNCTION WITH THE
INSTALLATION AND SERVICE MANUAL PROVIDED WITH THIS APPLIANCE
ONLY COMPETENT PERSONNEL SHOULD ATTEMPT INSTALLATION

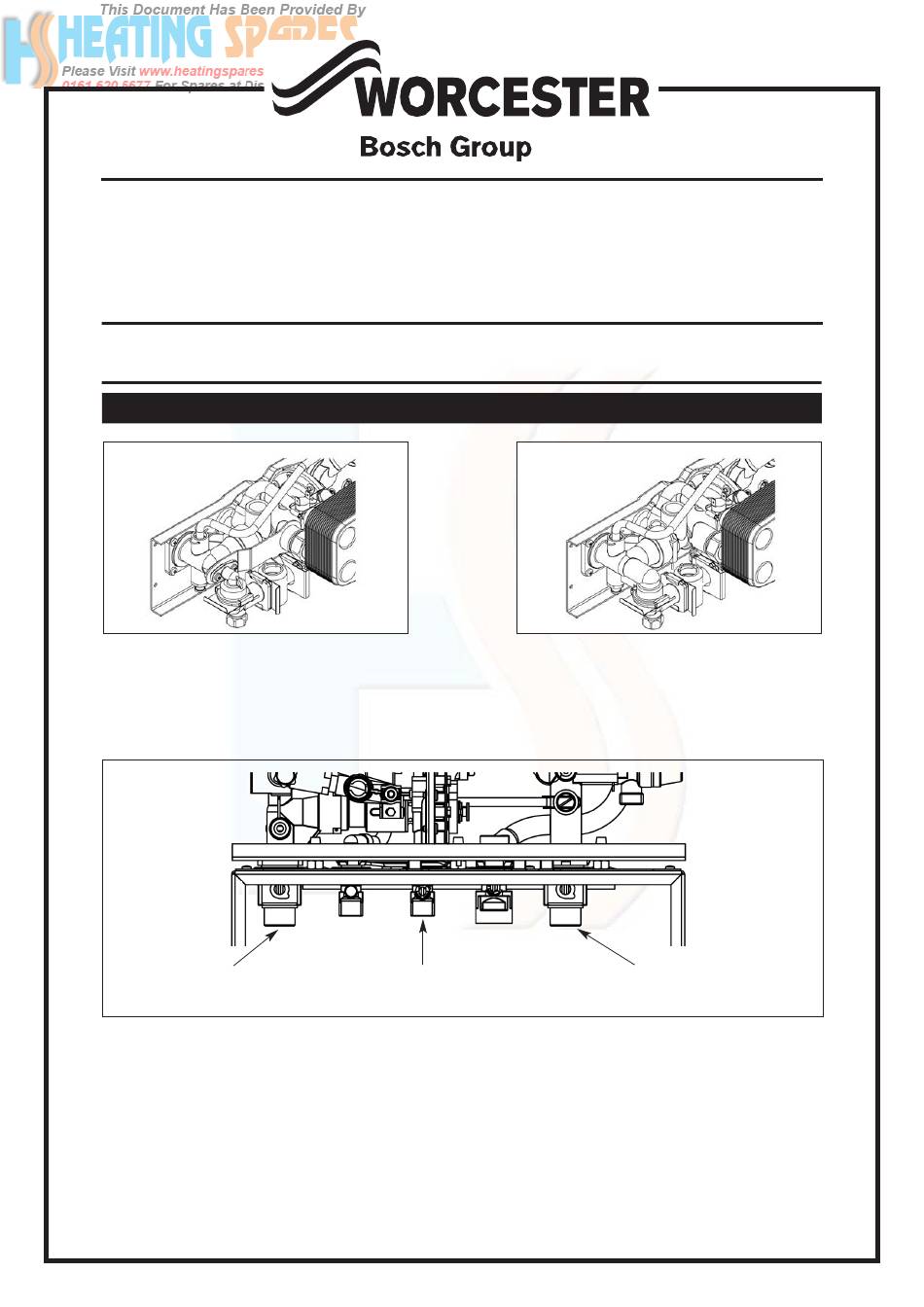

1. 2.
EXISTING TYPE NEW TYPE
Before carrying out any work on the appliance ensure that the electricity supply is turned off.
1. Turn off the cold water inlet valve and open a hot water tap to drain the domestic hot water circuit. Turn off the
central heating flow and return valves and drain the appliance.
3.
Central Heating Flow Valve Cold Water Inlet Valve Central Heating Return Valve
2. Refer to the Installation and Servicing Instructions — Replacement of Parts Section: Water Diverting Valve.
3. Remove the diverter valve and flow manifold from the appliance and remove the existing plastic flow manifold
from the diverter valve assembly (See Installation and Servicing Instructions — Replacement of Parts and figure 4
overleaf) .
4. Remove the retaining clip from the plastic elbow connected to the filling loop assembly and discard the elbow (See
figure 4 overleaf).
5. Assemble the filling loop assembly to the new plastic manifold (See figure 4 overleaf). A small amount of silicone
grease can be applied to the O-ring to help assembly Secure with existing clip.
Continued overleaf
