TPA3113D2 6-W Filter-Free Stereo Class-D Audio Power Amplifier With SpeakerGuard™
1 Features
•
6-W/ch into an 8-Ω Loads at 10% THD+N From a
1
10-V Supply
•
12-W into a 4-Ω Mono Load at 10% THD+N From
a 10-V Supply
•
87% Efficient Class-D Operation Eliminates Need
for Heat Sinks
•
Wide Supply Voltage Range Allows Operation
from 8 V to 26 V
•
Filter-Free Operation
•
SpeakerGuard™ Speaker Protection Includes
Adjustable Power Limiter Plus DC Protection
•
Flow-Through Pinout Facilitates Easy Board
Layout
•
Robust Pin-to-Pin Short-Circuit Protection and
Thermal Protection With Auto Recovery Option
•
Excellent THD+N and Pop-Free Performance
•
Four Selectable, Fixed Gain Settings
•
Differential Inputs
2 Applications
•
Televisions
•
Consumer Audio Equipment
•
Monitors
Audio
Source
1
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. PRODUCTION DATA.
Sample &
Product
Buy
Folder

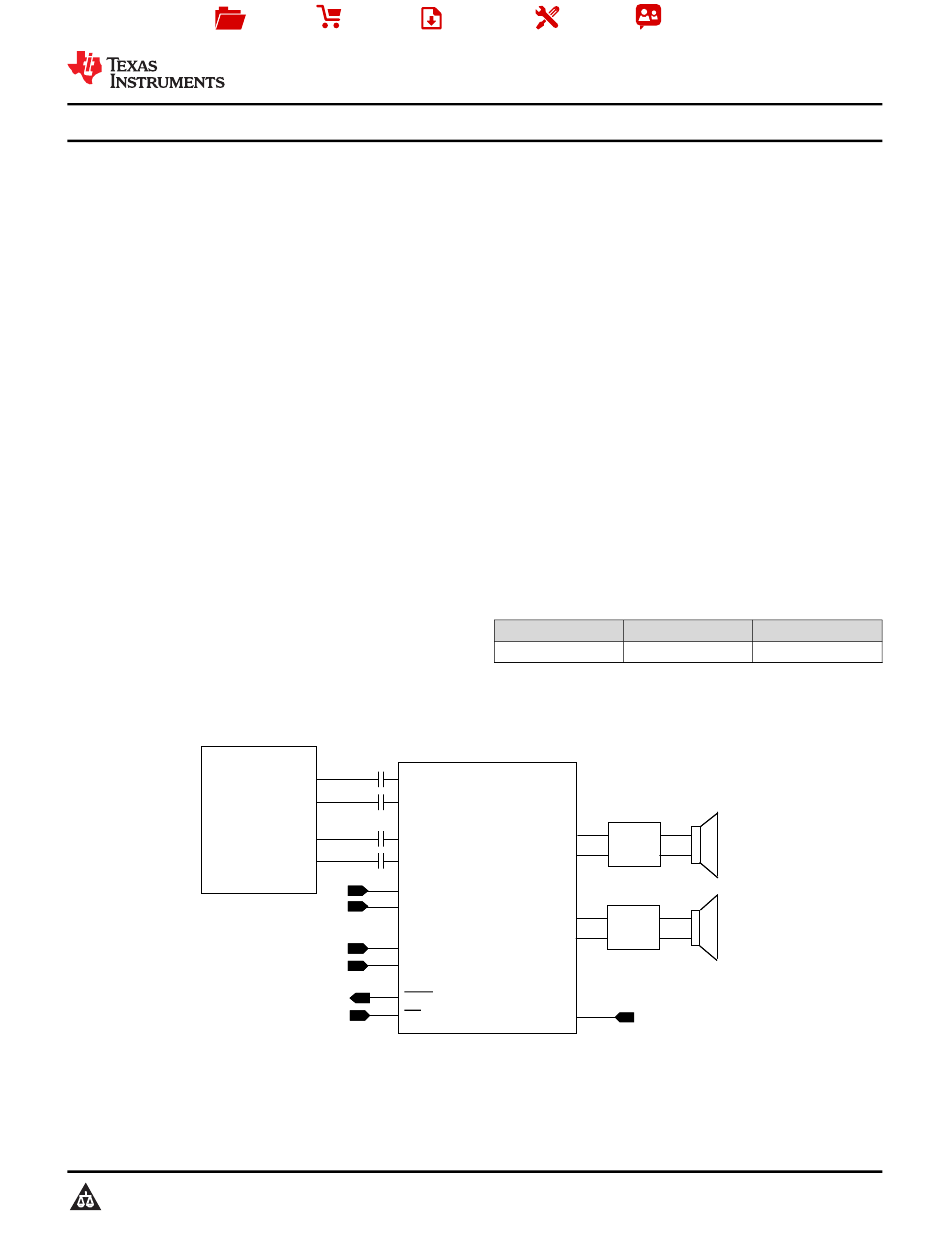

TPA3113D2 Simplified Application Schematic
1 F
m
OUTL+
LINP
OUTL-
LINN
OUTR+
RINP
OUTR-
RINN
GAIN0
GAIN1
PLIMIT
PBTL
Fault
Fault
SD
SD
Tools &
Technical
Software
Documents
SLOS650F – AUGUST 2009 – REVISED JUNE 2016
3 Description
The TPA3113D2 is a 6-W (per channel) efficient,
Class-D audio power amplifier for driving bridged-tied
stereo
speakers.
Technology enables the use of inexpensive ferrite
bead filters at the outputs while meeting EMC
requirements. SpeakerGuard™ speaker protection
circuitry includes an adjustable power limiter and a
DC detection circuit. The adjustable power limiter
allows the user to set a virtual voltage rail lower than
the chip supply to limit the amount of current through
the speaker. The DC detect circuit measures the
frequency and amplitude of the PWM signal and
shuts off the output stage if the input capacitors are
damaged or shorts exist on the inputs.
The TPA3113D2 can drive stereo speakers as low as
4 Ω. The high efficiency of the TPA3113D2, 87%,
eliminates the need for an external heat sink when
playing music.
The outputs are also fully protected against shorts to
GND, VCC, and output-to-output. The short-circuit
protection and thermal protection includes an auto-
recovery feature.
Device Information
PART NUMBER
TPA3113D2
(1) For all available packages, see the orderable addendum at
the end of the data sheet.
TPA3113D2
OUTPL
FERRITE
FERRITE
FERRITE
BEAD
BEAD
BEAD
OUTNL
FILTER
FILTER
FILTER
OUTPR
FERRITE
FERRITE
FERRITE
BEAD
BEAD
BEAD
OUTNR
FILTER
FILTER
FILTER
PVCC
Copyright © 2016, Texas Instruments Incorporated
Support &
Community
TPA3113D2
Advanced
EMI
Suppression
(1)
PACKAGE
BODY SIZE (NOM)
TSSOP (28)
9.70 mm × 4.40 mm
6W
8W
6W
8W
8 to 26V
Advertisement
Table of Contents
Related Manuals for Texas Instruments TPA3113D2
Summary of Contents for Texas Instruments TPA3113D2
-
Page 1: Features
Folder Software Documents TPA3113D2 SLOS650F – AUGUST 2009 – REVISED JUNE 2016 TPA3113D2 6-W Filter-Free Stereo Class-D Audio Power Amplifier With SpeakerGuard™ 1 Features 3 Description The TPA3113D2 is a 6-W (per channel) efficient, • 6-W/ch into an 8-Ω Loads at 10% THD+N From a... -
Page 2: Table Of Contents
Figure 38 - Corrected the pin names..................................• Changed the Stereo Class-D Amplifier with PBTL Output and Single-Ended Input Figure 39 - Corrected the pin names. Submit Documentation Feedback Copyright © 2009–2016, Texas Instruments Incorporated Product Folder Links: TPA3113D2... - Page 3 = 5 W (half-power) To: V = 16 V, f = 1 kHz, P = 3 W (half-power) .................................. • Changed multiple graphs in the TYPICAL CHARACTERISTICS................... Submit Documentation Feedback Copyright © 2009–2016, Texas Instruments Incorporated Product Folder Links: TPA3113D2...
-
Page 4: Pin Configuration And Functions
BSPR Bootstrap I/O for right channel, positive high-side FET. OUTPR Class-D H-bridge positive output for right channel. (1) I = Input, O = Output, P = Power Submit Documentation Feedback Copyright © 2009–2016, Texas Instruments Incorporated Product Folder Links: TPA3113D2... -
Page 5: Specifications
(3) The TPA3113D2 incorporates an exposed thermal pad on the underside of the chip. This acts as a heatsink, and it must be connected to a thermally dissipating plane for proper power dissipation. Failure to do so may result in the device going into thermal protection shutdown. -
Page 6: Recommended Operating Conditions
Turnoff time SD = 0.8 V μs GVDD Gate Drive Supply = 100 μA GVDD DC Detect time = 6 V, VRINP = 0 V DCDET (RINN) Submit Documentation Feedback Copyright © 2009–2016, Texas Instruments Incorporated Product Folder Links: TPA3113D2... - Page 7 –100 Maximum output at THD+N < 1%, f = 1 kHz, Signal-to-noise ratio Gain = 20 dB, A-weighted Oscillator frequency Thermal trip point °C Thermal hysteresis °C Submit Documentation Feedback Copyright © 2009–2016, Texas Instruments Incorporated Product Folder Links: TPA3113D2...
-
Page 8: Typical Characteristics
SLOS650F – AUGUST 2009 – REVISED JUNE 2016 www.ti.com 6.9 Typical Characteristics (All Measurements taken at 1 kHz, unless otherwise noted. Measurements were made using the TPA3113D2 EVM which is available at ti.com.) Gain = 20 dB Gain = 20 dB... - Page 9 SLOS650F – AUGUST 2009 – REVISED JUNE 2016 Typical Characteristics (continued) (All Measurements taken at 1 kHz, unless otherwise noted. Measurements were made using the TPA3113D2 EVM which is available at ti.com.) Gain = 20 dB Gain = 20 dB...
- Page 10 TPA3113D2 SLOS650F – AUGUST 2009 – REVISED JUNE 2016 www.ti.com Typical Characteristics (continued) (All Measurements taken at 1 kHz, unless otherwise noted. Measurements were made using the TPA3113D2 EVM which is available at ti.com.) = 12 V Phase −50 = 18 V...
- Page 11 SLOS650F – AUGUST 2009 – REVISED JUNE 2016 Typical Characteristics (continued) (All Measurements taken at 1 kHz, unless otherwise noted. Measurements were made using the TPA3113D2 EVM which is available at ti.com.) Gain = 20 dB + 66 µH...
- Page 12 TPA3113D2 SLOS650F – AUGUST 2009 – REVISED JUNE 2016 www.ti.com Typical Characteristics (continued) (All Measurements taken at 1 kHz, unless otherwise noted. Measurements were made using the TPA3113D2 EVM which is available at ti.com.) = 12 V Phase = 18 V −50...
-
Page 13: Detailed Description
7 Detailed Description 7.1 Overview To facilitate system design, the TPA3113D2 needs only a single power supply between 8 V and 26 V for operation. An internal voltage regulator provides suitable voltage levels for the gate driver, digital and low-voltage analog circuitry. -
Page 14: Feature Description
7.3.1 Gain Setting Through GAIN0 and GAIN1 Inputs The gain of the TPA3113D2 is set by two input terminals, GAIN0 and GAIN1. The voltage slew rate of these gain terminals, along with terminals 1 and 14, must be restricted to no more than 10 V/ms. For higher slew rates, use a 100-kΩ... - Page 15 GAIN0 7.3.2 SD Operation The TPA3113D2 employs a shutdown mode of operation designed to reduce supply current (I ) to the absolute minimum level during periods of non-use for power conservation. The SD input terminal should be held high (see specification table for trip point) during normal operation when the amplifier is in use.
- Page 16 7.3.5 DC Detect TPA3113D2 has circuitry which will protect the speakers from DC current which might occur due to defective capacitors on the input or shorts on the printed-circuit board at the inputs. A DC detect fault is reported on the FAULT pin as a low state.
-
Page 17: Device Functional Modes
SLOS650F – AUGUST 2009 – REVISED JUNE 2016 7.3.8 Thermal Protection Thermal protection on the TPA3113D2 prevents damage to the device when the internal die temperature exceeds 150°C. There is a ±15°C tolerance on this trip point from device to device. When the die temperature exceeds the thermal set point, the device enters into the shutdown state and the outputs are disabled. -
Page 18: Application And Implementation
8.1 Application Information The TPA3113D2 is designed for use in stereo speakers like in TV sets, sound docks, and Bluetooth speakers. The TPA3113D2 can either be configured in stereo or mono mode, depending on output power conditions. - Page 19 8.2.1.2 Detailed Design Procedure 8.2.1.2.1 Ferrite Bead Filter Considerations Using the Advanced Emissions Suppression Technology in the TPA3113D2 amplifier it is possible to design a high efficiency Class-D audio amplifier while minimizing interference to surrounding circuits. It is also possible to accomplish this with only a low-cost ferrite bead filter.
- Page 20 The speaker is both resistive and reactive, whereas an LC filter is almost purely reactive. The TPA3113D2 modulation scheme has little loss in the load without a filter because the pulses are short and the change in voltage is V instead of 2 ×...
- Page 21 Z is 60 kΩ and the specification calls for a flat bass response down to 20 Hz. Equation 3 reconfigured as Equation 2 Z f Submit Documentation Feedback Copyright © 2009–2016, Texas Instruments Incorporated Product Folder Links: TPA3113D2...
- Page 22 The differential input stage of the amplifier cancels any noise that appears on both input lines of the channel. To use the TPA3113D2 with a differential source, connect the positive lead of the audio source to the INP input and the negative lead from the audio source to the INN input.
- Page 23 Power (BTL) 8.2.2 Stereo Class-D Amplifier With BTL Output TPA3113D2 is a very flexible and easy to use Class D amplifier; Therefore the design process is straightforward. Before beginning the design, gather the following information regarding the audio system. •...
- Page 24 Copyright © 2016, Texas Instruments Incorporated Figure 38. Stereo Class-D Amplifier With BTL Output and Single-Ended Inputs With Power Limiting 8.2.3 Stereo Class-D Amplifier With PBTL Output TPA3113D2 also support MONO mode. Before beginning the design, gather the following information regarding the audio system. •...
-
Page 25: Added A 100Kω Resistor To Avcc Pin 14 And Note 1 To Figure 39
PBTL PVCCR PowerPAD PVCC Copyright © 2016, Texas Instruments Incorporated (1) 100-kΩ resistor is needed if the PVCC slew rate is more than 10 V/ms. Figure 39. Stereo Class-D Amplifier With PBTL Output and Single-Ended Input Submit Documentation Feedback Copyright © 2009–2016, Texas Instruments Incorporated... -
Page 26: Power Supply Recommendations
Grounding—The AVCC (pin 7) decoupling capacitor must be grounded to analog ground (AGND). The PVCC decoupling capacitors should connect to PGND. Analog ground and power ground should be connected at the thermal pad, which must be used as a central ground connection or star ground for the TPA3113D2. •... -
Page 27: Layout Example
10.1.1 PCB Material Recommendation TI recommends using FR-4 Glass Epoxy material with 1 oz. (35 μm) for the TPA3113D2. The use of this material can provide for higher power output, improved thermal performance, and better EMI margin (due to lower PCB trace inductance). -
Page 28: Cc = 24 V
TI's Design Support Quickly find helpful E2E forums along with design support tools and contact information for technical support. 11.4 Trademarks SpeakerGuard, PowerPAD, E2E are trademarks of Texas Instruments. All other trademarks are the property of their respective owners. 11.5 Electrostatic Discharge Caution These devices have limited built-in ESD protection. - Page 29 Samples Drawing Ball material (4/5) TPA3113D2PWP ACTIVE HTSSOP RoHS & Green NIPDAU Level-3-260C-168 HR -40 to 85 TPA3113D2 TPA3113D2PWPR ACTIVE HTSSOP 2000 RoHS & Green NIPDAU Level-3-260C-168 HR -40 to 85 TPA3113D2 The marketing status values are defined as follows: ACTIVE: Product device recommended for new designs.
- Page 30 PACKAGE OPTION ADDENDUM www.ti.com 10-Dec-2020 Addendum-Page 2...
- Page 31 PACKAGE MATERIALS INFORMATION www.ti.com 5-Dec-2023 TAPE AND REEL INFORMATION REEL DIMENSIONS TAPE DIMENSIONS B0 W Reel Diameter Cavity Dimension designed to accommodate the component width Dimension designed to accommodate the component length Dimension designed to accommodate the component thickness Overall width of the carrier tape Pitch between successive cavity centers Reel Width (W1) QUADRANT ASSIGNMENTS FOR PIN 1 ORIENTATION IN TAPE...
- Page 32 PACKAGE MATERIALS INFORMATION www.ti.com 5-Dec-2023 TAPE AND REEL BOX DIMENSIONS Width (mm) *All dimensions are nominal Device Package Type Package Drawing Pins Length (mm) Width (mm) Height (mm) TPA3113D2PWPR HTSSOP 2000 350.0 350.0 43.0 Pack Materials-Page 2...
- Page 33 PACKAGE MATERIALS INFORMATION www.ti.com 5-Dec-2023 TUBE T - Tube height L - Tube length W - Tube width B - Alignment groove width *All dimensions are nominal Device Package Name Package Type Pins L (mm) W (mm) T (µm) B (mm) TPA3113D2PWP HTSSOP 10.2...
- Page 34 GENERIC PACKAGE VIEW PWP 28 PowerPAD TSSOP - 1.2 mm max height SMALL OUTLINE PACKAGE 4.4 x 9.7, 0.65 mm pitch This image is a representation of the package family, actual package may vary. Refer to the product data sheet for package details. 4224765/B www.ti.com...
- Page 38 TI products. TI’s provision of these resources does not expand or otherwise alter TI’s applicable warranties or warranty disclaimers for TI products. TI objects to and rejects any additional or different terms you may have proposed. IMPORTANT NOTICE Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2023, Texas Instruments Incorporated...
